Chevrolet Colorado/GMC Canyon ReTrax XR 5in (2015-Current) Triple Load Bar Kit
Chevrolet Colorado/GMC Canyon ReTrax XR 5in (2015-Current) Triple Load Bar Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

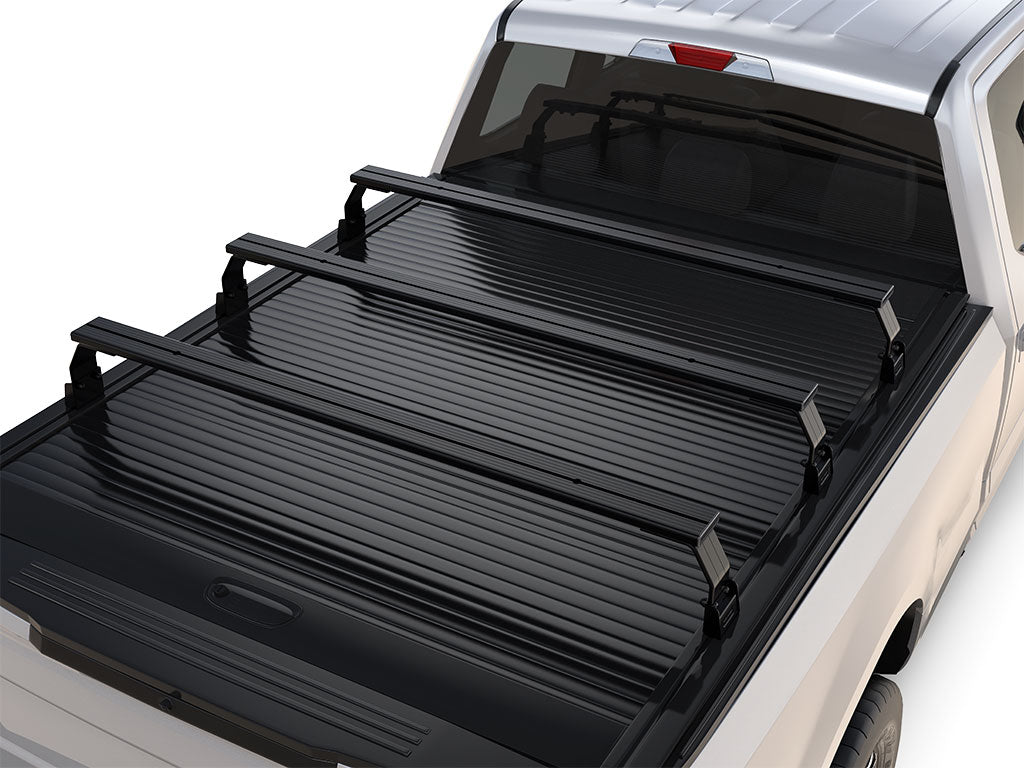

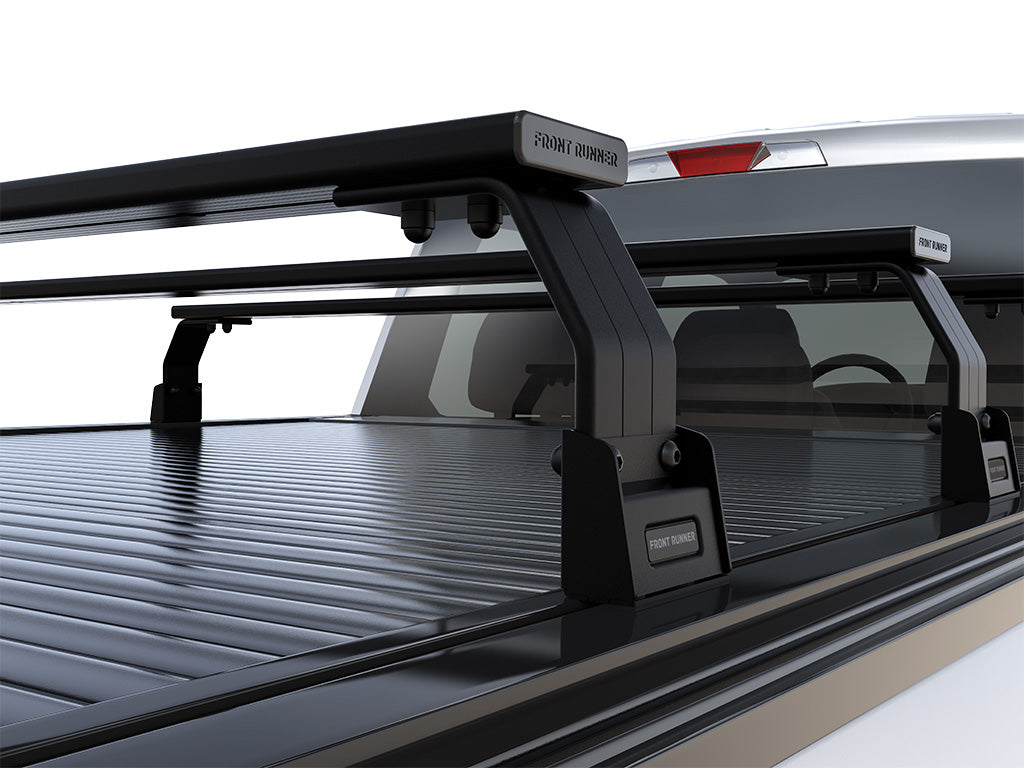

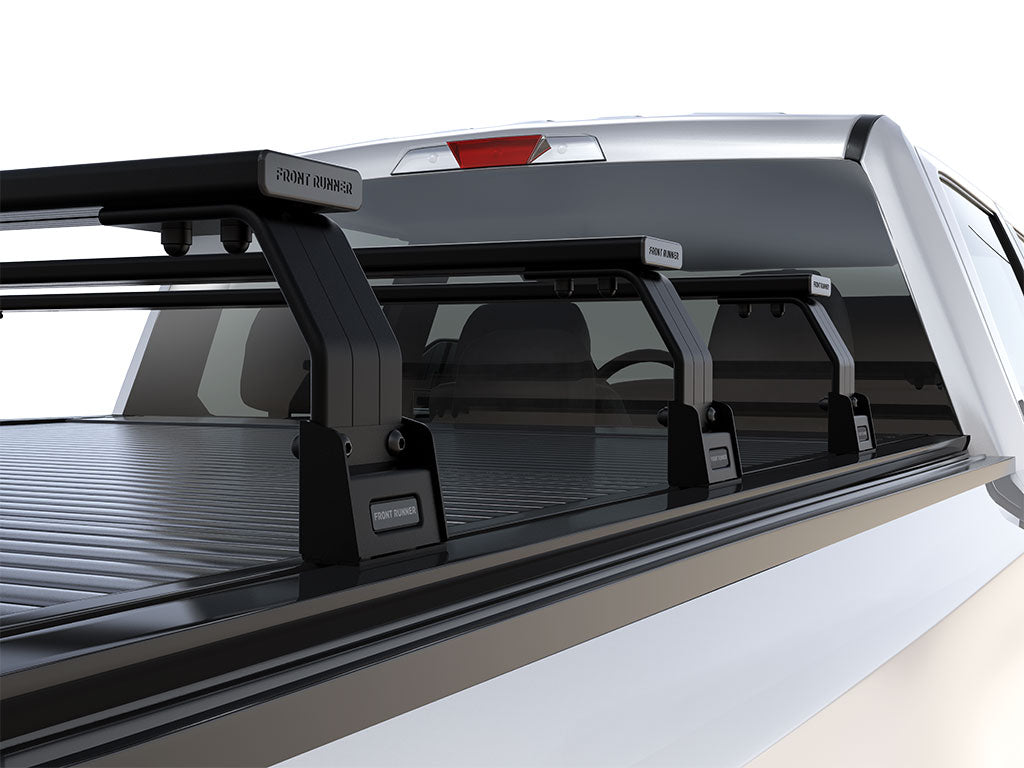

- The Load Bars are mounted via Pickup Roll Top Load Mounts that bolt directly into the existing ReTrax XR rails.
- Allows for gear to be mounted above the pickup’s load bed.
- The load bed retains its load-carrying ability, while the drop down door functions as usual.
- Uses the same strong, corrosion-free aluminum slats found in Front Runner Racks.
- The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.
- Made from steel and a durable, weather-resistant black powder coated aluminum.
- Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

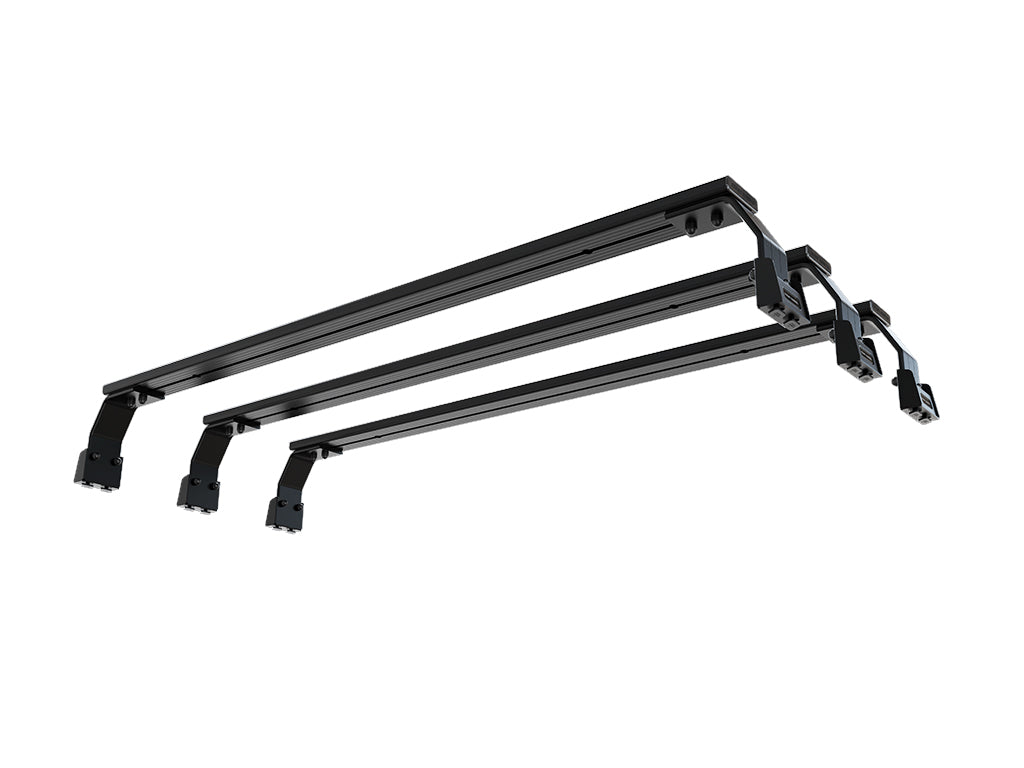

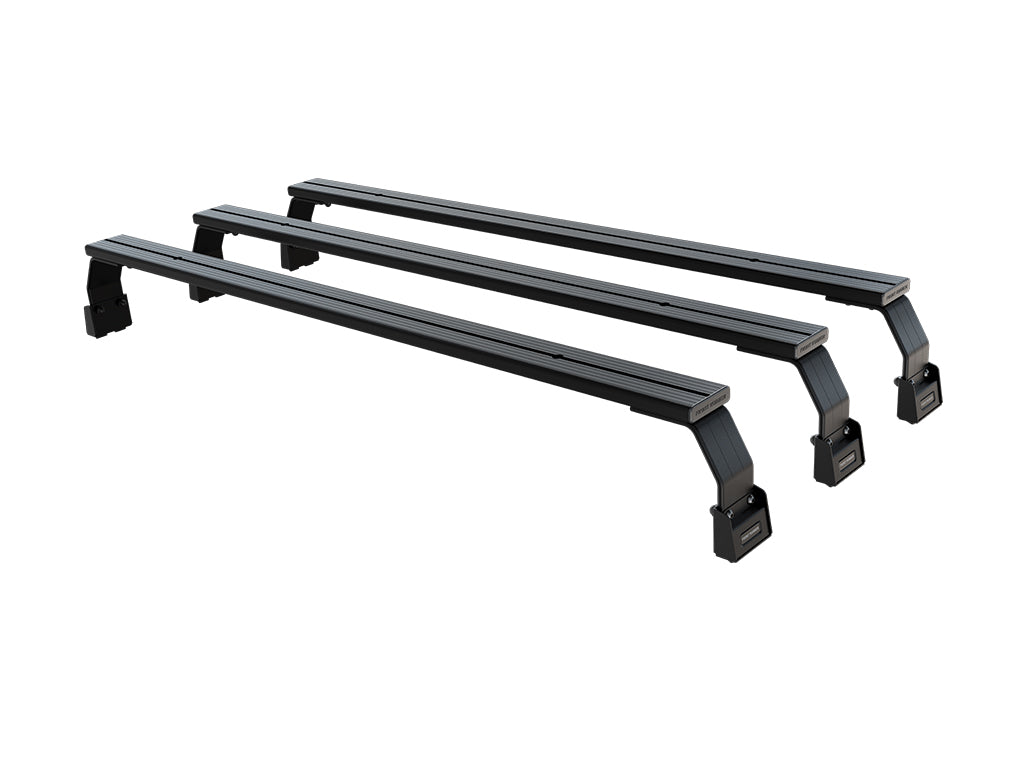

KRCC001 - Chevrolet Colorado/GMC Canyon ReTrax XR 5" (2015-Current) Triple Load Bar Kit - by Front Runner
3x LASS028 - Pick-Up Roll Top Leg Mount
1x LBSK020 - Roof Load Bar Set 1425mm(W)
Black epoxy powder - coated T6 aluminium
Approximate Installed Weight: 8kg (17.64lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

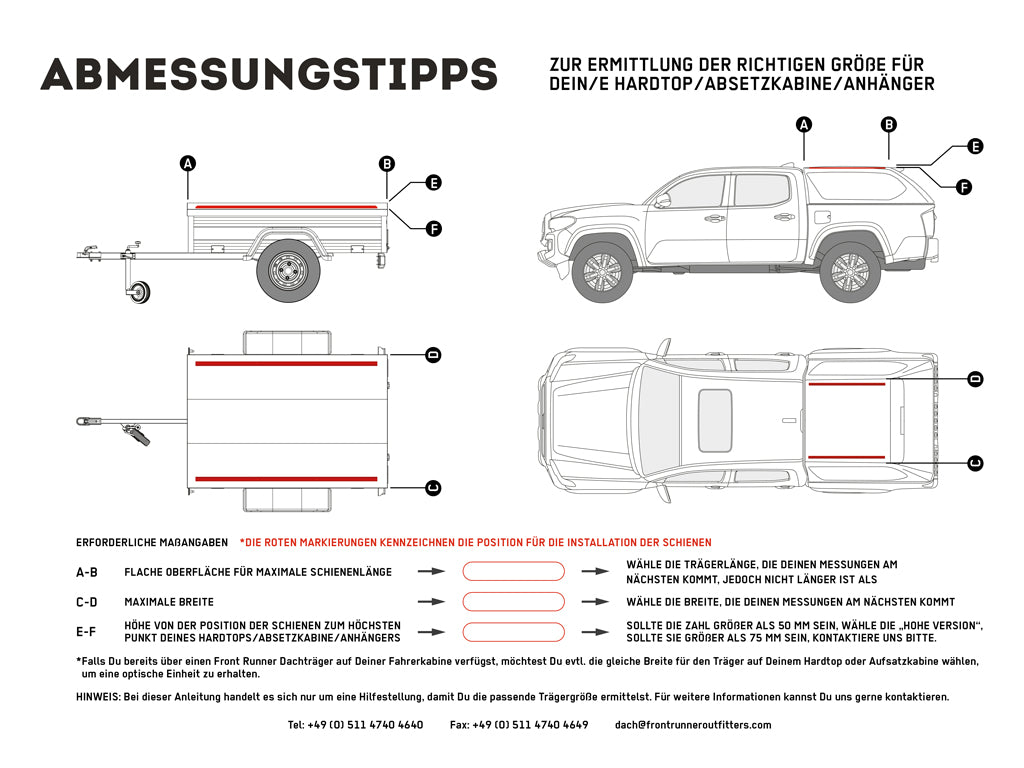

To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Width: 160mm (6")
Length: 1560mm (61")
Height: 230mm (9")
Weight: 12kg (26lbs)
