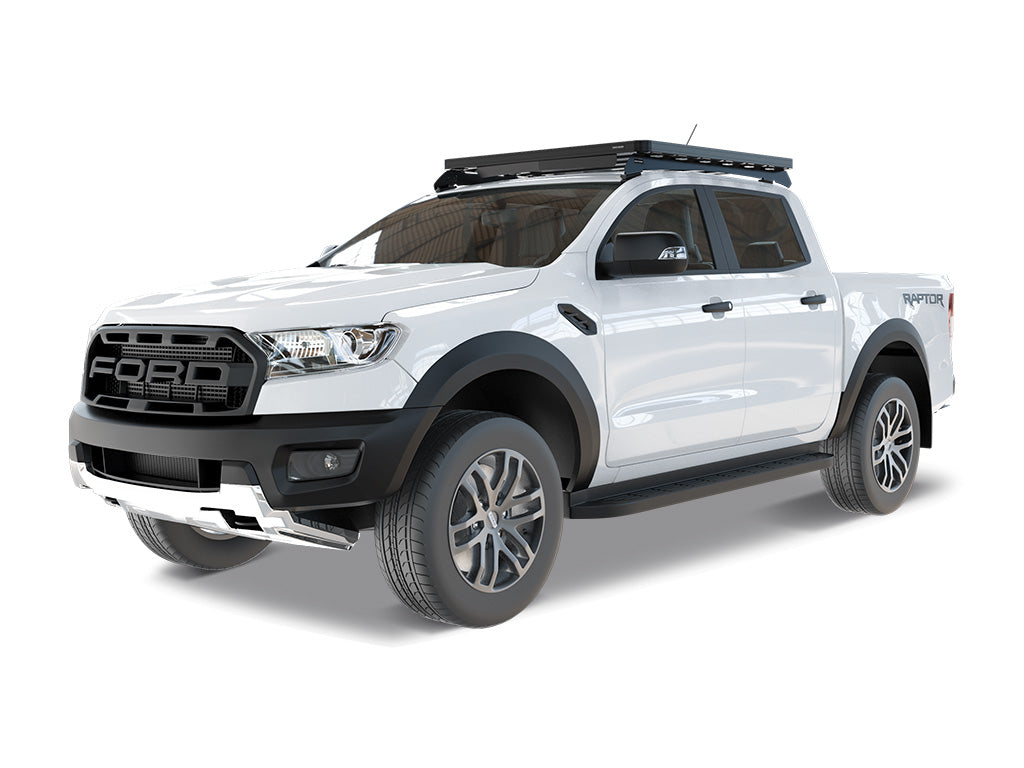

Ford Ranger Raptor (2019-2022) Slimline II Roof Rack Kit / Low Profile
Ford Ranger Raptor (2019-2022) Slimline II Roof Rack Kit / Low Profile is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

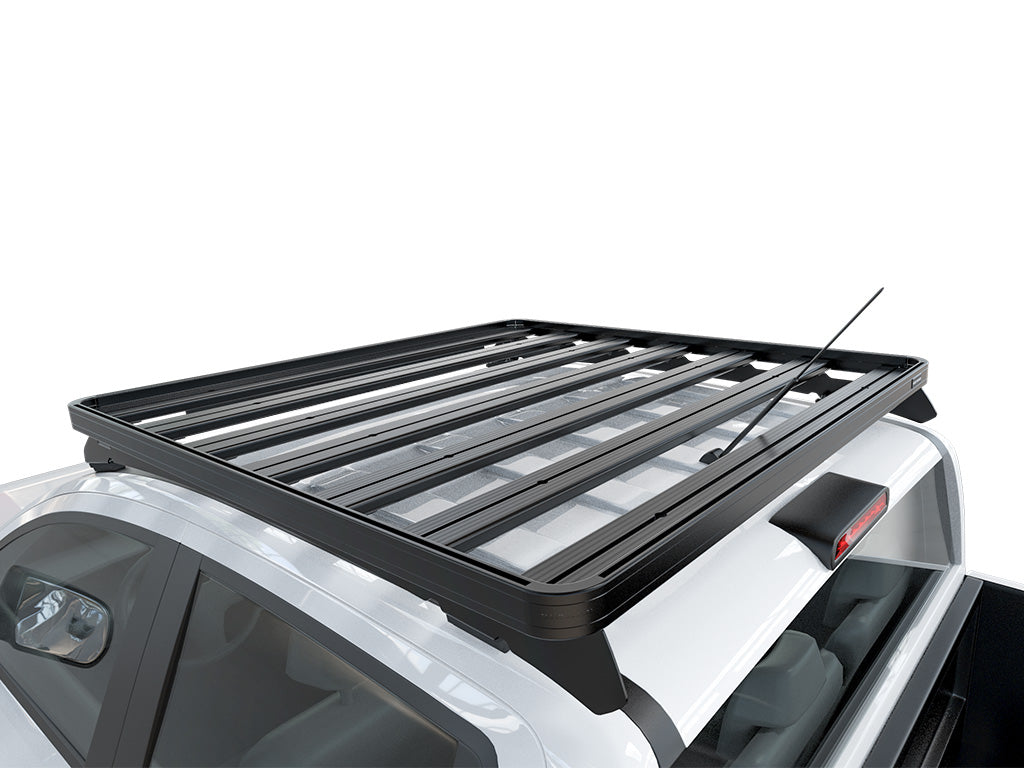

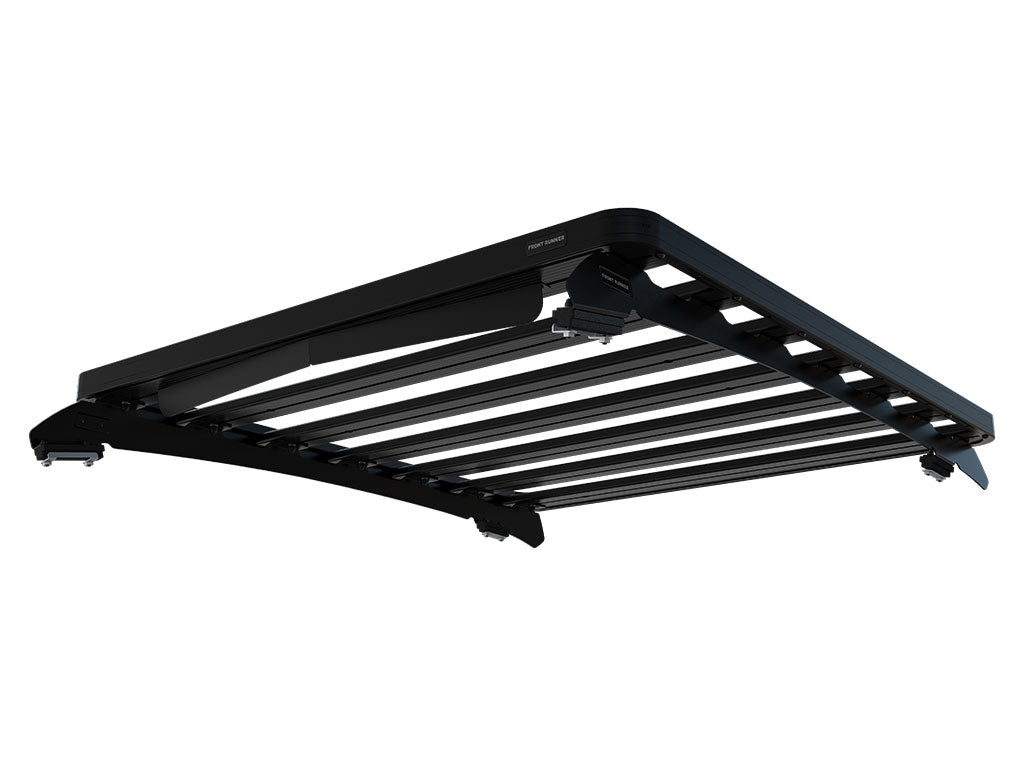

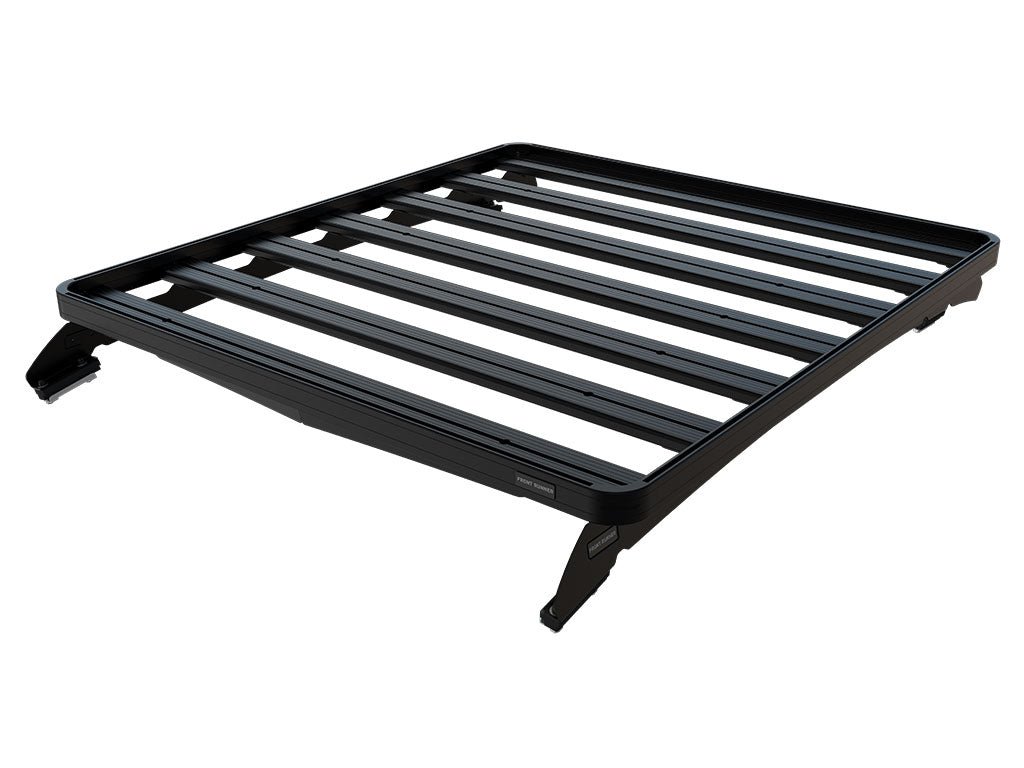

This 1358mm/53.5” long, full-size Slimline II Cargo Roof Rack kit contains the Slimline II Tray, Wind Deflector and two (2) low-profile Foot Rails to mount the Slimline II Tray.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Front Runner Racks are backed by a limited lifetime warranty*
For further information on installation, please see the Fitment Guide in the Install tab.
Drilling is required for installation.
Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.
KRFR013T - Ford Ranger T6 / Wildtrak / Raptor (2019-2022) Slimline II Roof Rack Kit / Low Profile - by Front Runner

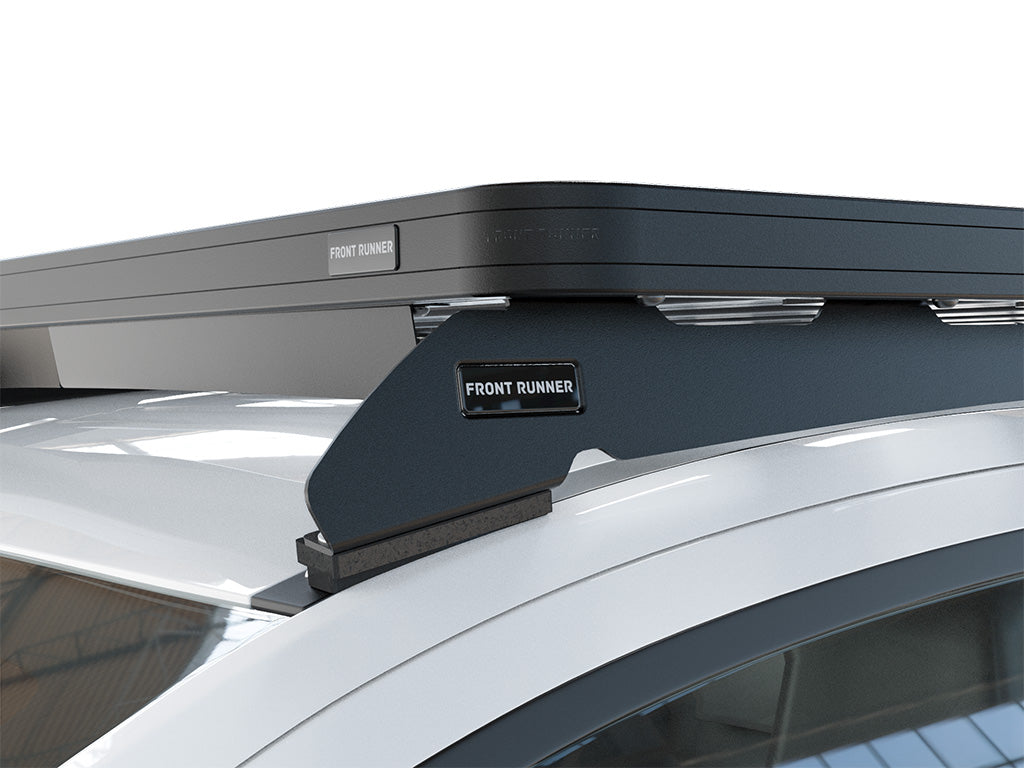

1x FAFR006 - Ford RangerT6/Wildtrak/Raptor(12-Curr)Foot Rails
1x RRSTD07 - SLII Tray - 1255mm(W)X1358mm(L)
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 28.87kg (63.65lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Width: 445mm (18")
Length: 1720mm (68")
Height: 250mm (10")
Weight: 29.4kg (65lbs)
