Front Runner

KSFR006T

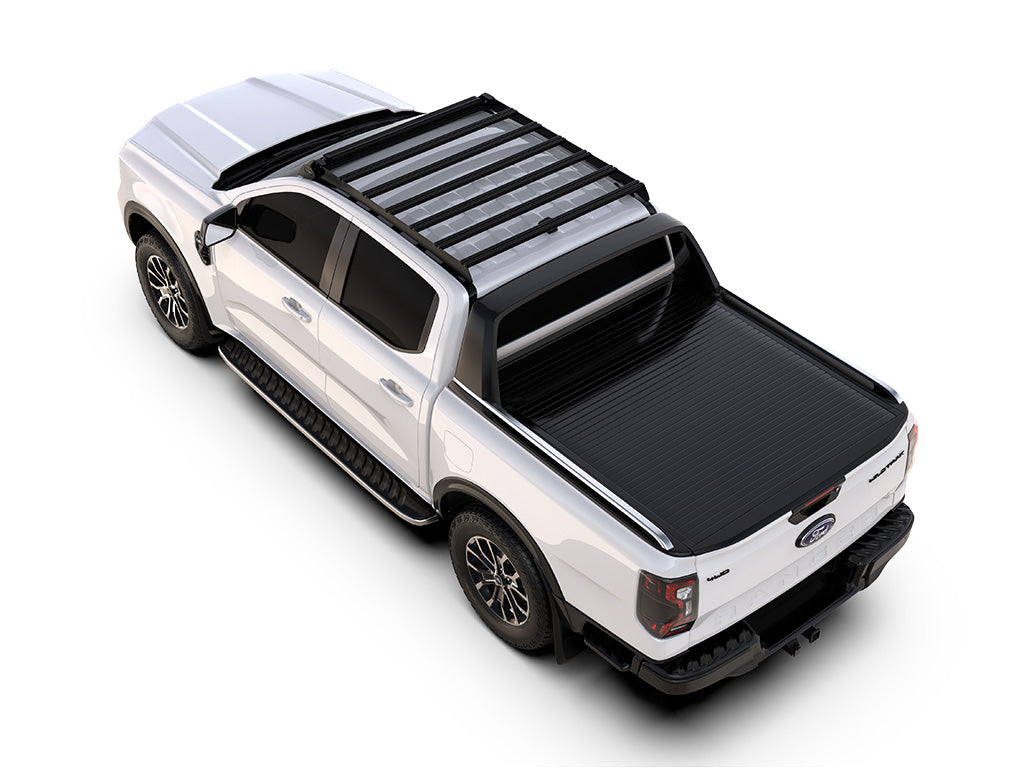

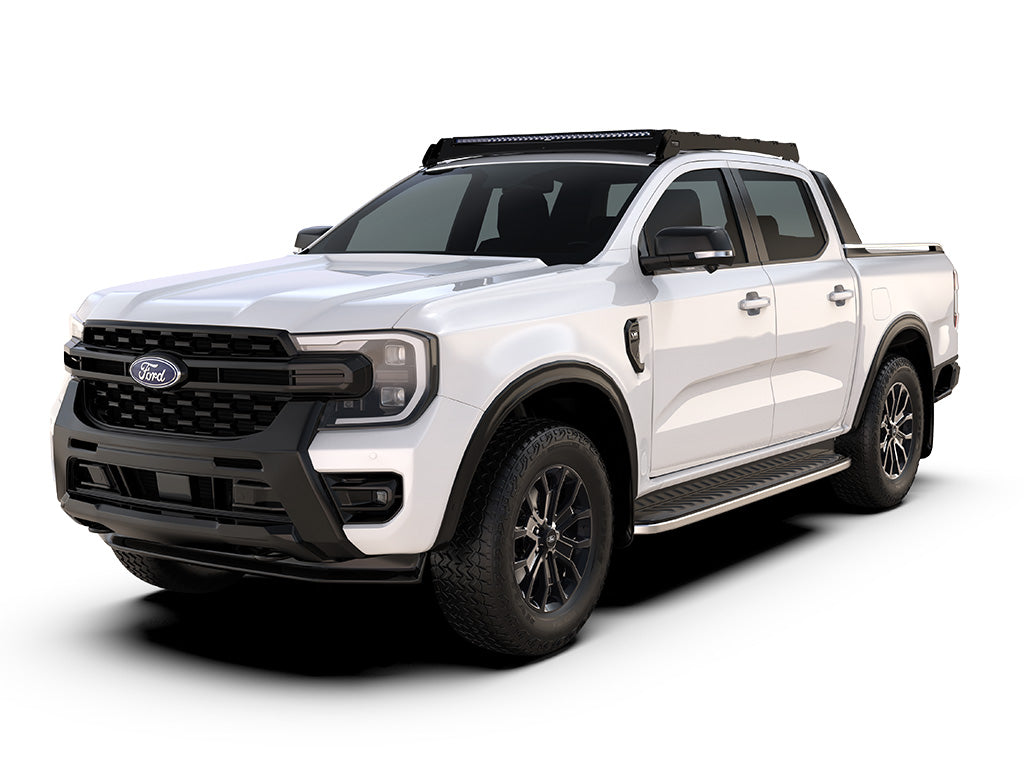

Ford Ranger T6.2 Double Cab (2022-Current) Slimsport Roof Rack Kit / Lightbar Ready

$729.00 $838.35 You Save 13% ($109.35)

• Description
• Specs
• Install
• Video

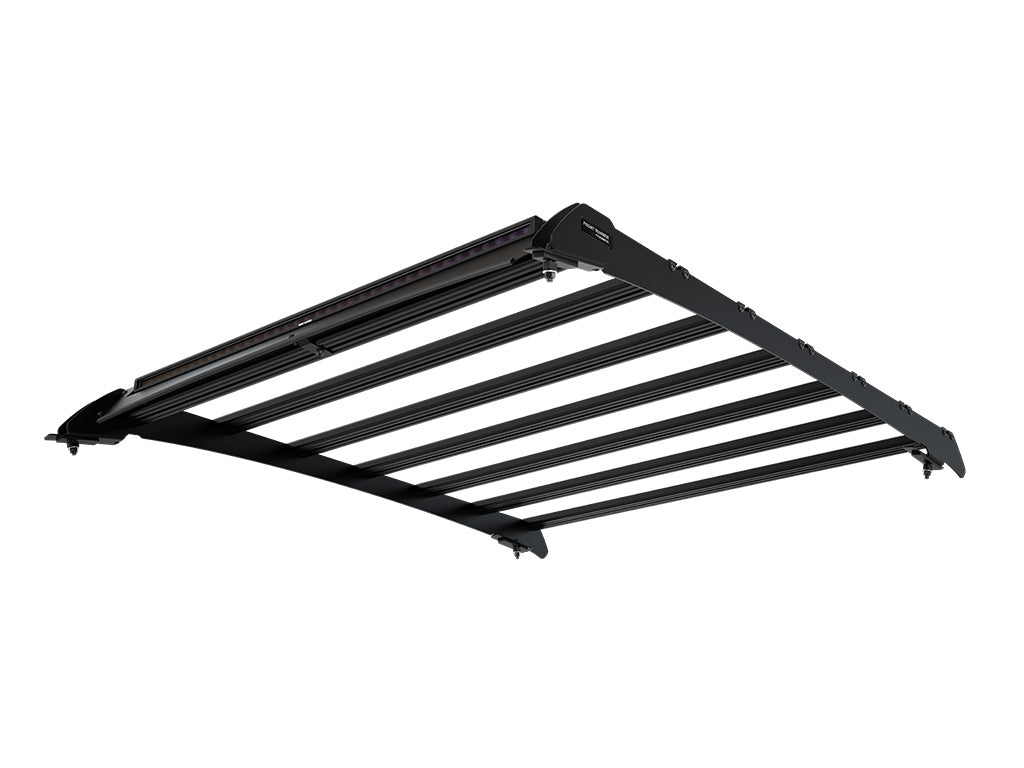

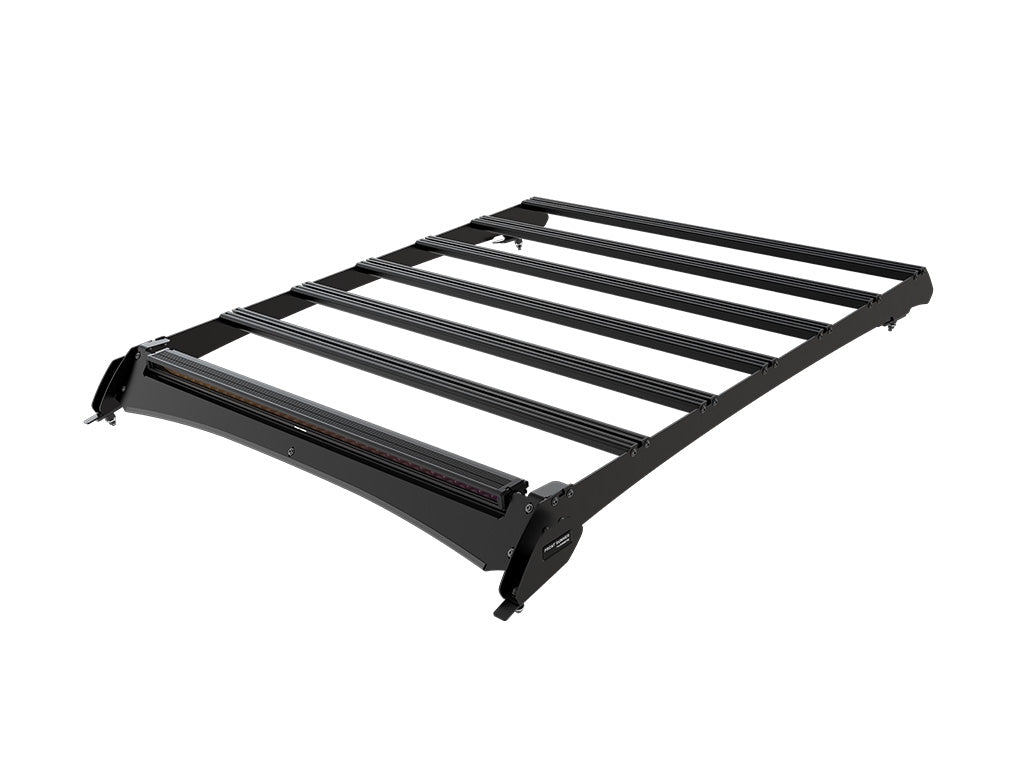

• • This low profile flat deck Slimsport rack has a load carrying area of 1468mm (57.8") x 1233mm (48.5").
  • The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
  • The high strength aluminum slats have T slots suitable for all Front Runner top mount accessories.
  • Easily add on the Slimsport/Slimpro Van Side Mount Accessory Bracket / Small for most Front Runner side mount accessories (sold separately).

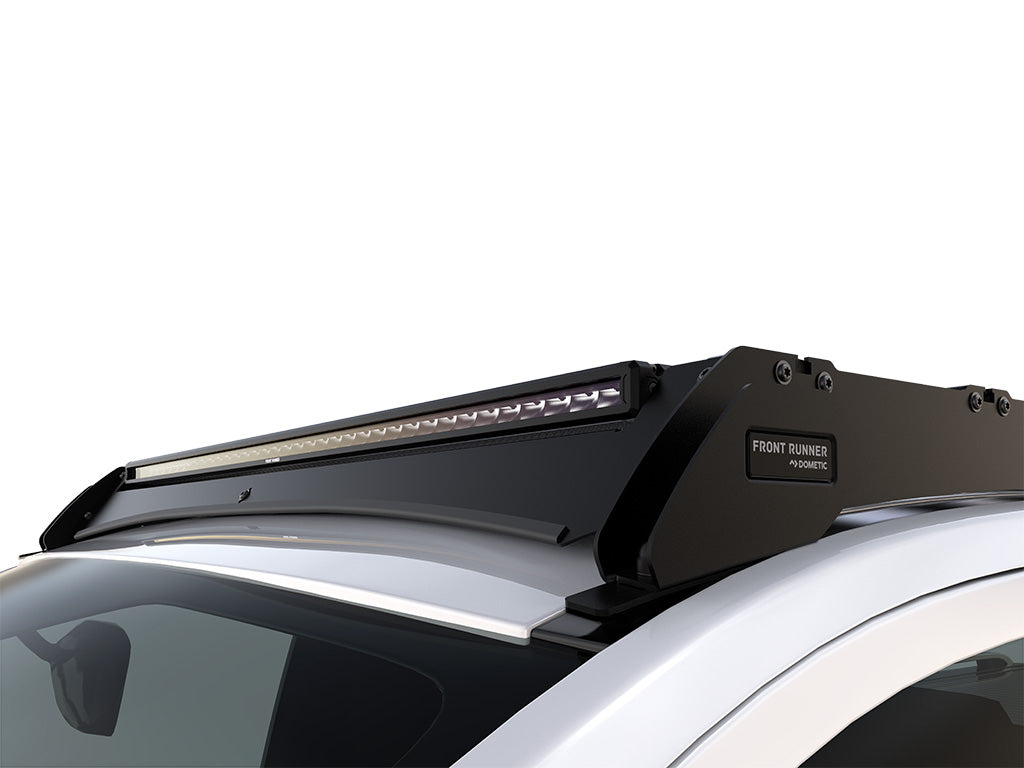

  • The included 40" Light Bar wind fairing with rubber edge trim, makes the rack ultra quiet.
  • Included is the Ford Ranger T6.2 Double Cab (2022 Current) Slimsport Rack 40" Light Bar Wind Fairing Ford Ranger T6.2 Wildtrak/Raptor Double Cab (2022 Current) Slimsport Rack 40" Light Bar Wind Fairing with a 40" cutout to allow the use of the 40" LED Slim Light Bar VX1000 CB SM / 12V/24V / Single Mount (sold separately).
  • Fitment guide and all mounting hardware included.
  • 6"/T30 Torx Allen Key for Slimsport Rack is required for installation.
  • Note: Drilling required.
  • Note: Under Rack Tables and some side mount accessories such as Hi Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport Tray range.
  All Front Runner Racks are backed by a Limited Lifetime Warranty*

• KSFR006T - Ford Ranger T6.2 Wildtrak/Raptor Double Cab (2022-Current) Slimsport Roof Rack Kit / Lightbar Ready

  Consisting of:
  1x KSFR005 - Ford Ranger T6 Double Cab (22-Curr) Slimsport Roof Rack Kit
  1x RRAC250 - Ford Ranger T6 Double Cab (22-Curr) Slimsport 40" Lightbar Wind Fairing
  1x RRAC971 - Protection Strip

  Material Used:
  Black epoxy powder - coated T6 aluminium
  High strength steel

  Assembled Tray Dimensions:
  1468mm (57.8") L x 1233mm (48.5") W x 139mm (5.5") H

  Approximate Installed Weight: 27.16kg (59.88lbs)

  The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

  To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

  Shipping Dimensions:
  Width: 330mm (13")
  Length: 1700mm (67")
  Height: 210mm (8")

  Shipping Weight:
  Weight: 27.16kg (60lbs)

• Installation Instructions for KSFR005 (EN)



  View / Download

  • Language: EN
  • Filename: F_KSFR005.pdf
  • Filesize: 2.2 M

  Installation Instructions for RRAC250 (EN)



  View / Download

  • Language: EN
  • Filename: F_RRAC250.pdf
  • Filesize: 2.2 M

  Installation Instructions for RRAC971 (EN)



  View / Download

  • Language: EN
  • Filename: F_RRAC971.pdf
  • Filesize: 2.34 M

  *A PDF viewer is required to view the fitting instructions.
