Front Runner

KRGC002T

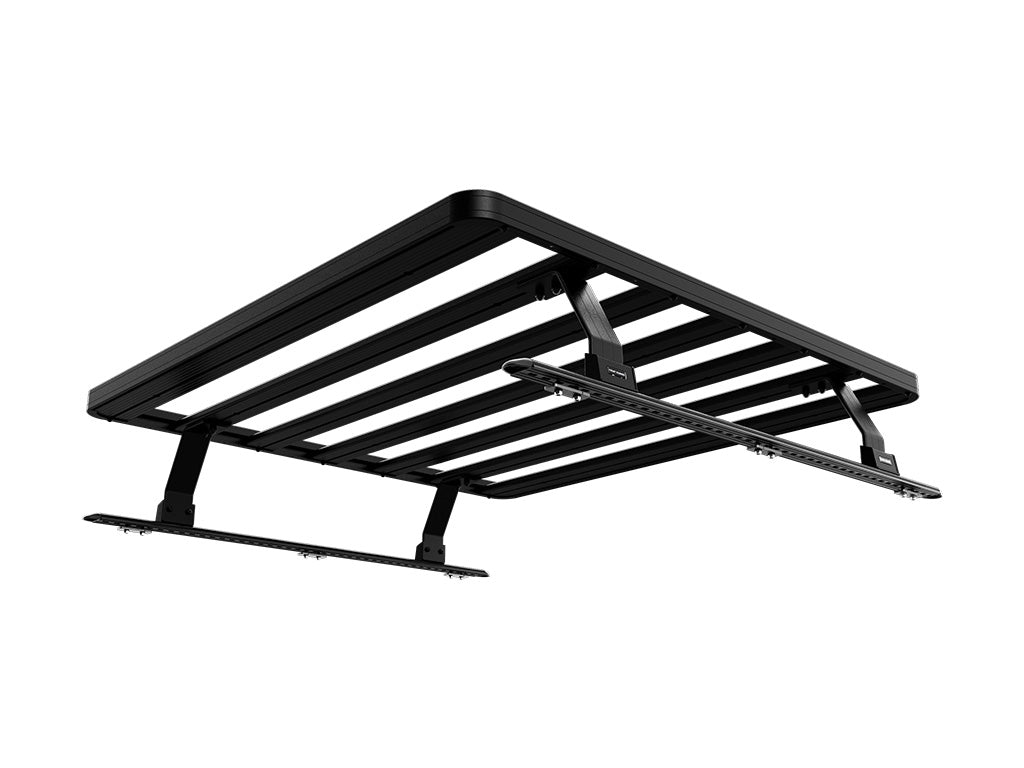

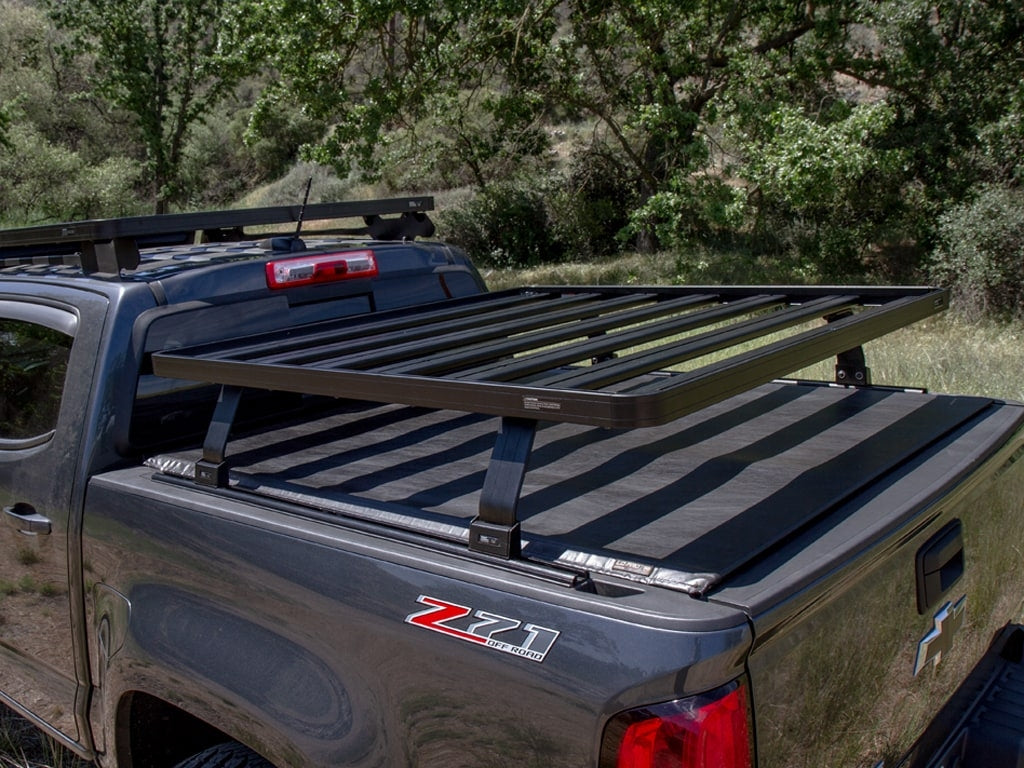

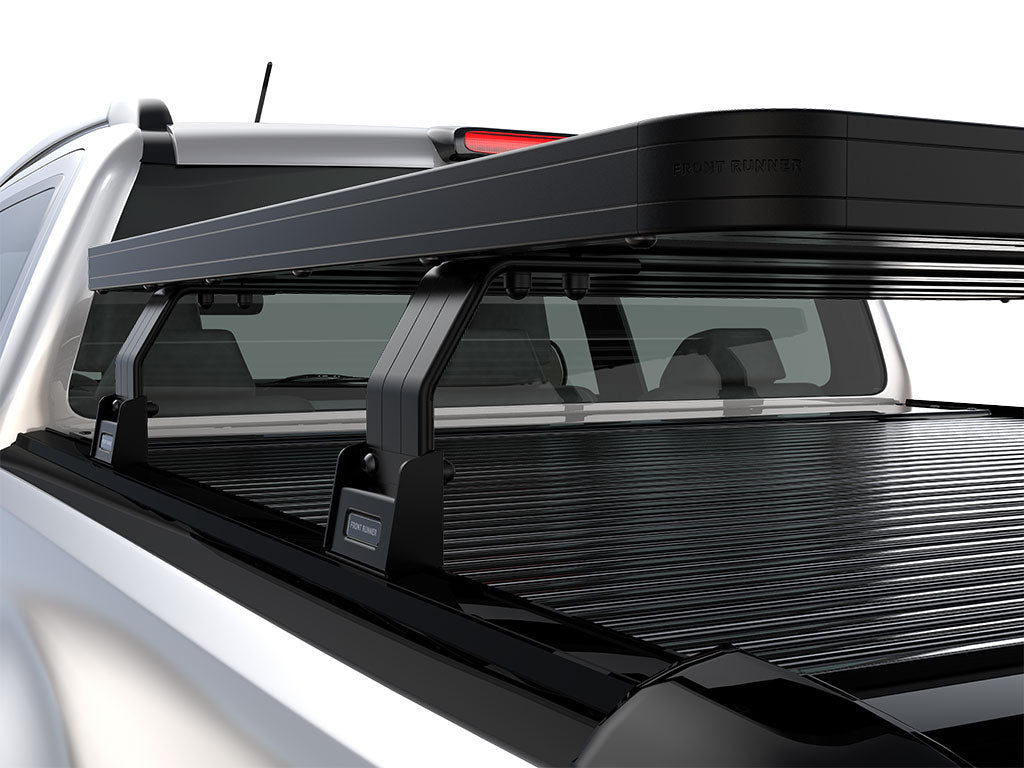

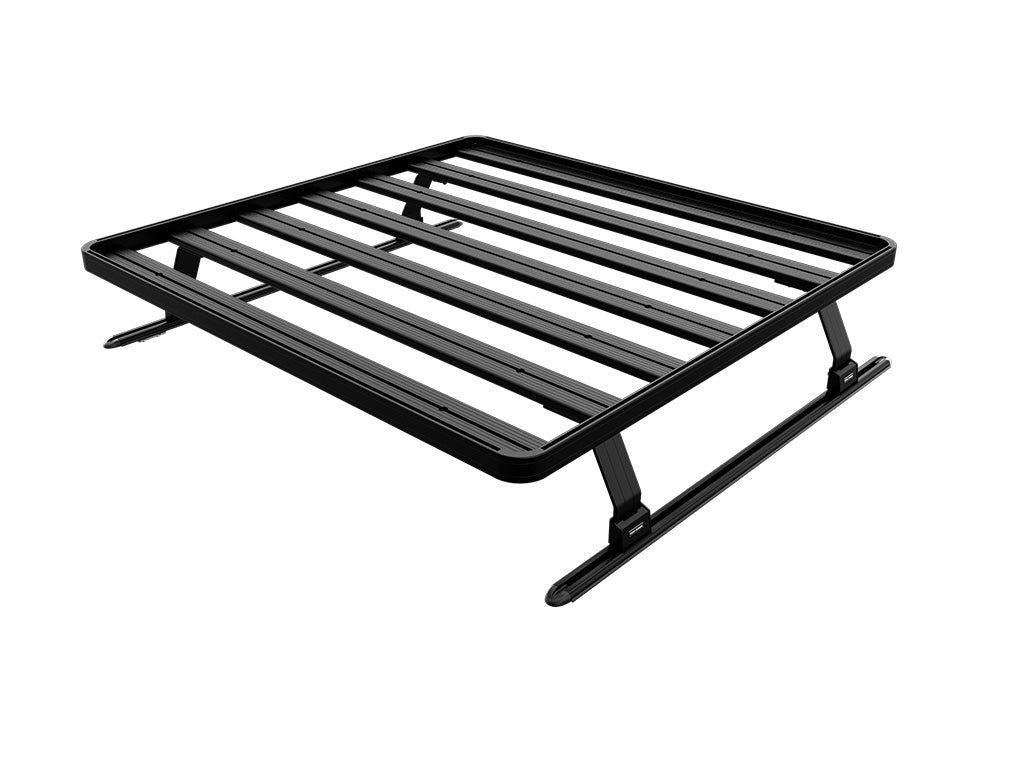

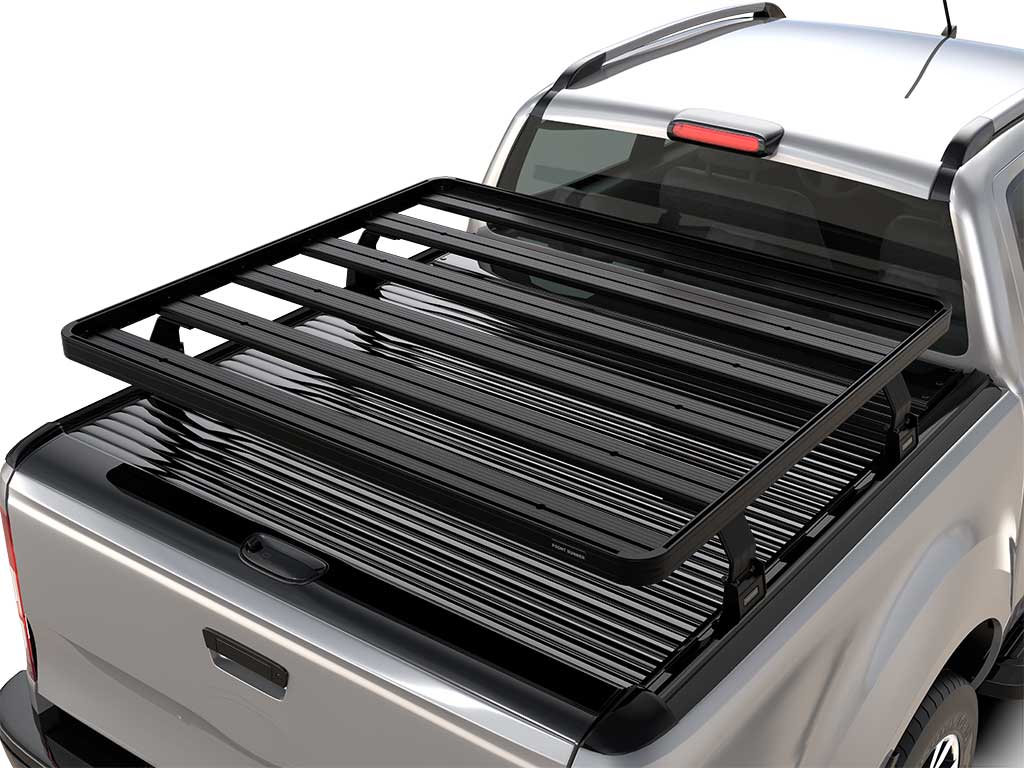

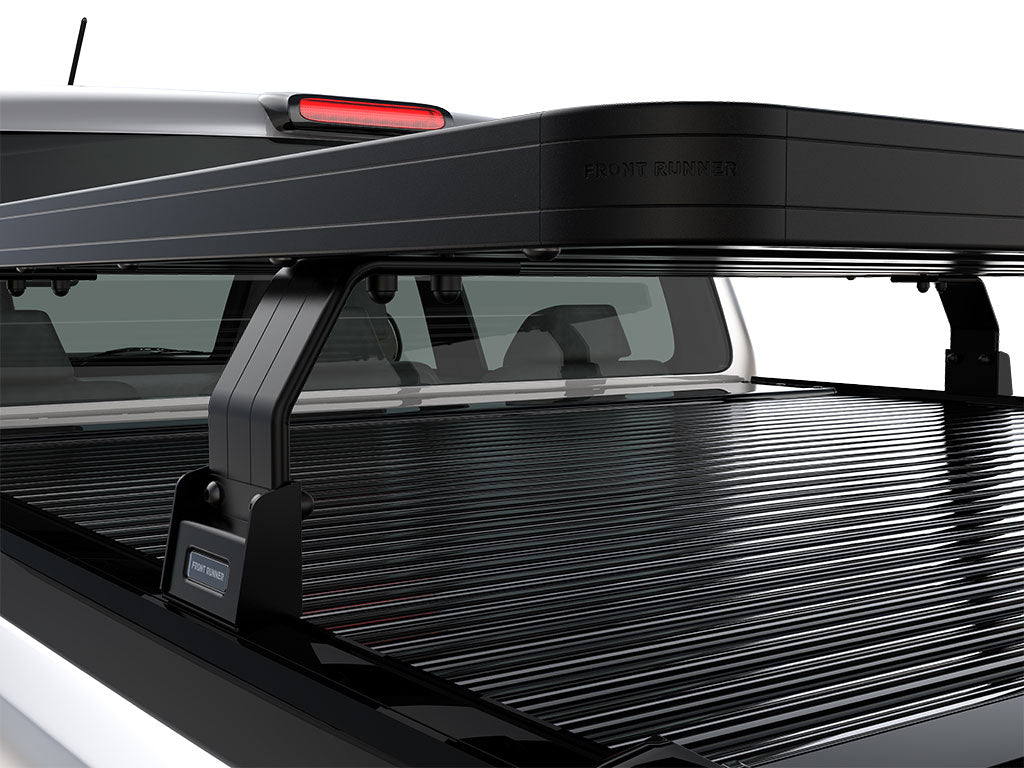

GMC Canyon Roll Top 5.1' (2015-Current) Slimline II Load Bed Rack Kit

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.All Front Runner Racks are backed by a Limited Lifetime Warranty*Drilling may be required to mount the track to the bed of your truck. See the track and leg installation instructions in the INSTALL tab for further details

  • KRGC002T - GMC Canyon Roll Top 5.1' (2015-Current) Slimline II Load Bed Rack Kit - by Front Runner

    Consisting of:

    2 x LASS026 - Universal Load Bed Leg / Tall (Pair) - by Front Runner
    2 x LASS028 - Pick-Up Roll Top Leg Mount - by Front Runner
    1 x RRAC902 - Load Bed Bolt Kit- Ford F150 2004-2014
    1 x RRSTJ07 - Slimline II Tray - 1425mm(W) X 1358mm(L) - by Front Runner
    1 x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L) - by Front Runner

     Material used:

    Black epoxy powder-coated T6 aluminium
    3CR12Stainless Steel

    Approximate Installed Weight 30kg (65lbs)

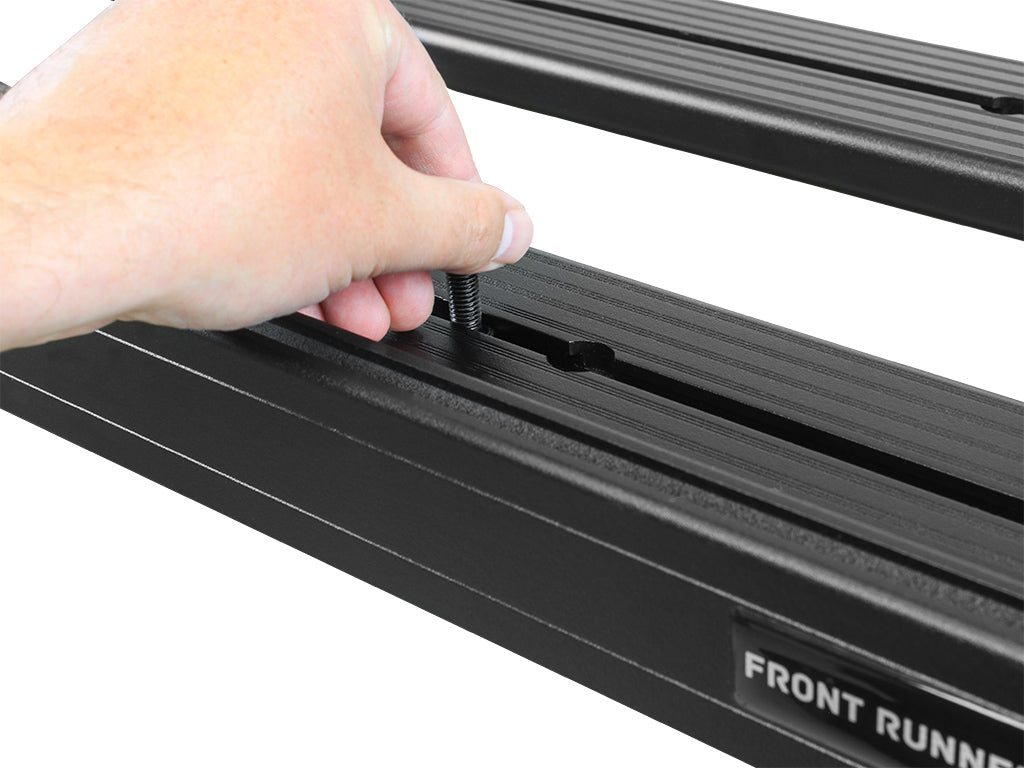

    The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

    To determine the approximate height from your vehicle's roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

    If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

    If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

     Shipping Dimensions:

    Width 455mm (18")
    Length 1620mm (64")
    Height 280mm (11")


    Shipping Weight:

    Weight 34.5kg (75.9lbs)


  • *A PDF viewer is required to view the fitting instructions.
