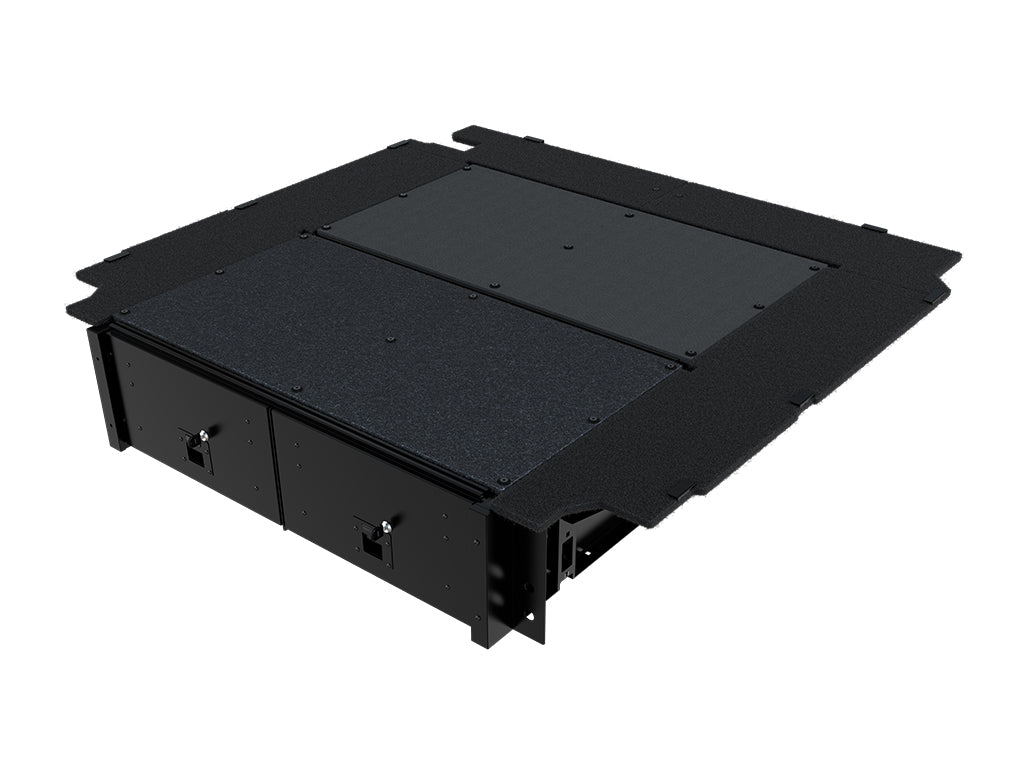

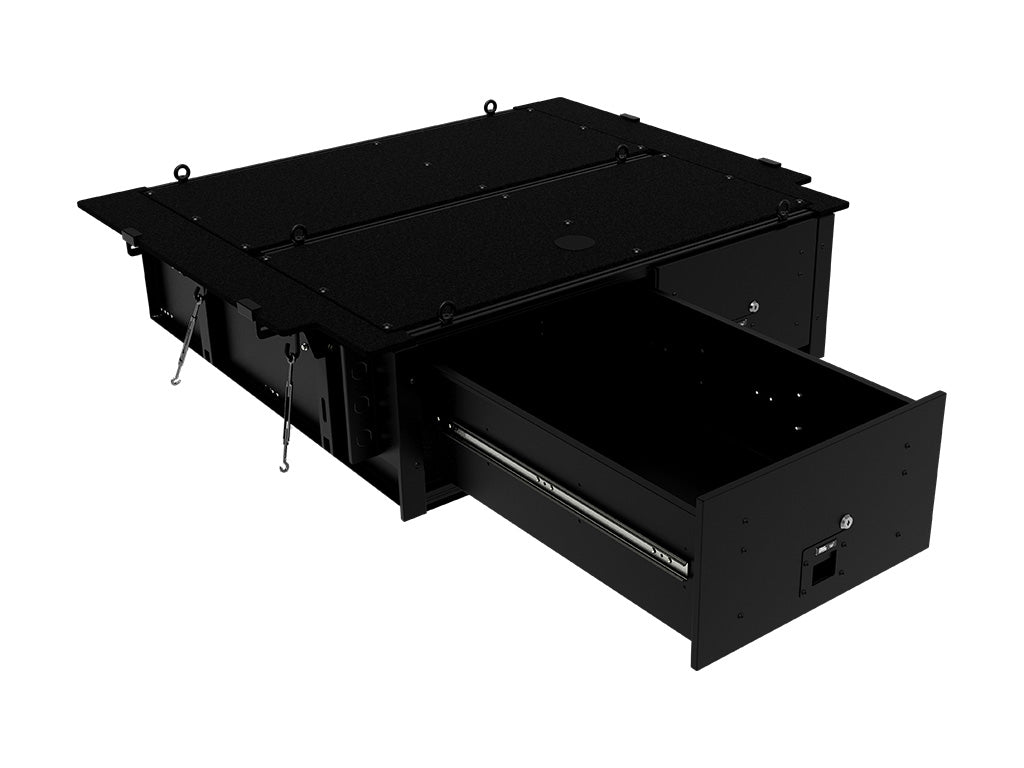

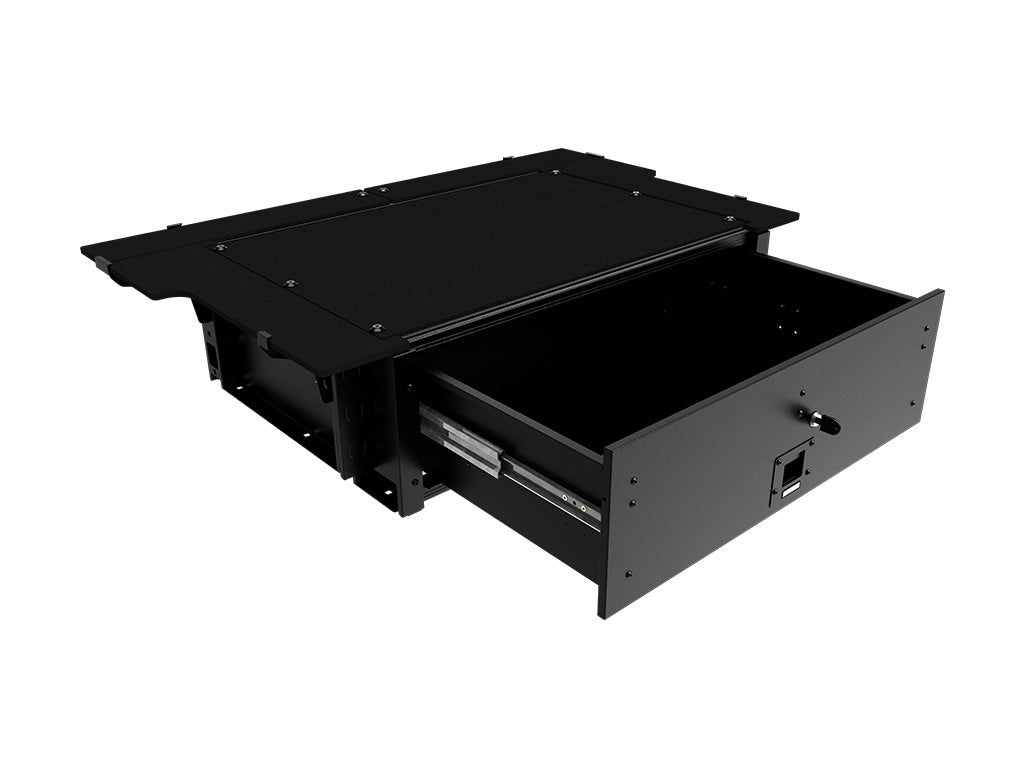

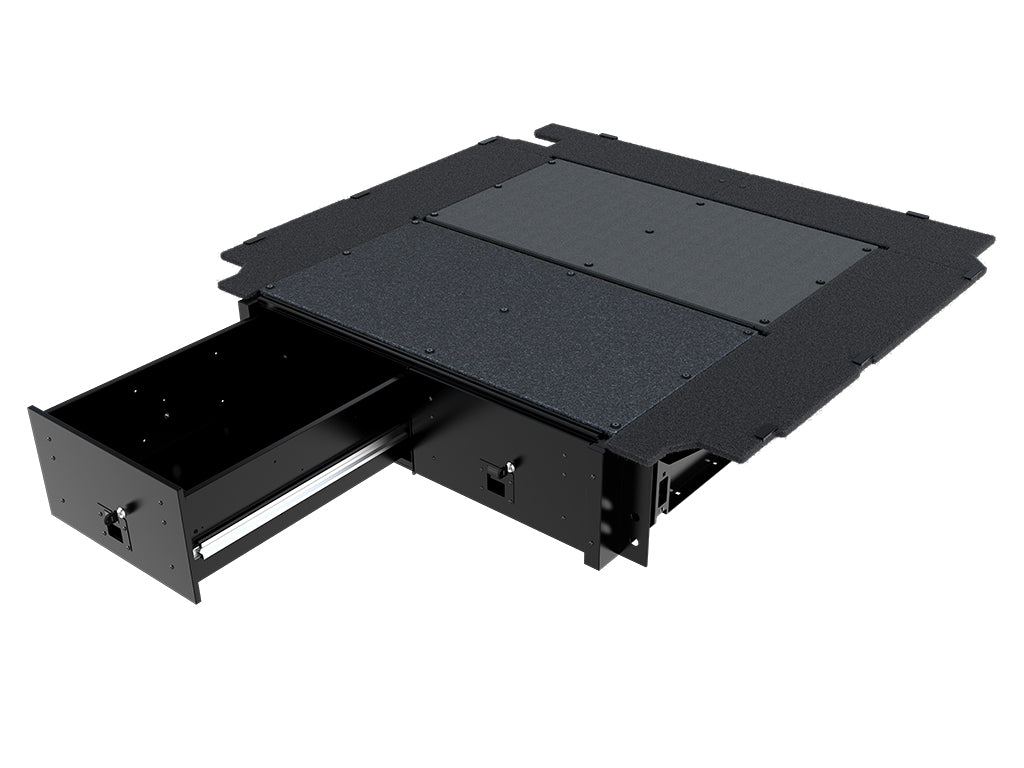

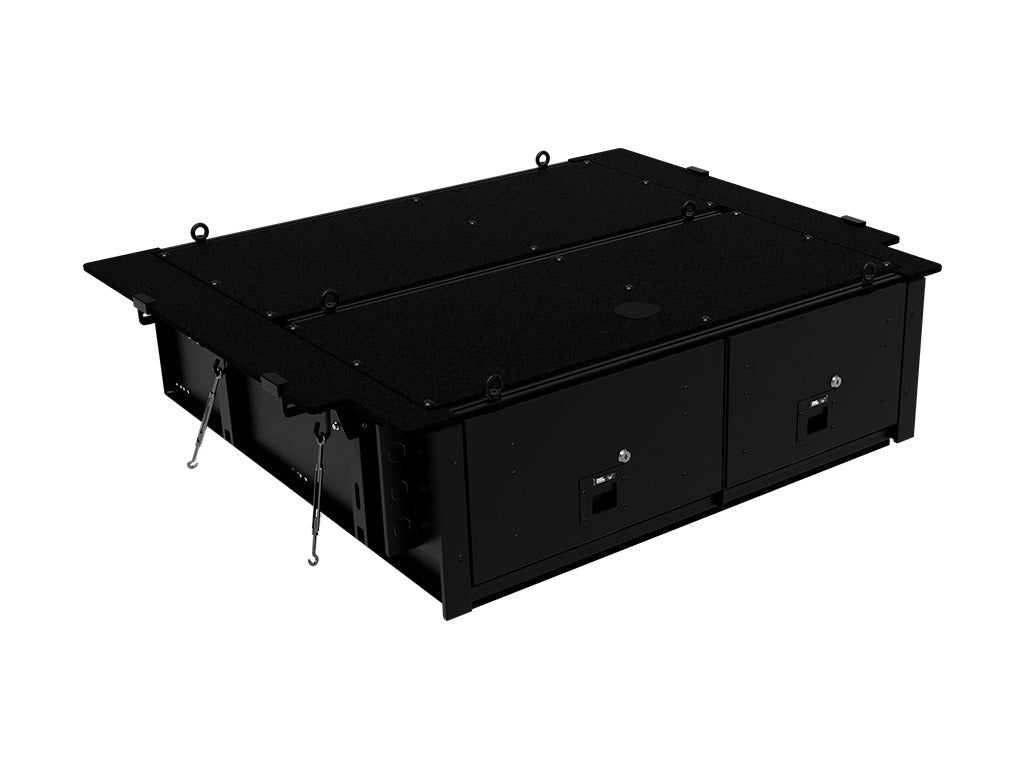

This drawer kit has 2 lockable drawers, 2 keys per lock, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions. 113kg / 250 lb per drawer load carrying capacity. High-strength bearing slides allows each drawer to extend nearly 100% from the anchored base. Provide peace of mind and security by locking away important travel items such as computers, smart phones and camera gear. The flat deck incorporates three cargo attachment channels and 6 Black Tie Down Rings - by Front Runner. Customize your own storage configurations. Stack and secure luggage, Wolf Pack - by Front Runner, Cub Pack - by Front Runner, aluminum boxes and other storage containers to the top deck using Stratchits - by Front Runneror other straps. The deck above the drawers can also be used to mount Front Runner Cargo / Fridge Slides. The side decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc. To create a removable box option, use Cub Pack - by Front Runner or Flat Pack - by Front Runner inside the drawers. The Cub Pack - by Front Runner or Flat Pack - by Front Runner can be used to further organize and easily move gear in and out of a vehicle. To create compartments within the drawers, add the optional steel Drawer Dividers - by Front Runner. Helps organize and stop excessive movement of gear and supplies. Sold in pairs, these drawers can accommodate up to 4 dividers per drawer. The deck is covered with a durable, UV resistant nylon pile black carpet detailed to complement the vehicles interior contours. The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration. Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products. This drawer kit can be easily installed in minutes by attaching the supplied carabiners and turnbuckles to the vehicles existing mounting points and the drawer mounting brackets. Removing the drawers is just as easy. The LAND ROVER DISCOVERY LR3 AND LR4 DRAWER KIT allows access to the spare wheel winder through an access ''port'' in the top deck. There is no need to remove the drawers to lower the spare.All Front Runner Storage Systems are backed by a 2 year warranty.*Please Note: Cub Packs, Flat Packsand Drawer Dividers are not included when purchasing this Drawer System and are sold separately.
- Consists of:
1 x Front Runner Drawer unit (SSDR002)
1 x Land Rover Discovery LR3 & LR4 Drawer Deck Completion Set
2 x Push to Close latch with 2 keys per lock
3 x Accessory Channels
6 x Eye Nuts for Accessory Channel
1 x T Wrench with 2 custom sockets for wheel winder
Installation Hardware including 4 turnbuckles to secure unit to vehicle
Aluminum - Accessory Channels & Sub Frame
Black powder coated steel - Drawer Bins & Frame
Carpet & Laminated plywood - Top Deck & Deck Set
972mm (38.3") L x 1230mm (48.4") W x 328mm (12.9") H
1896mm (74.7") L x 1230mm (48.4") W x 328mm (12.9") H
Interior Drawer Dimensions:
Left Hand Drawer:
914mm (36") L x 461mm (18.2") W x 208mm (8.2") H
Right Hand Drawer:
914mm (36") L x 373mm (14.7") W x 208mm (8.2") H
113Kg (250lbs) per Drawer
Supplied with a T-wrench and 2 custom sockets for operating the wheel winder through the drawer system.
*A PDF viewer is required to view the fitting instructions.
