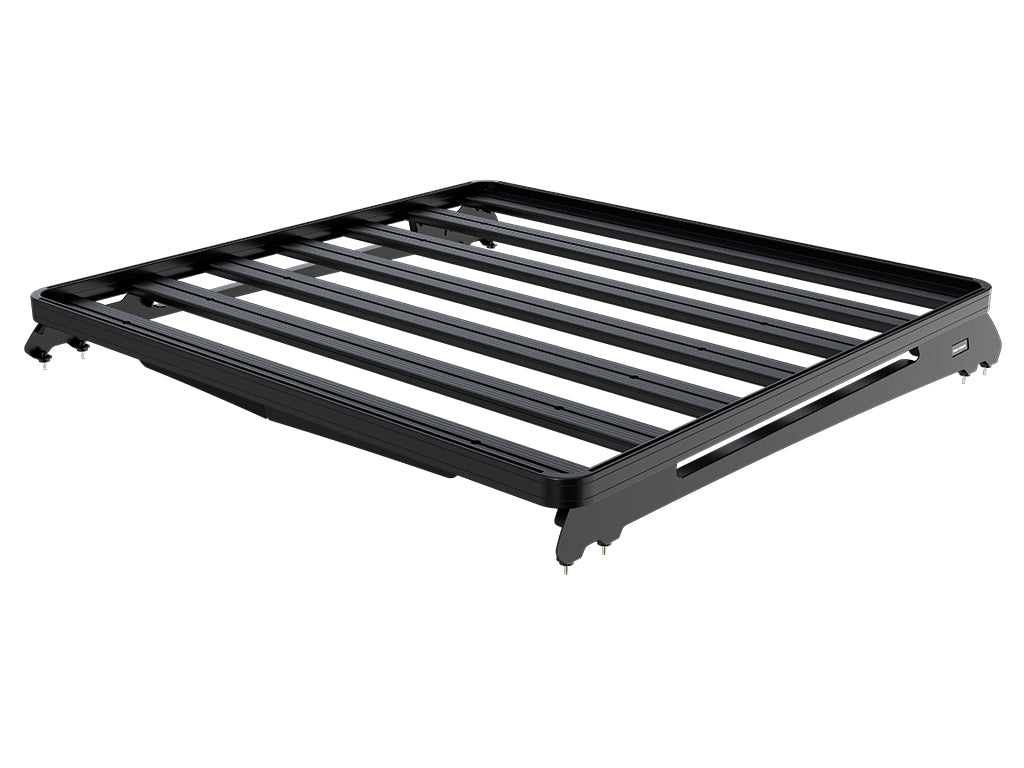

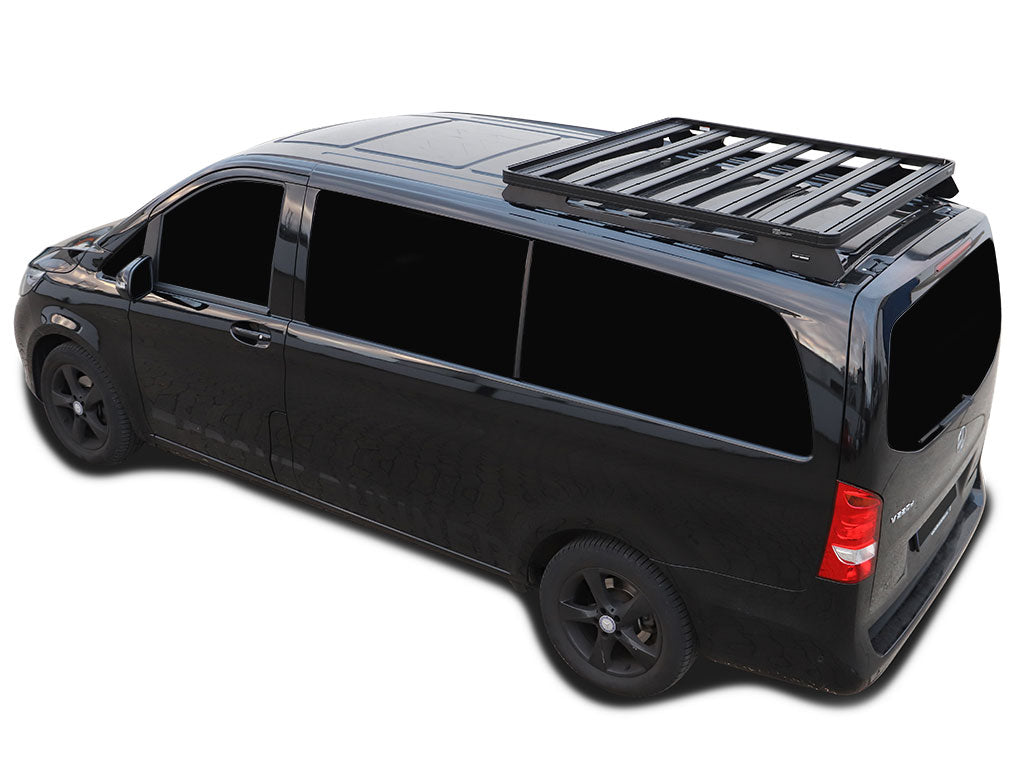

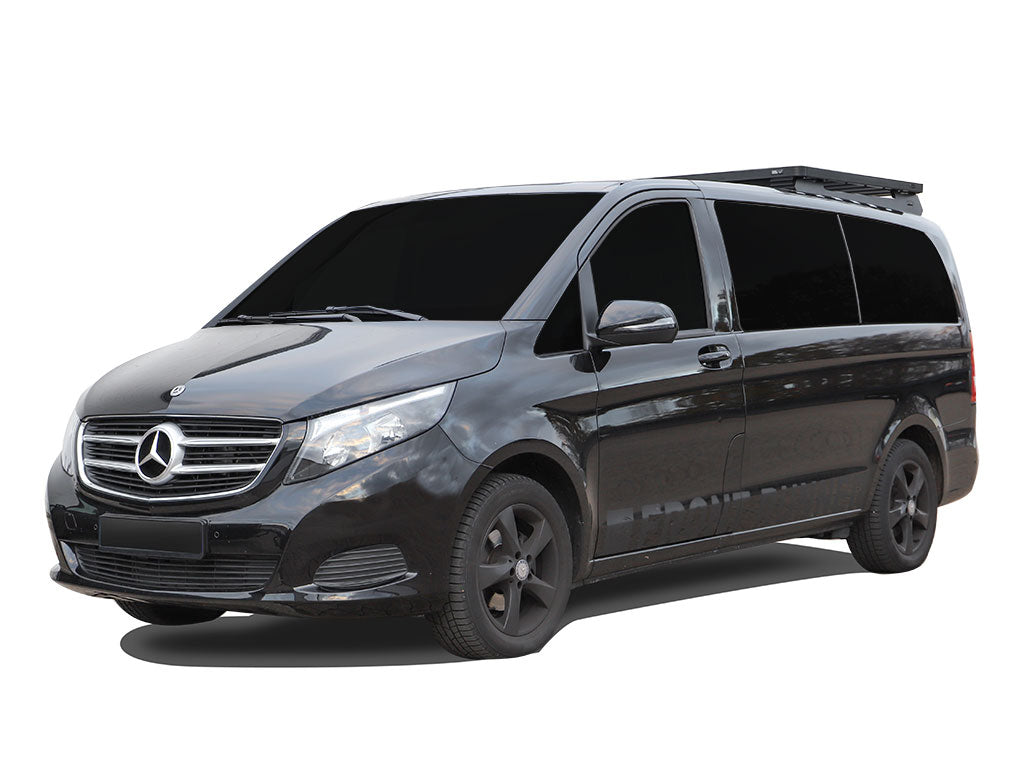

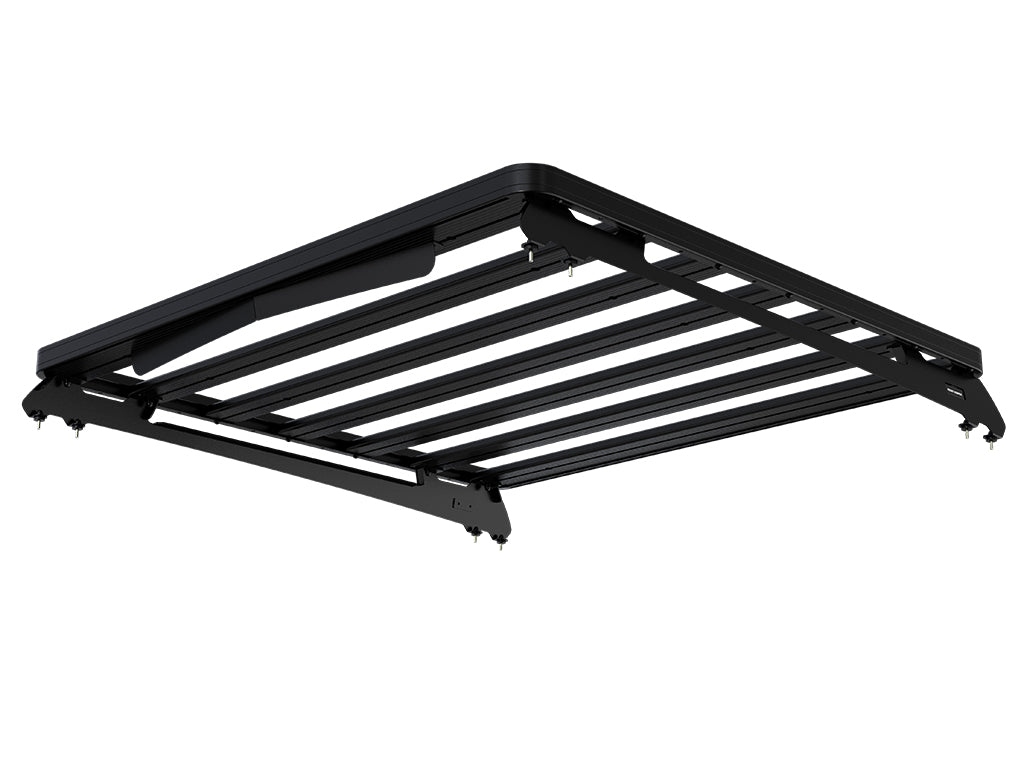

Mercedes Benz V-Class L3 / Metris 135inWB (2014-Current) Slimline II 1/2 Roof Rack Kit

This 1358mm/53.5” long half-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your V-Class L3/Metris. Easily installs using the existing factory mounting points. No drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.

These Foot Rails contain 2 openings to access Front Runner under rack mount tables (1 smaller Pro Stainless Steel Prep Table Kit and 1 larger Pro Stainless Steel Camp Table Kit).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

For further information on installation, please see the fitment instructions in the INSTALL tab

Note: This Rack Kit is suitable for the Mercedes Vito Panel Van.

KRMV011T - Mercedes Benz V-Class L3 / Metris 135"WB (2014-Current) Slimline II 1/2 Roof Rack Kit - by Front Runner

Consisting of:

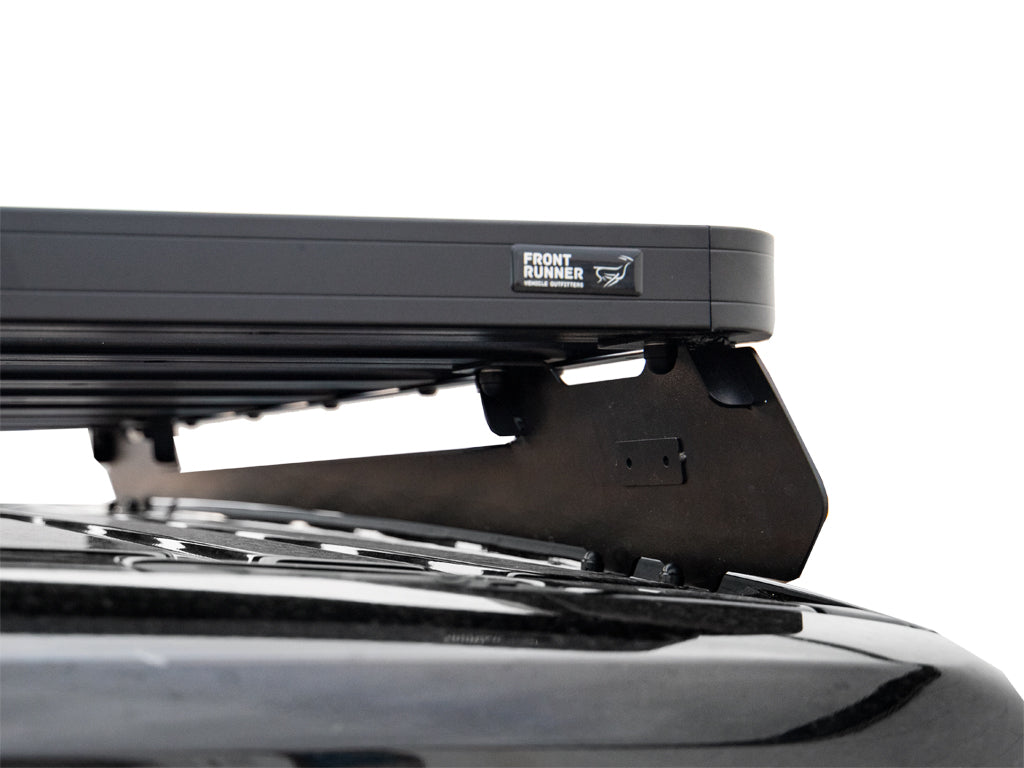

1x FAMV002 - Mercedes Benz V Class XLWB(2014-Current) Foot Rail
1x RRSTJ07 - SLII Tray - 1425mm(W)X1358mm(L)

Material Used:

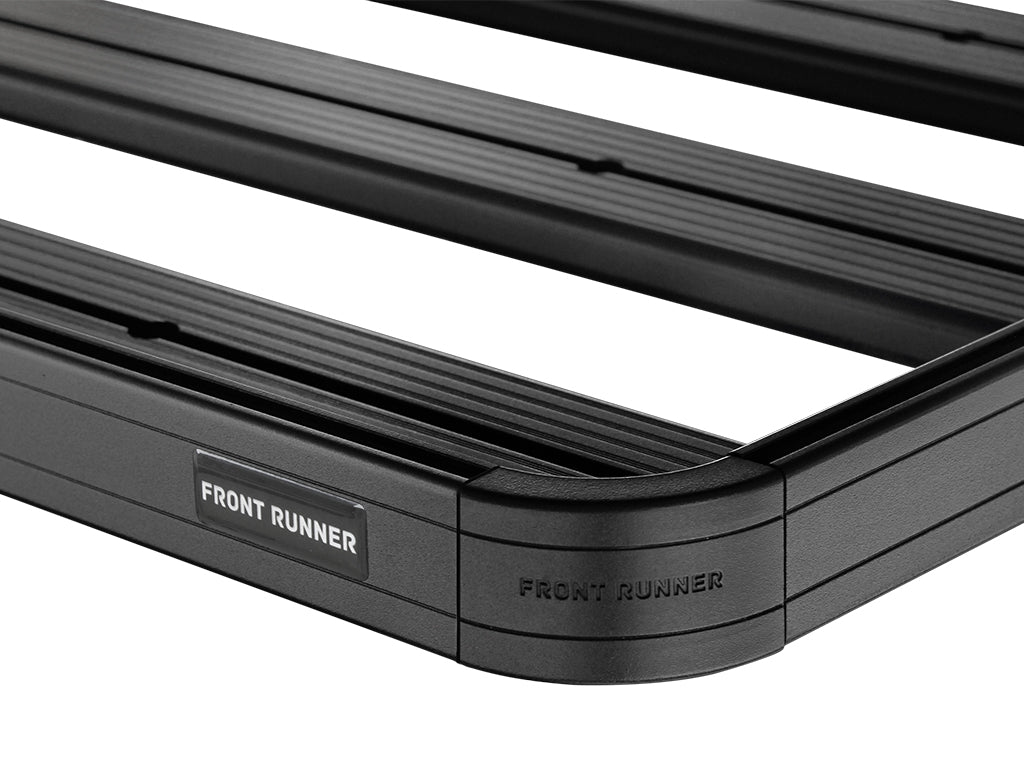

Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 35.84kg (79.01lbs)

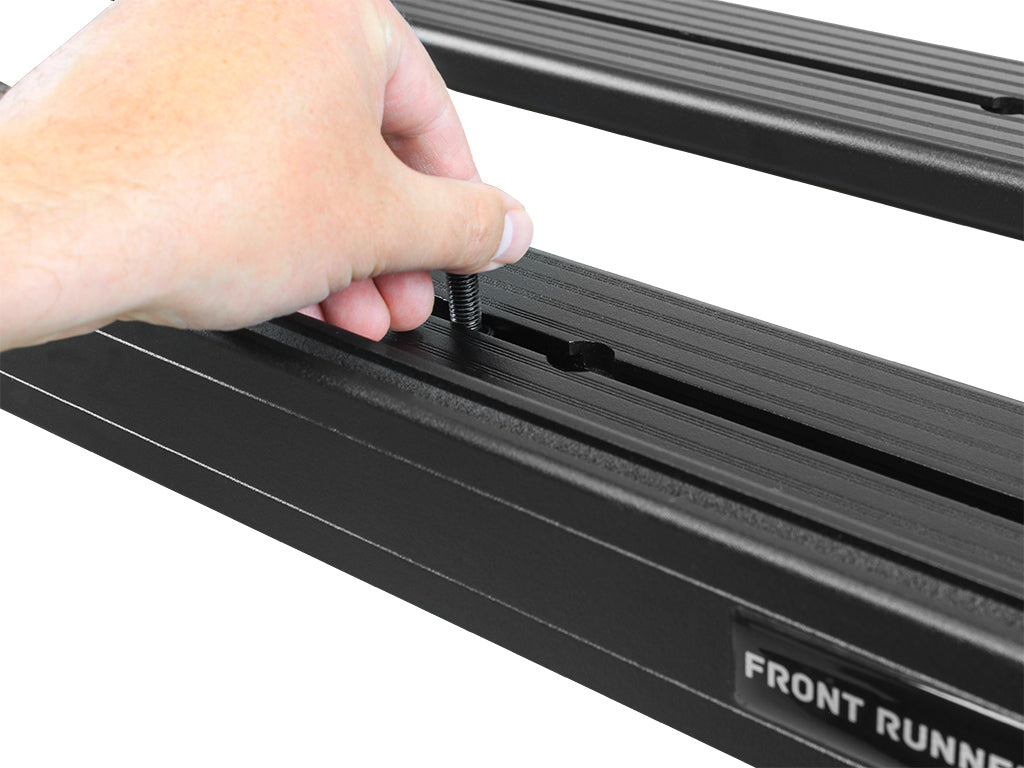

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 455mm (18")
Length: 1730mm (68")
Height: 240mm (9")

Shipping Weight:
Weight: 35.72kg (79lbs)
