Front Runner

KSTH005T

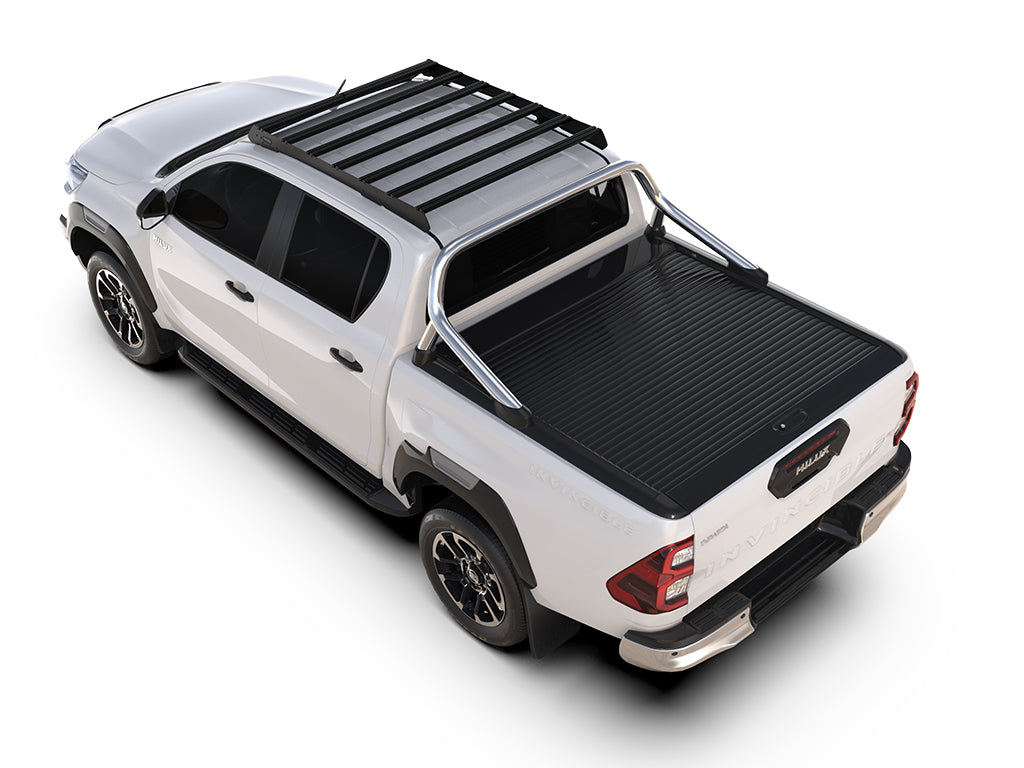

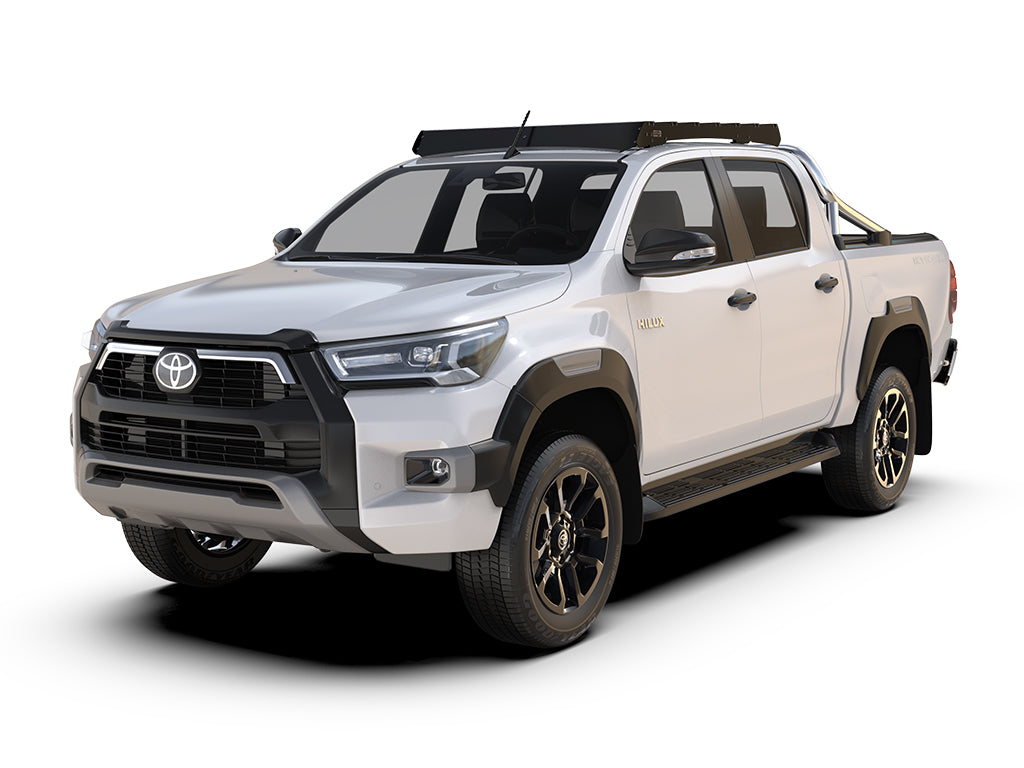

Toyota Hilux (2015-Current) Slimsport Roof Rack Kit

$739.00 $849.85 You Save 13% ($110.85)

• Description
• Specs
• Install
• Video

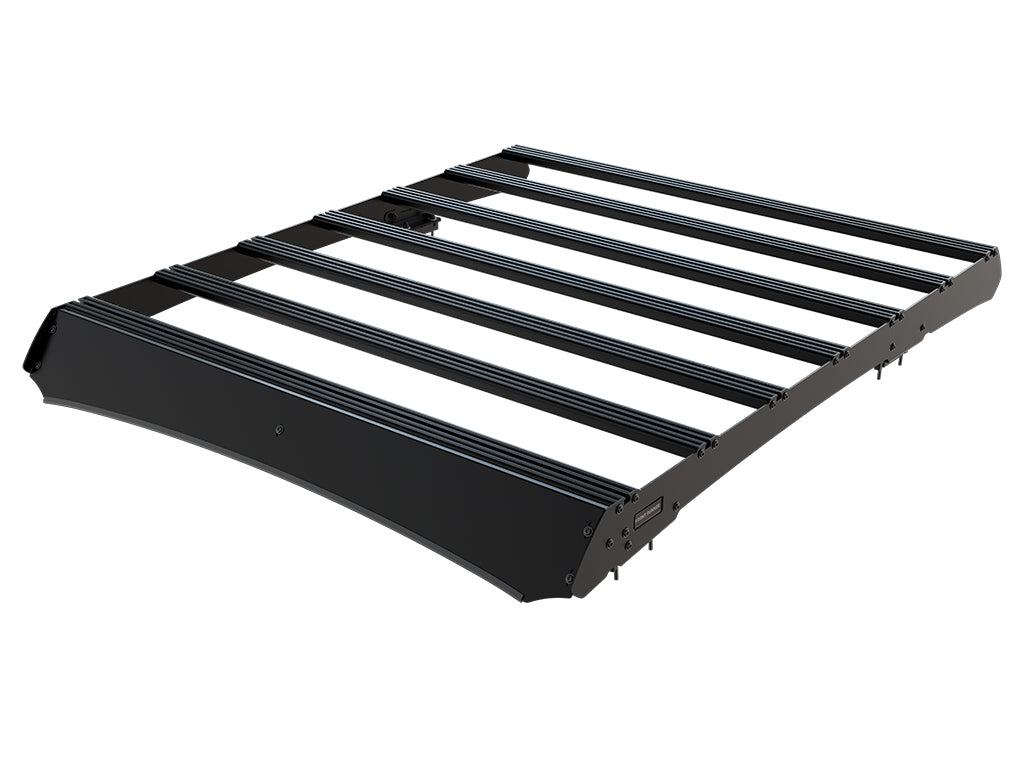

• • This low profile flat deck Slimsport rack has a load carrying area of 1386mm (54.6") x 1147mm (45.2").

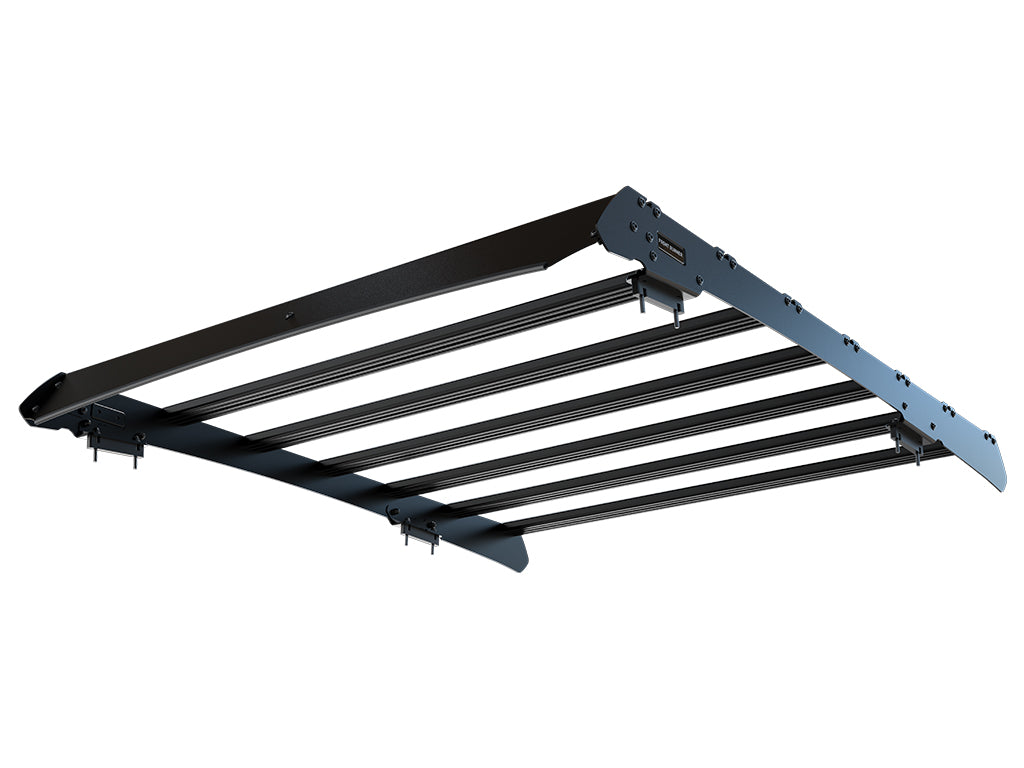

  • The sleek side rails have integrated mounting feet. The mounting feet also have additional brace brackets for added strength.
  • The high strength aluminum slats have T slots suitable for all Front Runner top mount accessories.
  • Easily add on the Rack Accessory Mounting Bracket (RRAC182) for most Front Runner side mount accessories (sold separately).

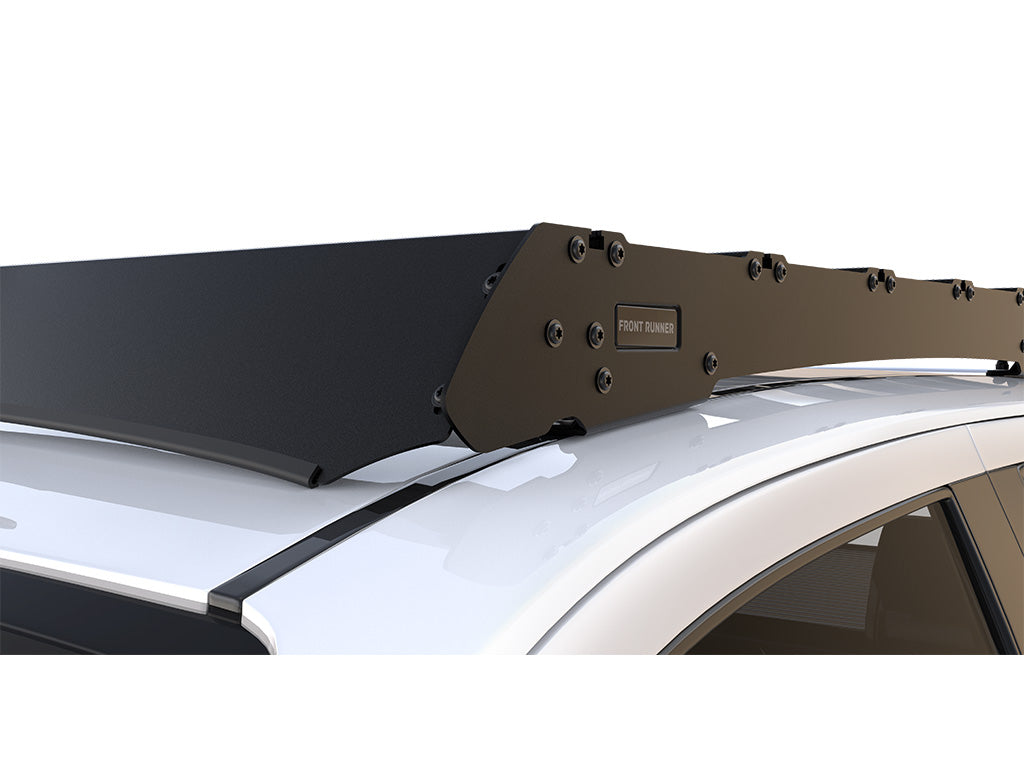

  • The included standard full fairing with rubber edge trim, makes the rack ultra quiet.
  • Need a lightbar? The optional lightbar fairing Toyota Hilux H48 DC (2022 Current) Slimsport Rack 40" Light Bar Wind Fairing (sold separately) has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000 CB SM / 12V/24V / Single Mount (sold separately).
  • Fitment guide and all mounting hardware included.
  • 6"/T30 Torx Allen Key for Slimsport Rack (RRAC213) is required for installation.
  • Note: Drilling required.
  • Note: Under Rack Tables are not compatible with the Slimsport rack kit range
  • Note: Some side mount accessories are not suited for low profile foot rails such as Hi Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.
  All Front Runner Racks are backed by a Limited Lifetime Warranty*

• KSTH005T - Toyota Hilux (2015-Current) Slimsport Roof Rack Kit - by Front Runner

  Consisting of:
  1x KSTH002 - Toyota Hilux (2022-Curr) SlimSport Roof Rack Kit
  1x RRAC244 - Toyota Hilux H48(2022-Curr)SsportRack Wind Fairing
  1x RRAC971 - Protection Strip




  Material Used:
  Black epoxy powder - coated T6 aluminium
  High strength steel




  Assembled Rack Kit Dimensions: 1386mm (54.6") L x 1147mm (45.2") W x 116mm (4.6") H




  Approximate Installed Weight: 24.352537kg (53.69lbs)




  The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.




  To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.




  Shipping Dimensions:
  Width: 330mm (13")
  Length: 1700mm (67")
  Height: 160mm (06")




  Shipping Weight:
  Weight: 25kg (55lbs)

• Installation Instructions for KSTH002 (EN)



  View / Download

  • Language: EN
  • Filename: F_KSTH002.pdf
  • Filesize: 3.96 M

  Installation Instructions for RRAC244 (EN)



  View / Download

  • Language: EN
  • Filename: F_RRAC244.pdf
  • Filesize: 1.6 M

  Installation Instructions for RRAC971 (EN)



  View / Download

  • Language: EN
  • Filename: F_RRAC971.pdf
  • Filesize: 2.34 M

  *A PDF viewer is required to view the fitting instructions.
