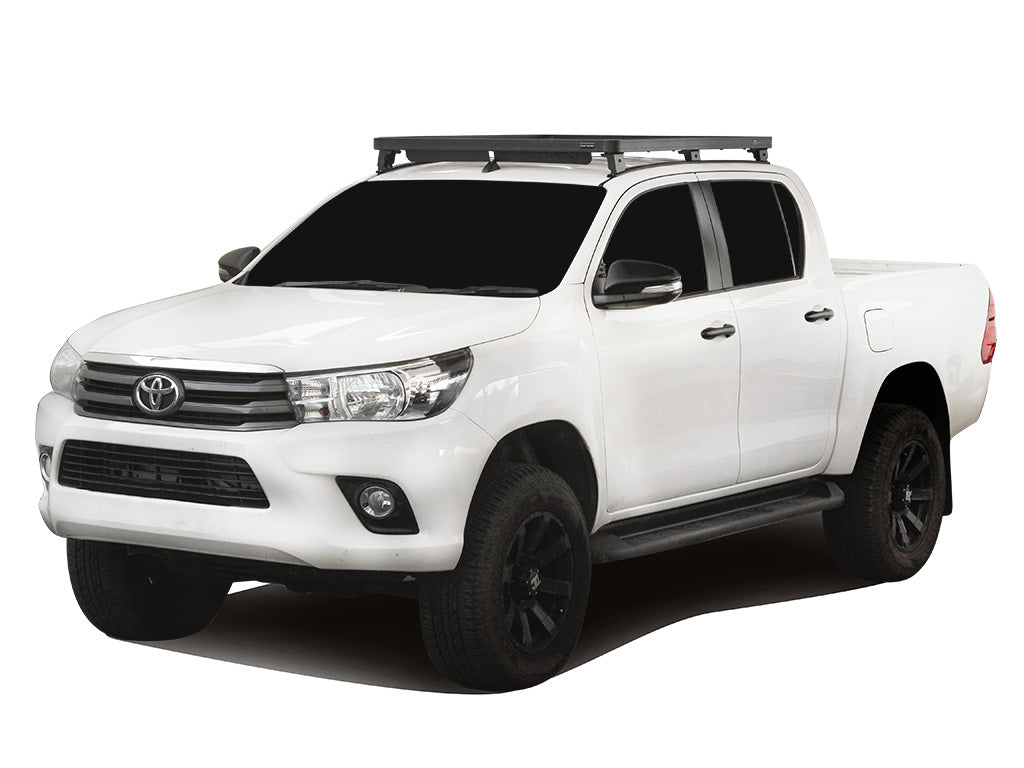

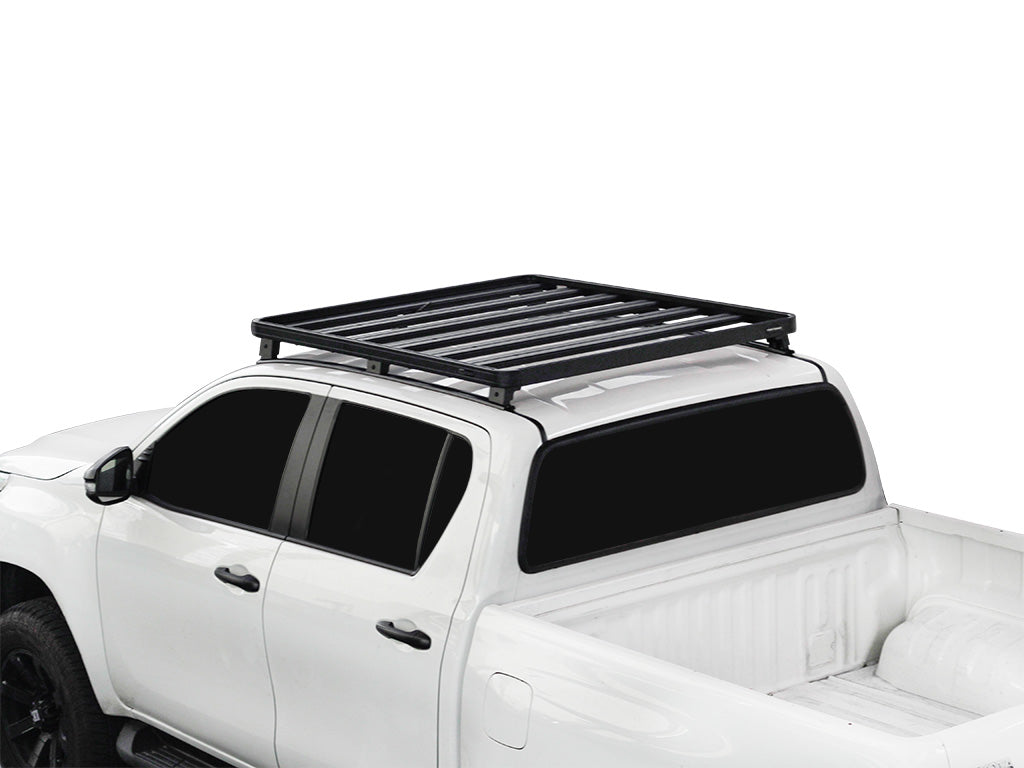

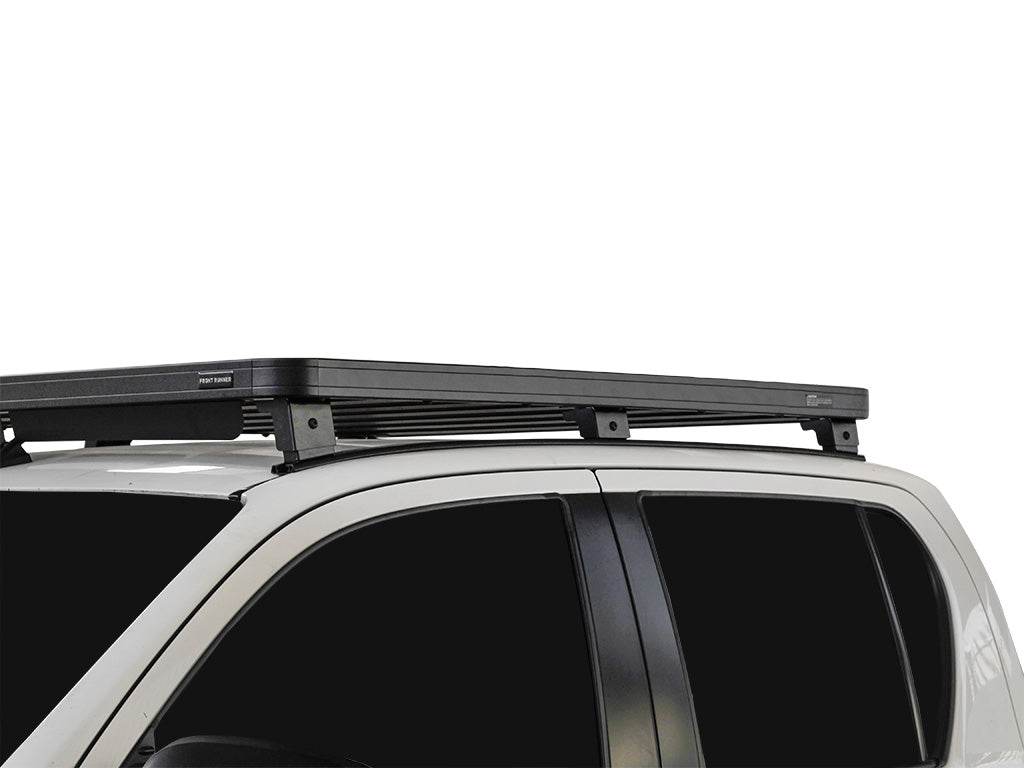

Toyota Hilux Revo DC (2016-Current) Track AND Feet Slimline II Roof Rack Kit

This 1358mm/53.5" long, full-size, Slimline II cargo carrying roof rack kit for the Toyota Hilux Revo contains the Slimline II Tray, Wind Deflector, 2 Tracks and 6 Feet. Drilling is required for installation.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

KRTH017T - Toyota Hilux Revo DC (2016-Current) Track & Feet Slimline II Roof Rack Kit - By Front Runner

Consisting of:

2 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
1 x FASS015 - Foot Set Angled / 75mm - by Front Runner

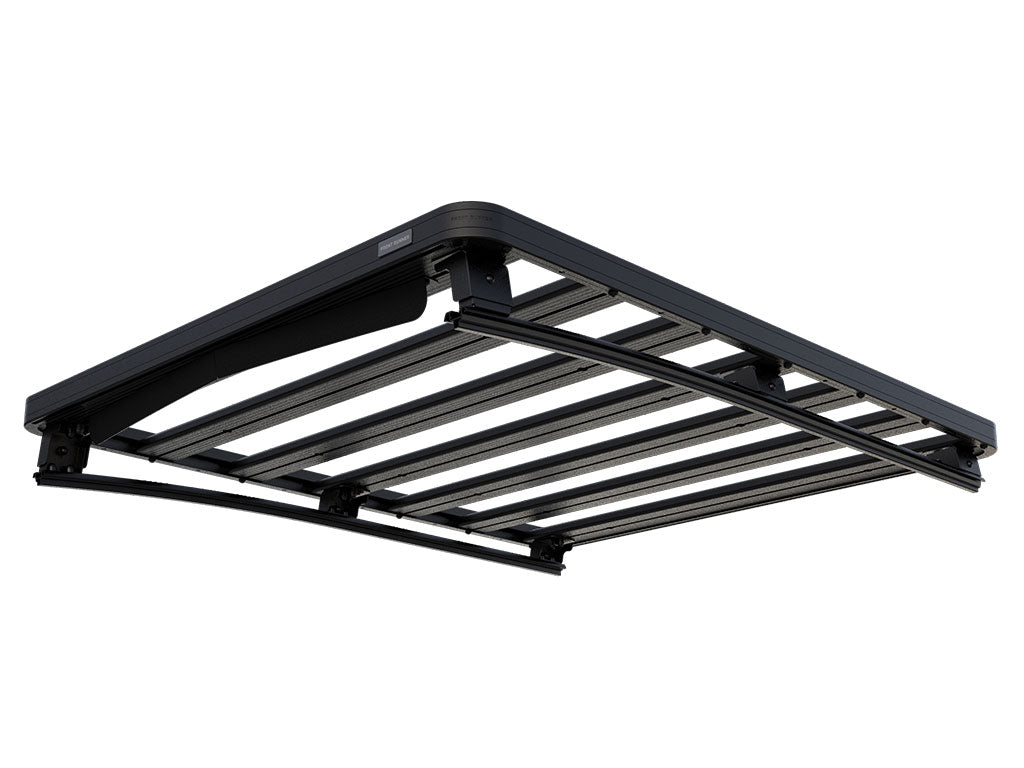

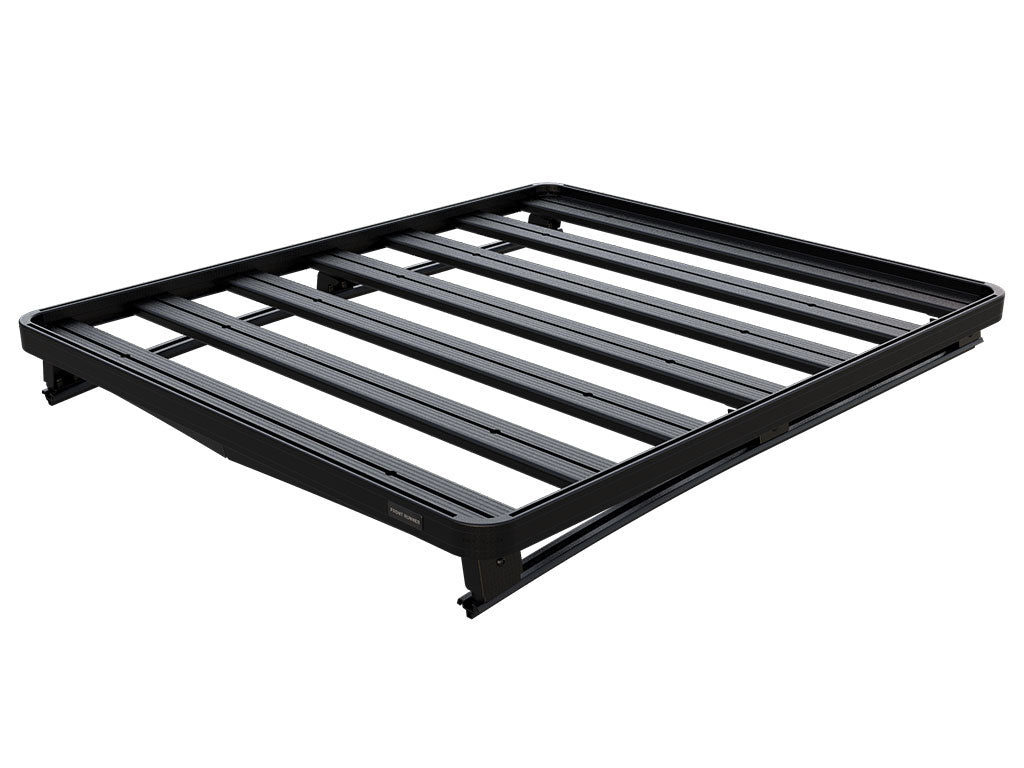

1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner
1 x TRTH003 - Toyota Revo DC (2016-Current) Tracks / 1300mm(L) - by Front Runner

 Material used:

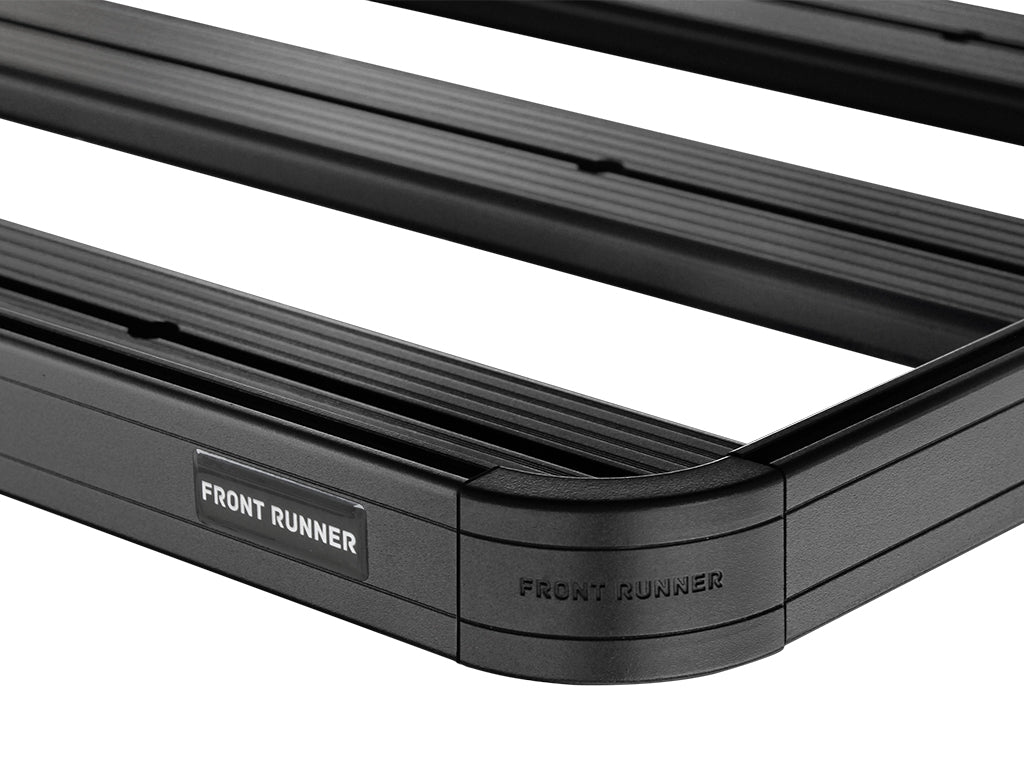

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 23kg (50lbs)

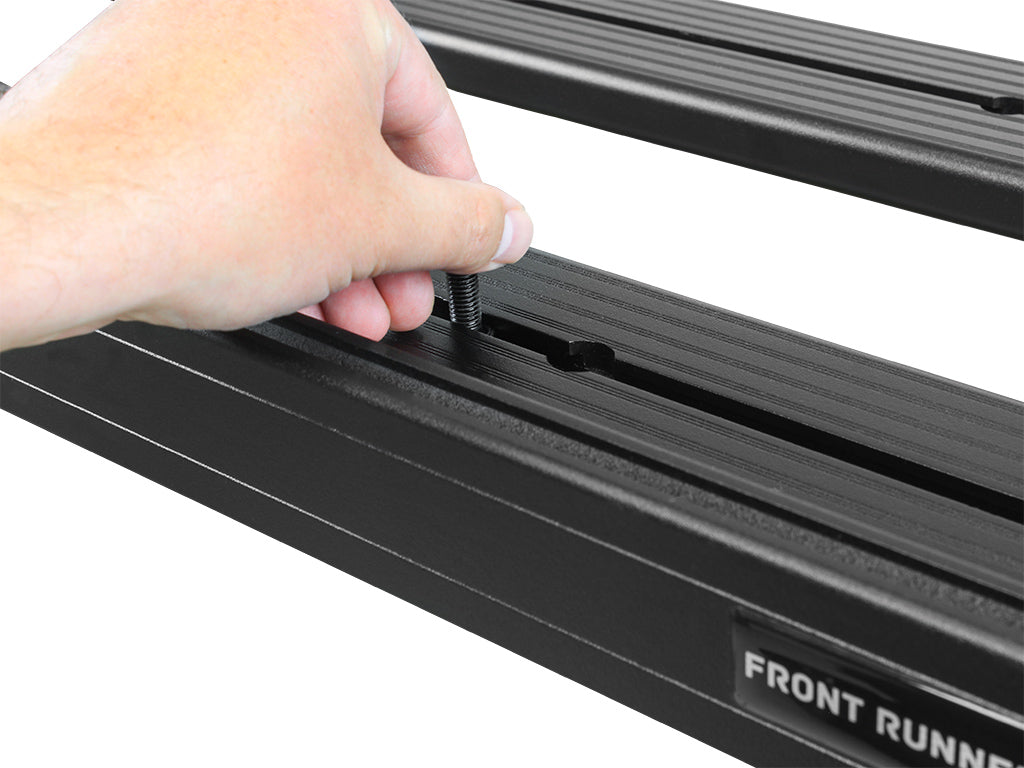

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

 Shipping Dimensions:

Width 450mm (18")
Length 1610mm (63")
Height 260mm (10")

Shipping Weight:

Weight 26.3kg (57.8lbs)
