Front Runner

KRTL036

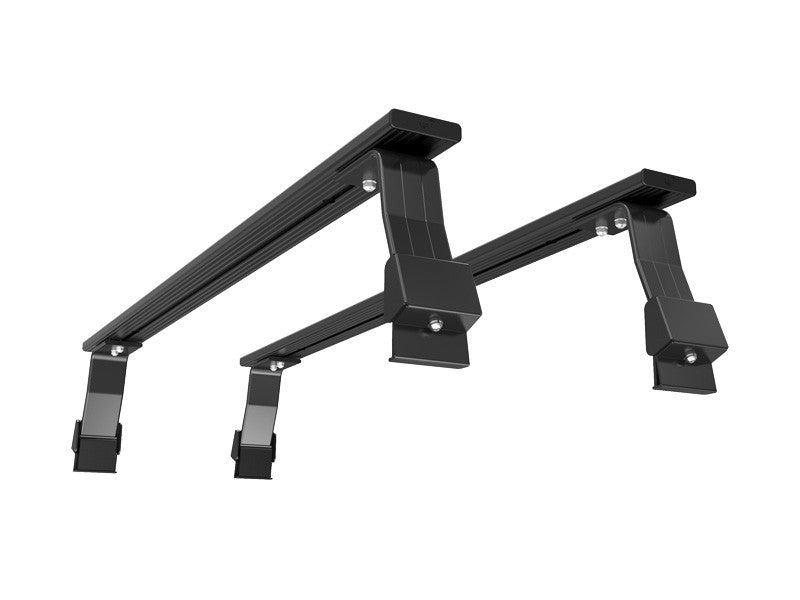

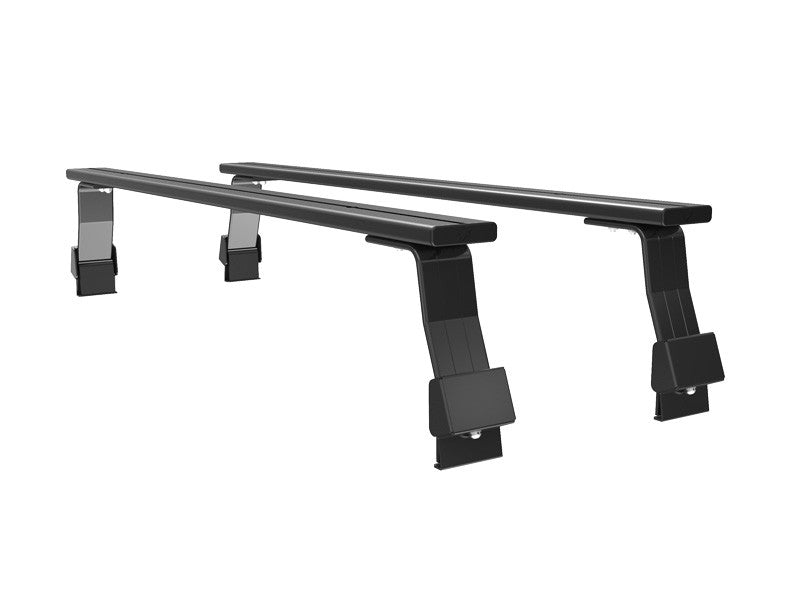

Toyota Land Cruiser 75/79 Load Bar Kit / Gutter Mount

You may not have the need for a full roof rack and find that you can get by using a set of Front Runner load bars.Can be used to mount a Front Runner Roof Top Tent or other accessories where a low profile and smaller footprint is preferred.The Load Bars are mounted directly to the rain gutters using Gutter Mounted Legs.Uses the same strong, corrosion free aluminum slats found in Front Runner Slimline II Racks.The sliding nut t-slots allow for quick fitting and removal of accessories and equipment on both the top and bottom of the slats.The Load Bars and Gutter Mount Legs can be used in the future as components to build a complete Front Runner Roof Rack.Made from stainless steel and a durable, weather resistant black powder-coated aluminum.Includes all hardware, components and the installation guide needed to fit Load Bars on a vehicle.

  • KRTL036 - Toyota Land Cruiser 75/79 Load Bar Kit / Gutter Mount - by Front Runner

    Consisting of:

    2 x LASS102 - No 2 Leg 130mm (Pair) - by Front Runner
    1 x LBSK016 - Roof Load Bar Pair 1425mm(W) - by Front Runner
    1 x WDLB001 - Load Bar Wind Deflector / 10mm - by Front Runner

     Material used:

    Black epoxy powder-coated T6 aluminium
    3CR12Stainless Steel

    Approximate Installed Weight 7kg (16lbs)

    The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

    To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.

    If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle’s rain gutters.

    If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.


     Shipping Dimensions:

    Width 115mm (5")
    Length 1555mm (61")
    Height 180mm (7")


    Shipping Weight:

    Weight 8.4kg (18.6lbs)


  • *A PDF viewer is required to view the fitting instructions.
