All Front Runner Rack Kits contain Installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.These Foot Rails contain 2 openings to access Front Runner under rack mount tables (1 smaller prep and 1 larger camp size table).All Front Runner Racks are backed by a Limited Lifetime Warranty*

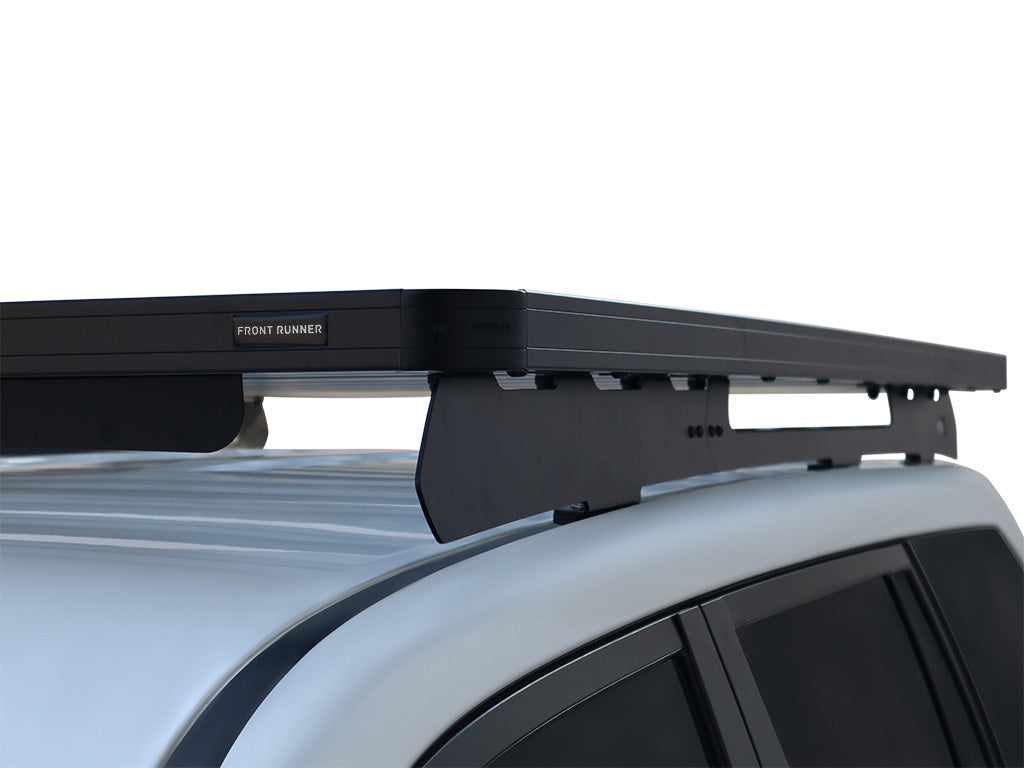

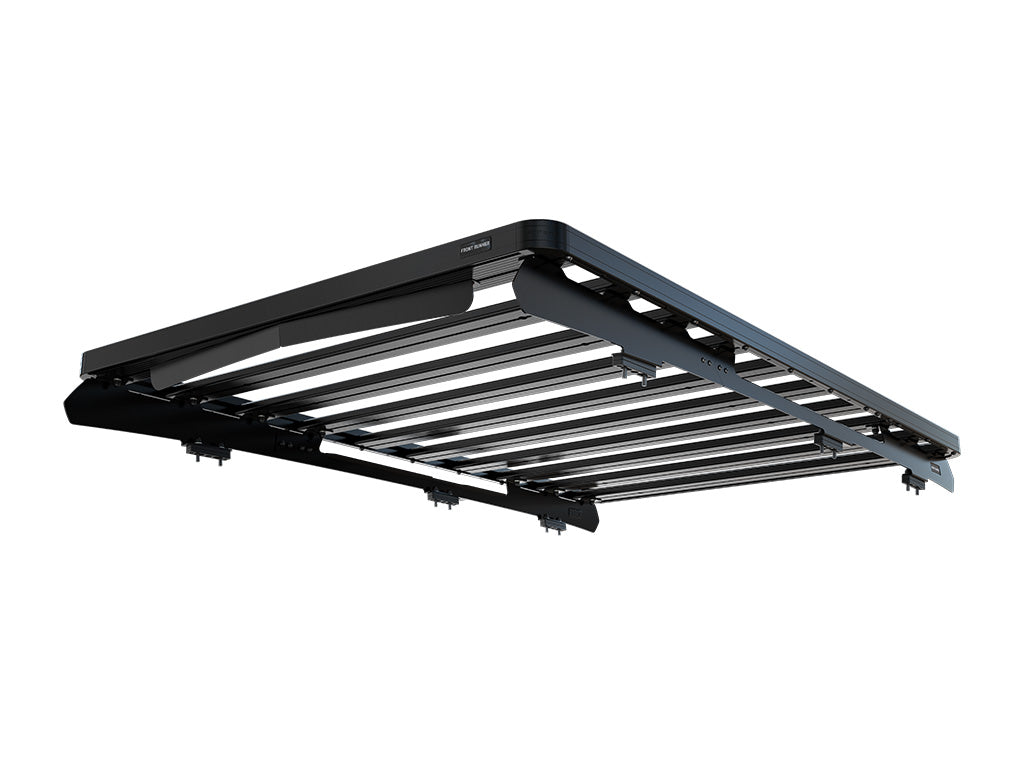

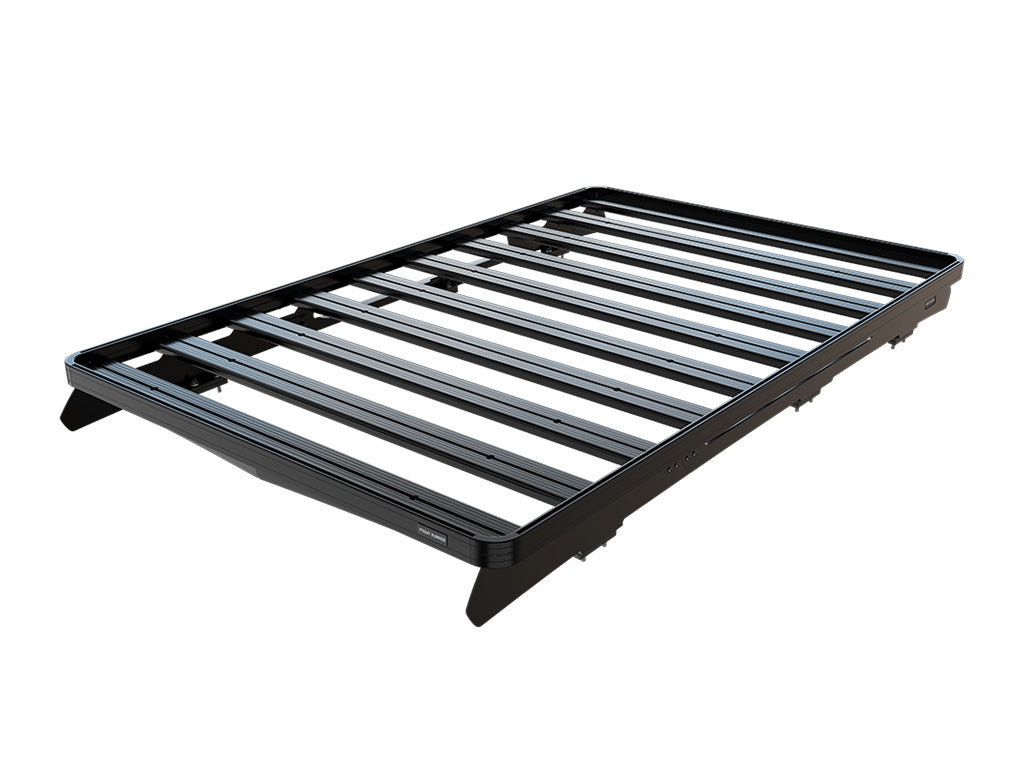

KRTP011T - Toyota Prado 150 Slimline II Roof Rack Kit - by Front Runner
1 x FATP001 - Toyota Prado 150 Foot Rails - by Front Runner 1 x RRSTD10 - Slimline II Tray - 1255mm(W) X 1964mm(L) - by Front Runner
Black epoxy powder-coated T6 aluminium 3CR12Stainless Steel
Approximate Installed Weight 32kg (71lbs)

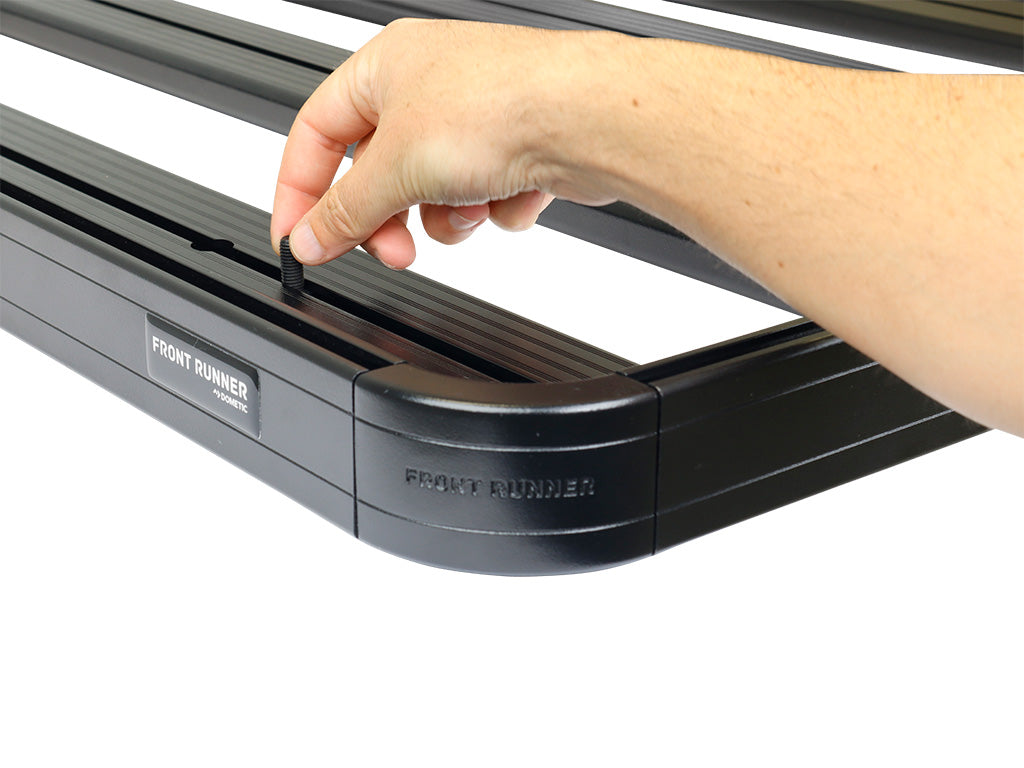

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
