Front Runner

KRVT011T

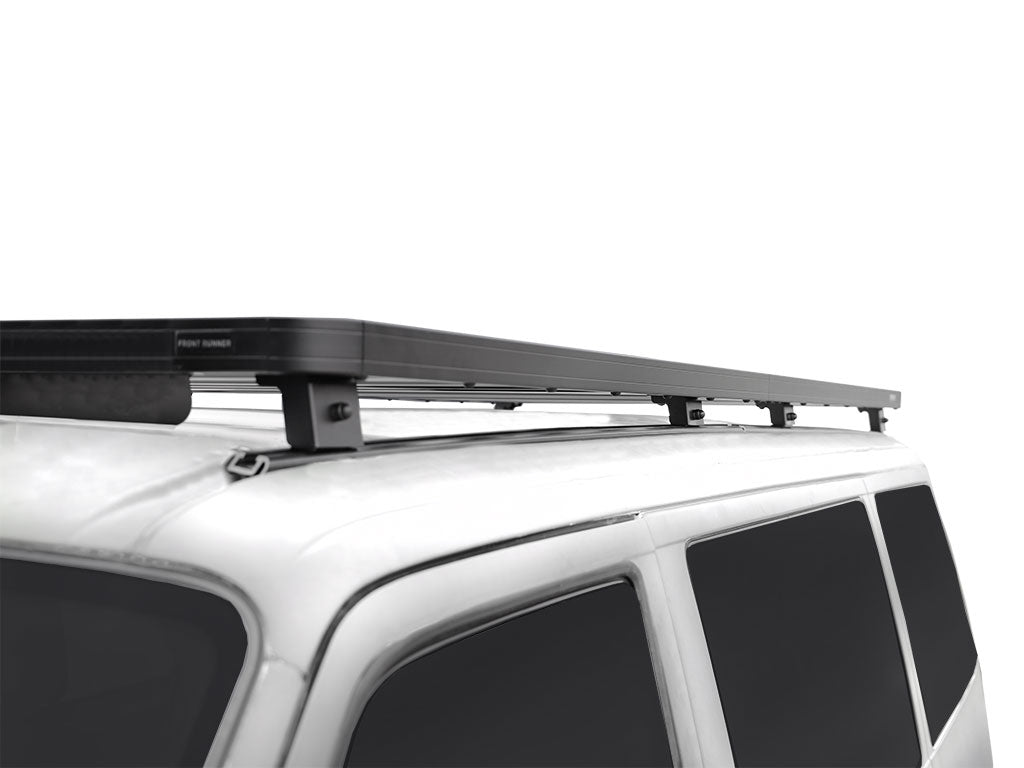

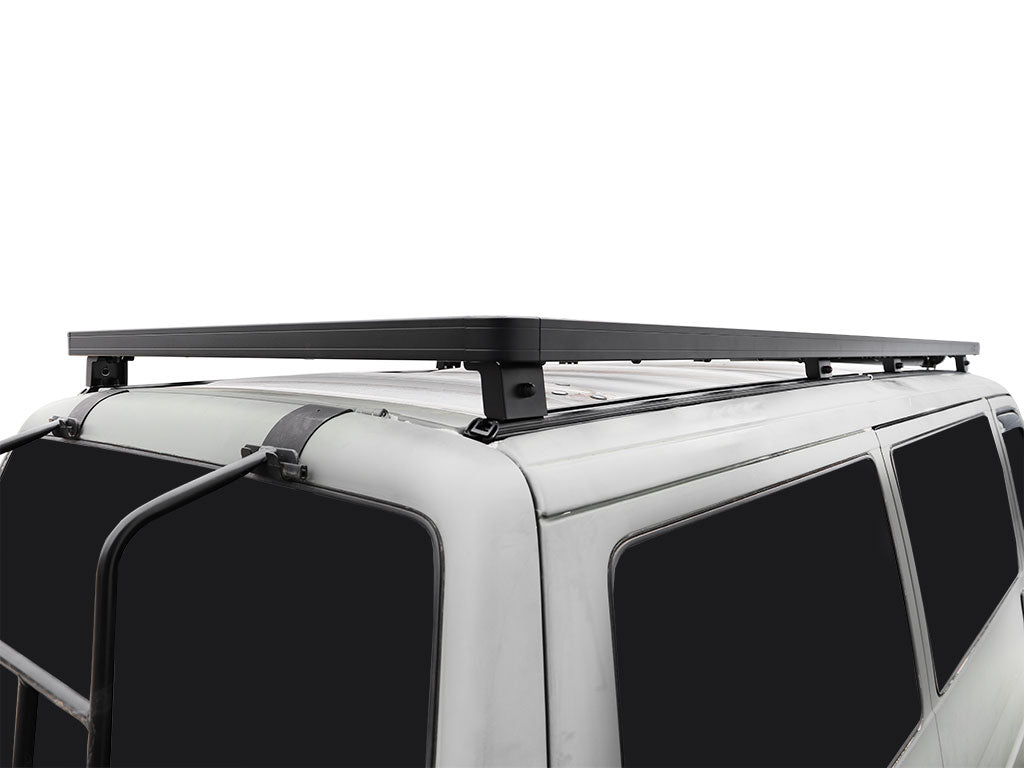

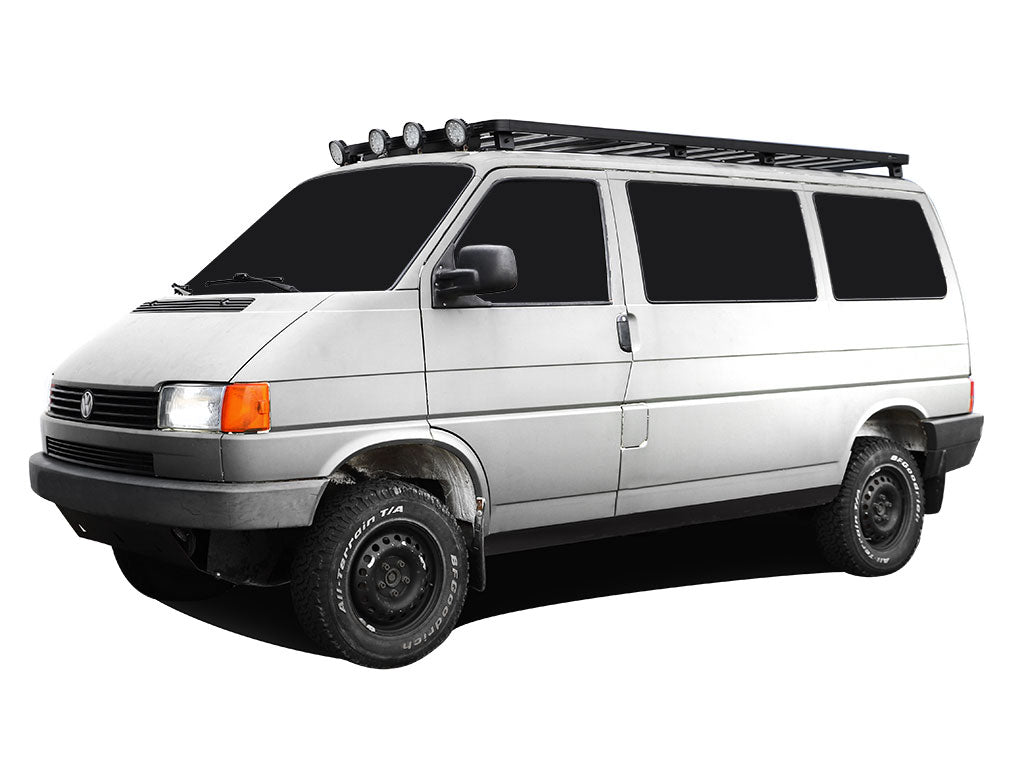

Volkswagen T4 Transporter (1990 2003) Slimline II Roof Rack Kit

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. For further information on installation, please see the fitment instructions in the INSTALL tab. All Front Runner Racks are backed by a Limited Lifetime Warranty*

  • KRVT011T - Volkswagen T4 Transporter (1990–2003) Slimline II Roof Rack Kit - by Front Runner

    Consisting of:

    2 x FASS012 - Foot Set / 40mm-50mm - by Front Runner
    2 x FASS013 - Foot Set / 60mm-70mm - by Front Runner
    1 x RRAC905 - Volkswagen T4 Transporter RR Installation Kit

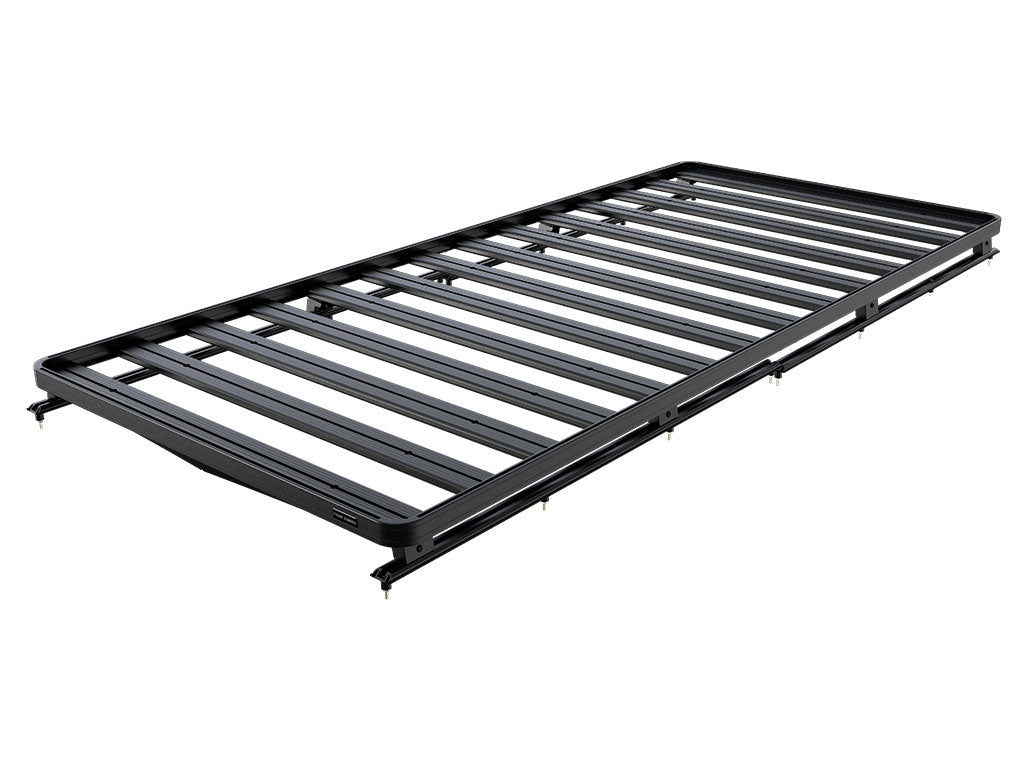

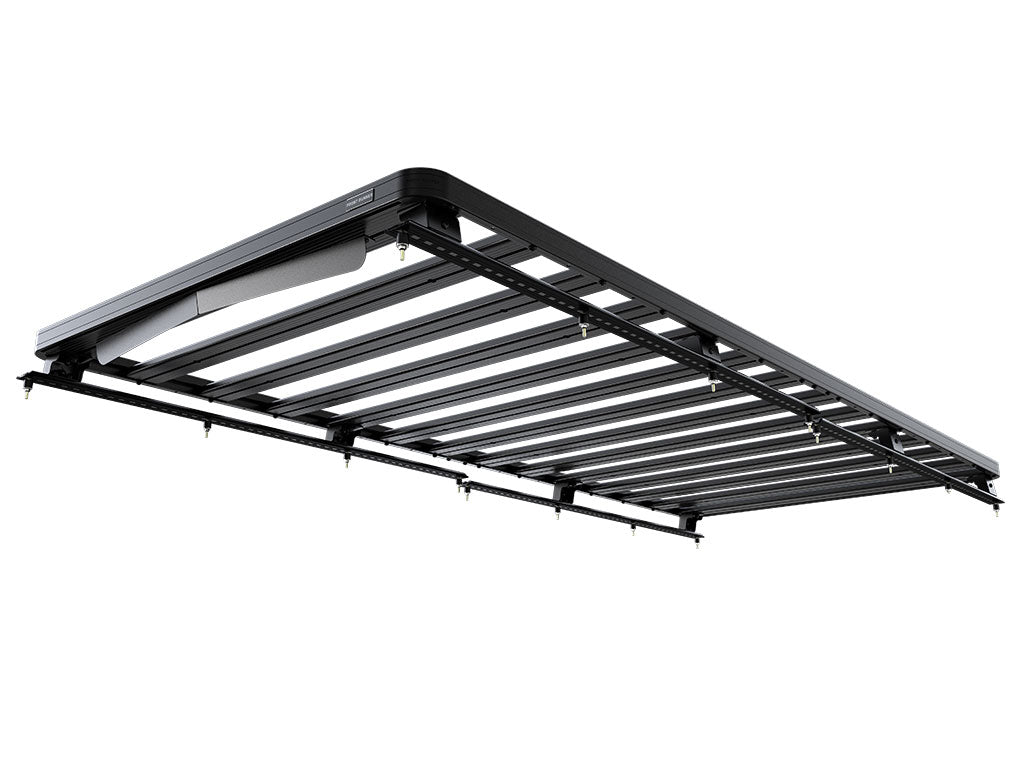

    1 x RRSTD14 - Slimline II Tray - 1255mm(W) X 2772mm(L) - by Front Runner
    2 x TRAC002 - Universal Track / 1400mm(L) - by Front Runner

     Material used:

    Black epoxy powder-coated T6 aluminium
    3CR12Stainless Steel

    Approximate Installed Weight 40kg (88lbs)

    The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

    To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

    If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

    If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

     Shipping Dimensions:

    Width 455mm (18")
    Length 1610mm (63")
    Height 285mm (11")


    Shipping Weight:

    Weight 46.6kg (102.5lbs)


  • *A PDF viewer is required to view the fitting instructions.
