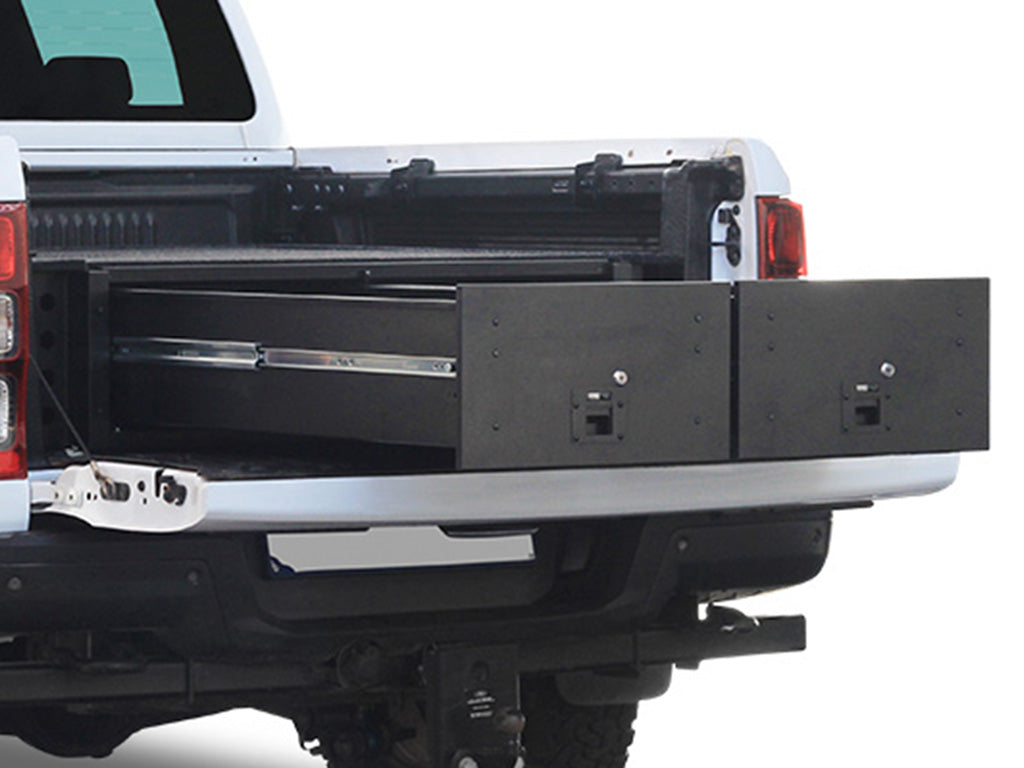

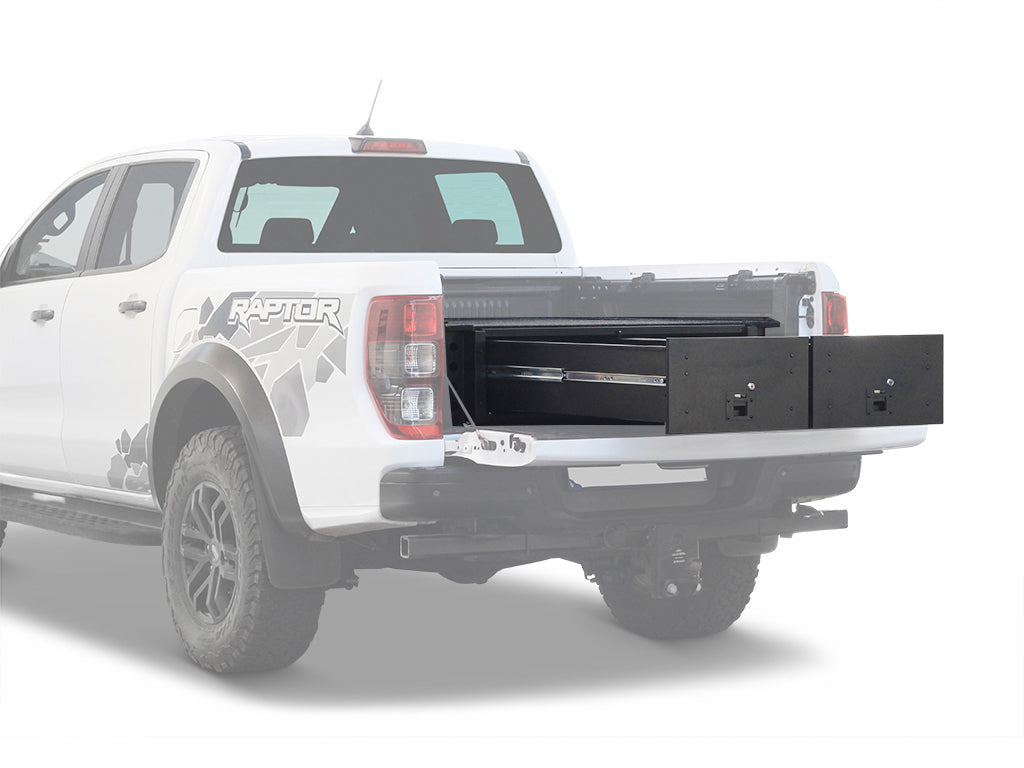

Ford Ranger Wildtrak / Raptor (2014-2022) w/Drop-In Bed Liner Drawer Kit

Drawer kit includes: two (2) lockable drawers, two (2) keys per lock, three (3) tie down rails, six (6) tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.

• Load-carrying capacity: 113kg/250lb per drawer.
• Easily install or remove drawers in minutes by attaching the supplied carabiners and turnbuckles to the vehicle’s existing mounting points and the drawer mounting brackets.
• High-strength bearing slides allow each drawer to extend nearly 100% from the anchored base.
• Stack and store luggage on or inside the drawers in your own custom configuration with Front Runner’s storage solutions and boxes (sold separately).
• The deck above the drawers can also be used to mount Front Runner Cargo/Fridge Slides.
• The deck is covered with a durable, UV-resistant nylon pile black carpet to create resiliency for securing cargo while insulating against noise and vibration.
• Side decks are easily removable to create storage space between the drawers and vehicle for a variety of items such as jumper cables, tow ropes, kindling and more.
• Each faceplate has pre-cut knockouts for additions like electrical panel socket inserts or water fittings (sold separately).
• Add up to four Drawer Dividers to help organize and stop excessive movement of gear and supplies (sold separately).
• Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.
• Designed for interior use with a canopy, camper shell, or other style bed/load bed cover.

All Front Runner Storage Systems are backed by a 2 year warranty.

*Please Note: Cub Packs and Flatpack Storage Boxes are not included when purchasing this Drawer System and are sold separately.

Consists of:
1 x Base Drawer unit (SSDR010)
1 x Drawer system Wing set
1 x Ford Raptor w/Drop-In Liner Deck set
2 x Push to close latch with 2 keys per lock
3 x Accessory channels
6 x Eye Nuts for accessory channels
Installation Hardware includes 4 turnbuckles to secure the unit
Fitting Instruction

Materials used:
Aluminum - Accessory Channels & Sub Frame
Black powder coated steel - Drawer Bins & Frame
Carpet & Laminated plywood - Top Deck & Deck Set

Product Dimensions:
Overall Product Dimensions:
1444mm(56.9") L x 1552mm(61.1") W x 298mm(11.7") H

Interior Drawer Dimensions:
Left Hand Drawer:
1156mm (45.5") L x 445mm (17.5") W x 208mm (8.2") H

Right Hand Drawer:
1156mm (45.5") L x 445mm (17.5") W x 208mm (8.2") H

Weight:
96.28kg (212.3lbs)

Load Rating:
113Kg (250lbs) per Drawer
