Front Runner Outfitters

KRFB001T

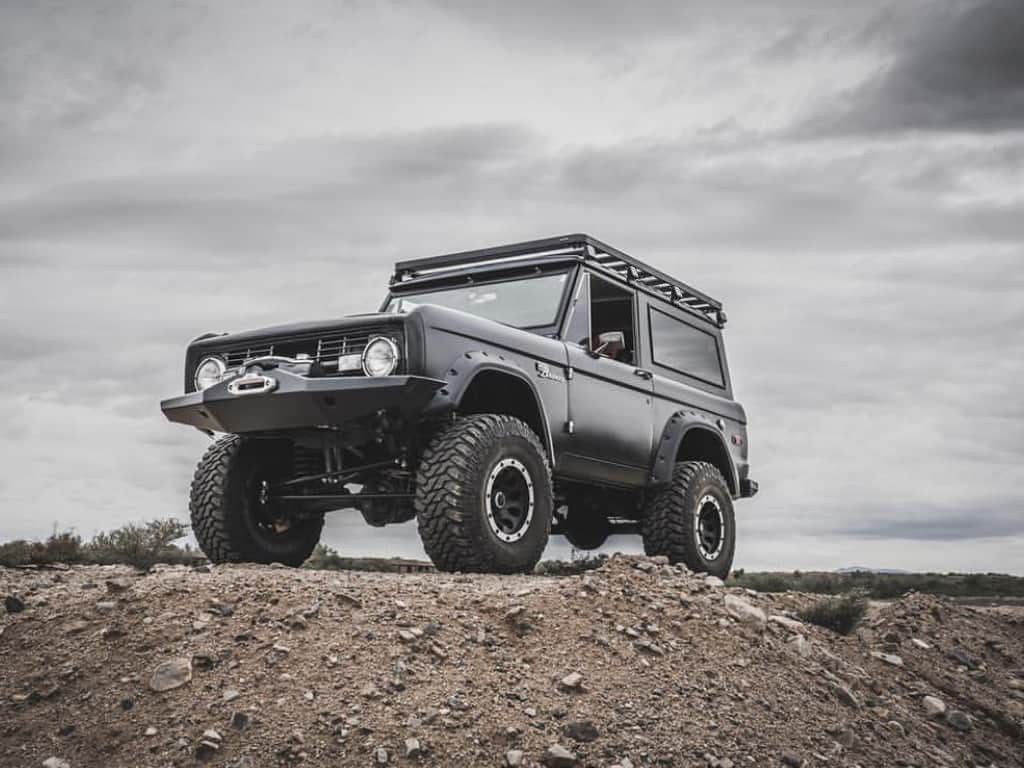

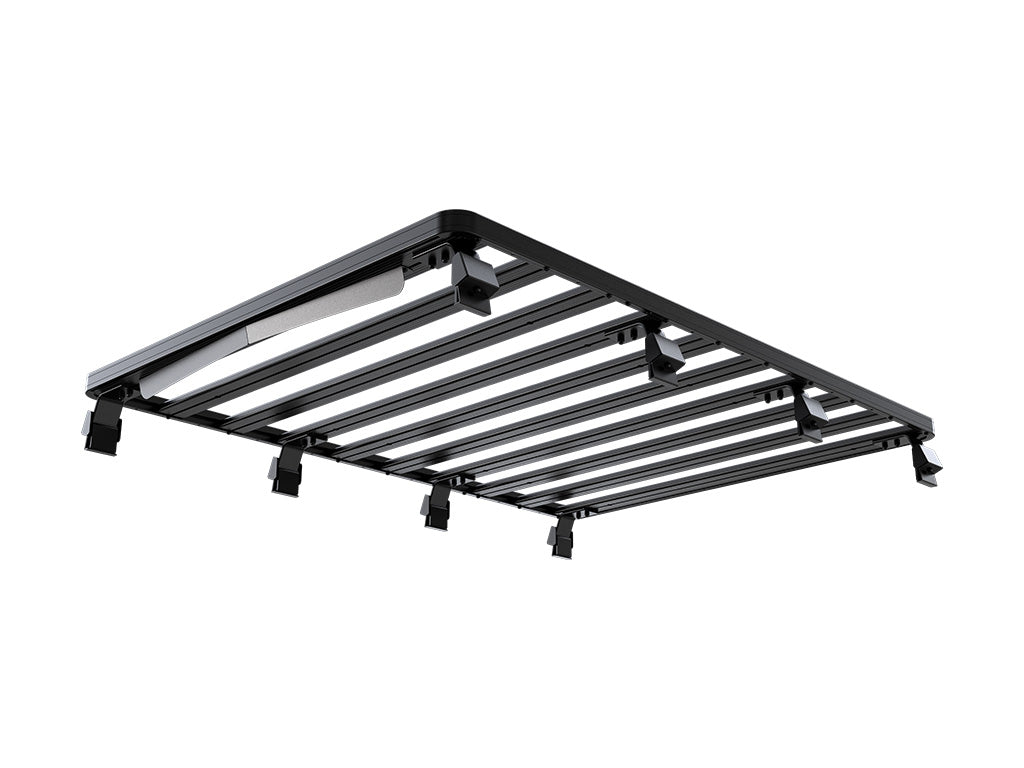

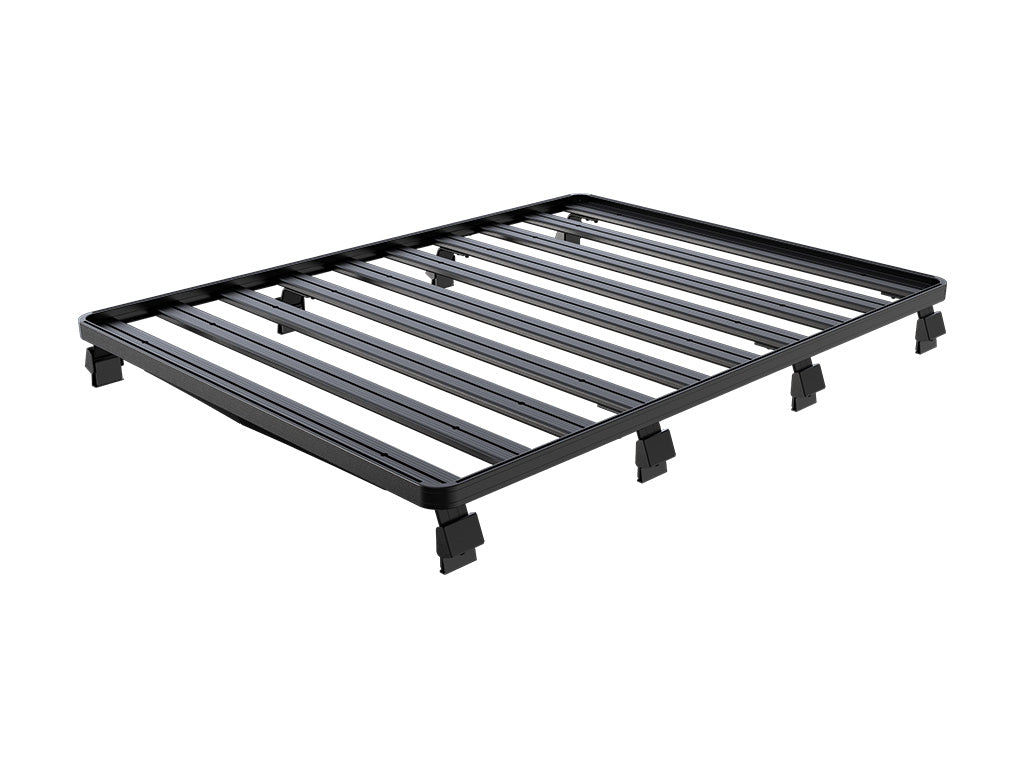

Ford Bronco (1966-1977) Slimline II Roof Rack Kit

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. All Front Runner Racks are backed by a Limited Lifetime Warranty*

  • KRFB001T - Ford Bronco (1966-1977) SLII Roof Rack Kit

    Consisting of:

    4 x LASS103 - No 3 Leg 155mm (Pair) - by Front Runner
    1 x RRSTM10 - Slimline II Tray - 1475mm(W) X 1964mm(L) - by Front Runner

     Material used:

    Black epoxy powder-coated T6 aluminium
    3CR12Stainless Steel

    Approximate Installed Weight 34kg (74lbs)

    The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

    To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

    If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

    If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

     Shipping Dimensions:

    Width 455mm (18")
    Length 1610mm (63")
    Height 250mm (10")


    Shipping Weight:

    Weight 39.1kg (86.0lbs)


  • *A PDF viewer is required to view the fitting instructions.
