Front Runner

KVMS001T

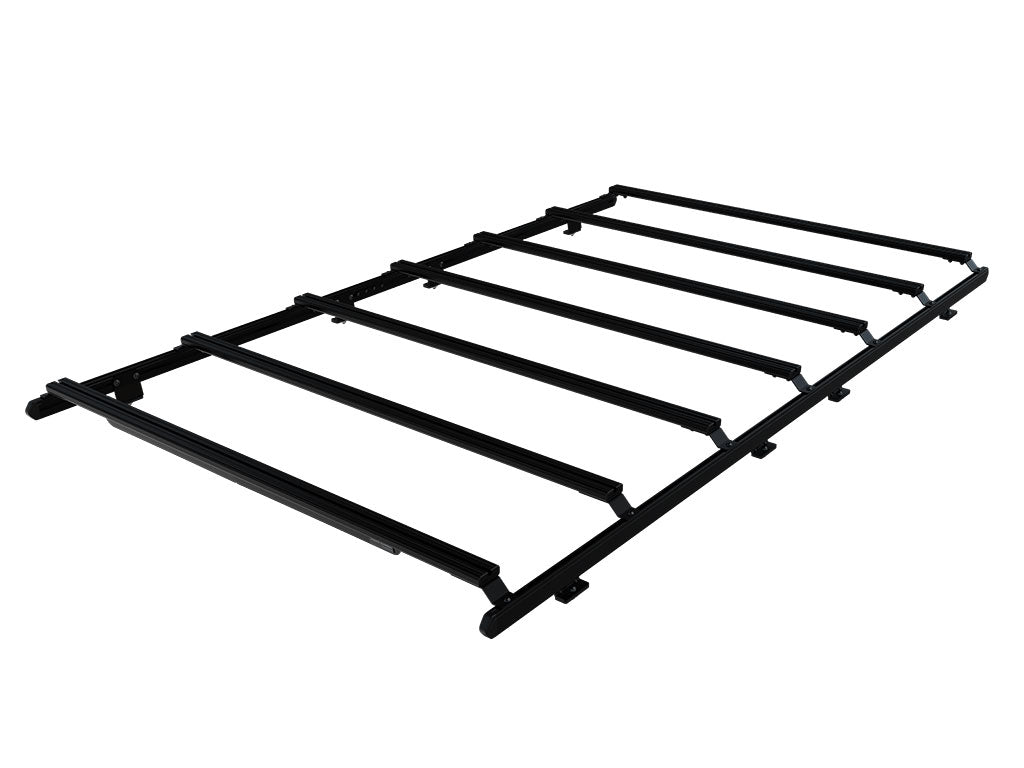

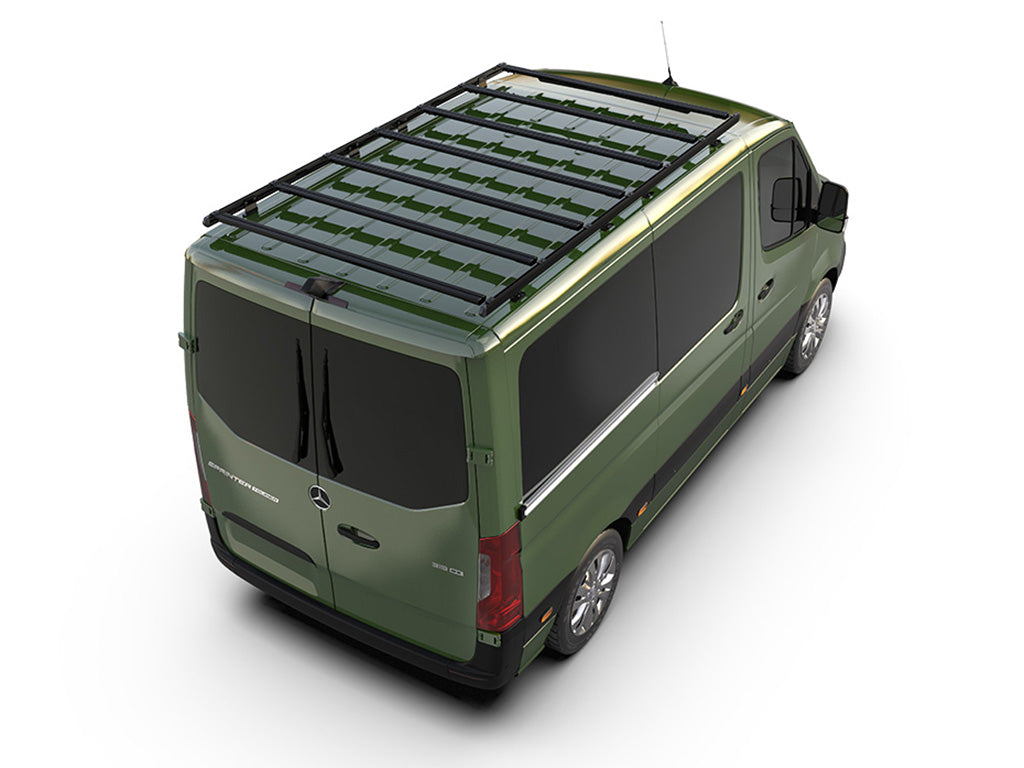

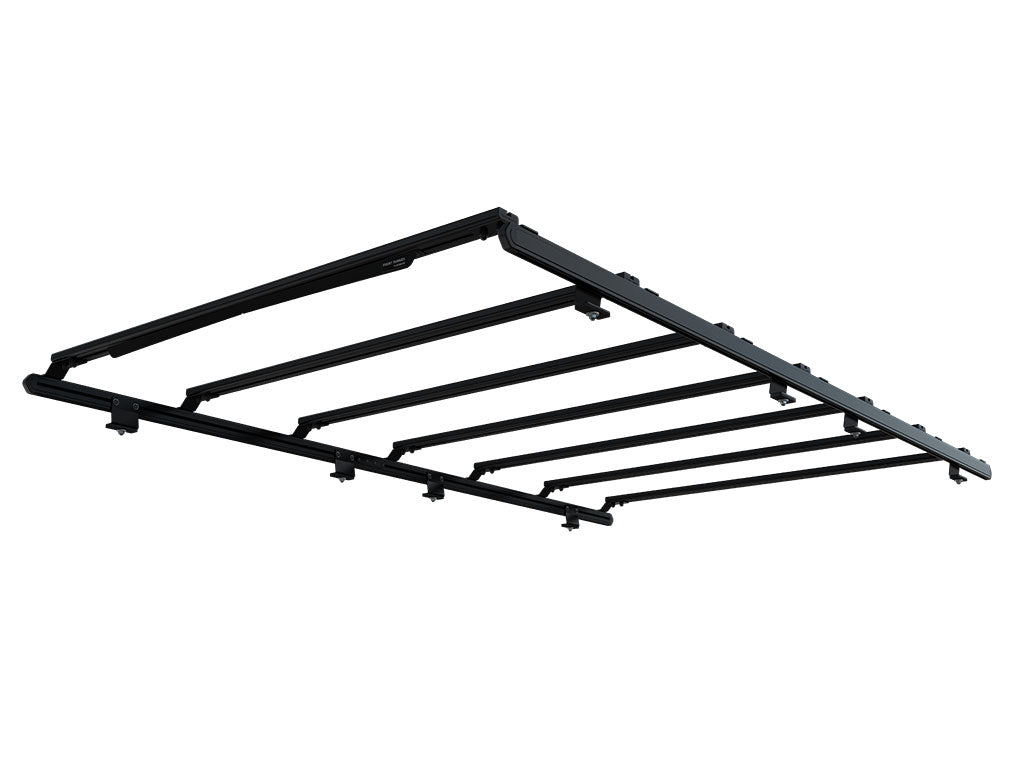

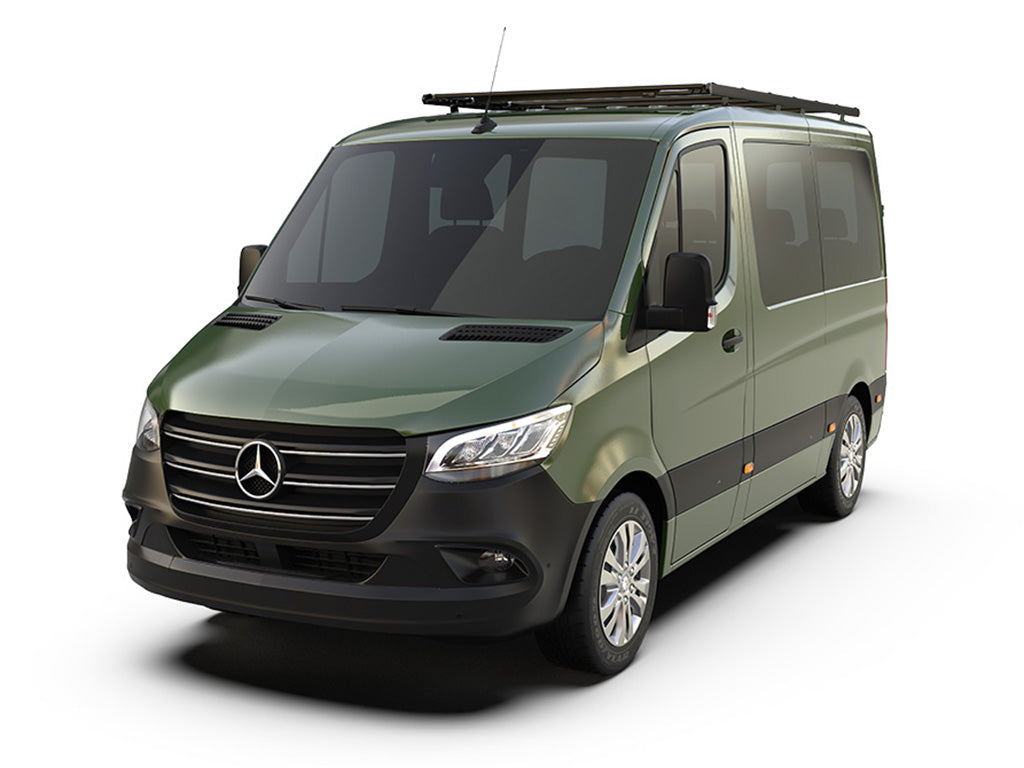

Mercedes Benz Sprinter (L1H1/128in SWB/Standard Roof) (2007-Current) Slimpro Van Rack Kit

$1,594.00 $1,833.10 You Save 13% ($239.10)

• Description
• Specs
• Install
• Video

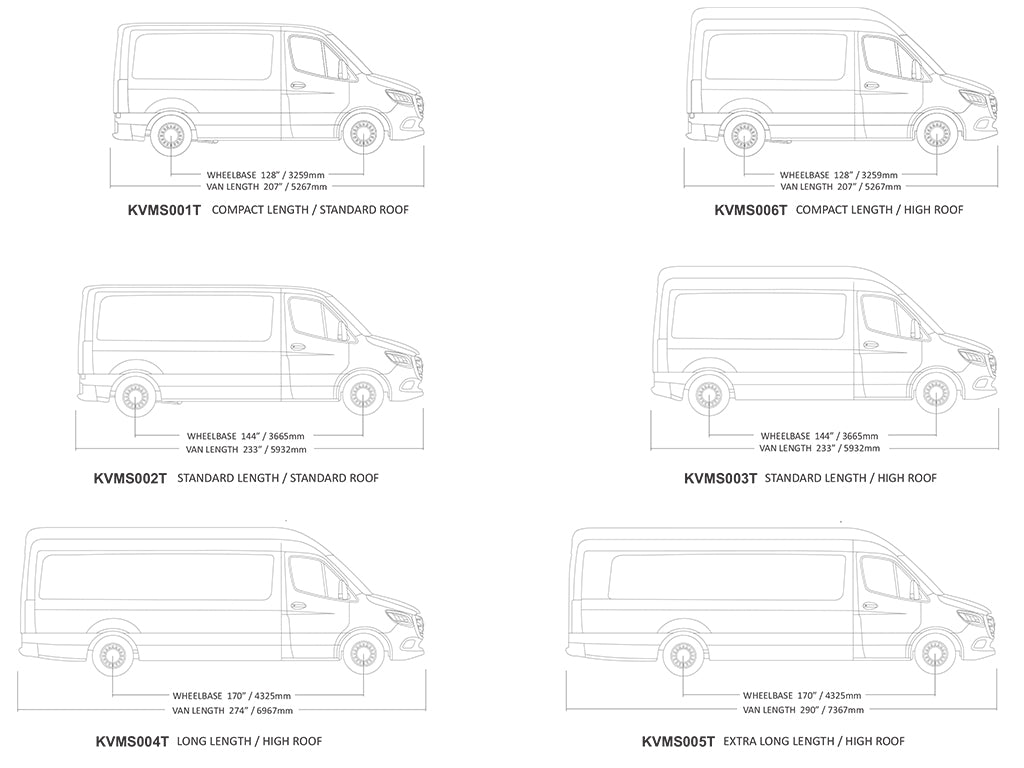

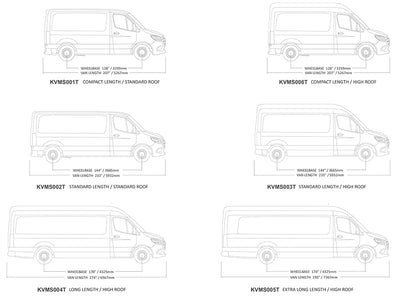

• • Compatible with Mercedes Benz Sprinter L1/H1 / 128"SWB standard roof vans with a vehicle length of 5267mm / 207.4".
  • Load carrying area: 2570mmL (101.2") x 1528mmW (60.2").

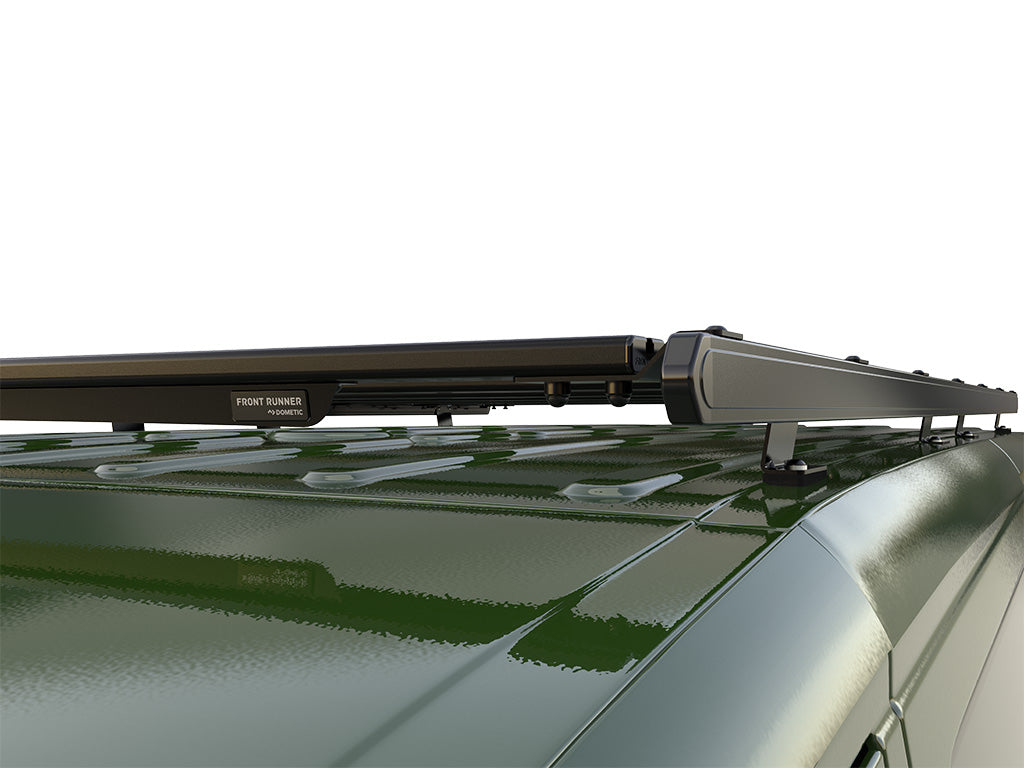

  • Eight (8) Mounting Feet secure into van's existing factory mounting points.
  • Included Slat Bracket can be inverted for a lower profile at 85mm (3.4") height, or left in standard configuration at 127mm (5").
  • Compatible with most Front Runner side mount accessories.
  • Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
  • Fitment guide and all mounting hardware are included. No drilling or modification required.
  • All Front Runner racks are backed by a limited lifetime warranty.*

• KVMS001T - Mercedes Benz Sprinter (L1H1/128" SWB/Standard Roof) (2007-Current) Slimpro Van Rack Kit - by Front Runner

  Consisting of:
  4x FAVF004 - Mercedes Sprinter Van Rack Foot Set
  1x RRAC207 - Van Rack Joiner Kit
  2x RRAC208 - Van Rack Side Profile End Caps
  2x RRAC940 - Merc Bens Sprinter Slimpro Van Track T-Bolt Kit
  4x RRNS1425 - Narrow Slat / 1425mm (Pair)
  1x SPVT001 - Van Rack Side Profile / 1156mm
  1x SPVT002 - Van Rack Side Profile / 1358mm
  1x WDST013 - Wind Deflector Van Rack 30mm Lip

  Material Used:
  Black epoxy powder - coated T6 aluminium
  High strength steel

  Assembled Rack Kit Dimensions:
  2570mm (101.2") L x 1528mm (60.2") W x 143mm (5.6") H

  Approximate Installed Weight: 15.1kg (33.29lbs)

  Shipping Dimensions:
  Width: 440mm (17")
  Length: 1720mm (68")
  Height: 160mm (6")

  Shipping Weight:
  Weight: 37kg (81lbs)

• Installation Instructions for KVMS001T (EN)



  View / Download

  • Language: EN
  • Filename: F_KVMS001T.pdf
  • Filesize: 3.35 M

  *A PDF viewer is required to view the fitting instructions.
