Front Runner

KVMS004T

Mercedes Benz Sprinter (L3H2/170in LWB/High Roof) (2007-Current) Slimpro Van Rack Kit

$2,068.00 $2,378.20 You Save 13% ($310.20)

• Description
• Specs
• Install
• Video

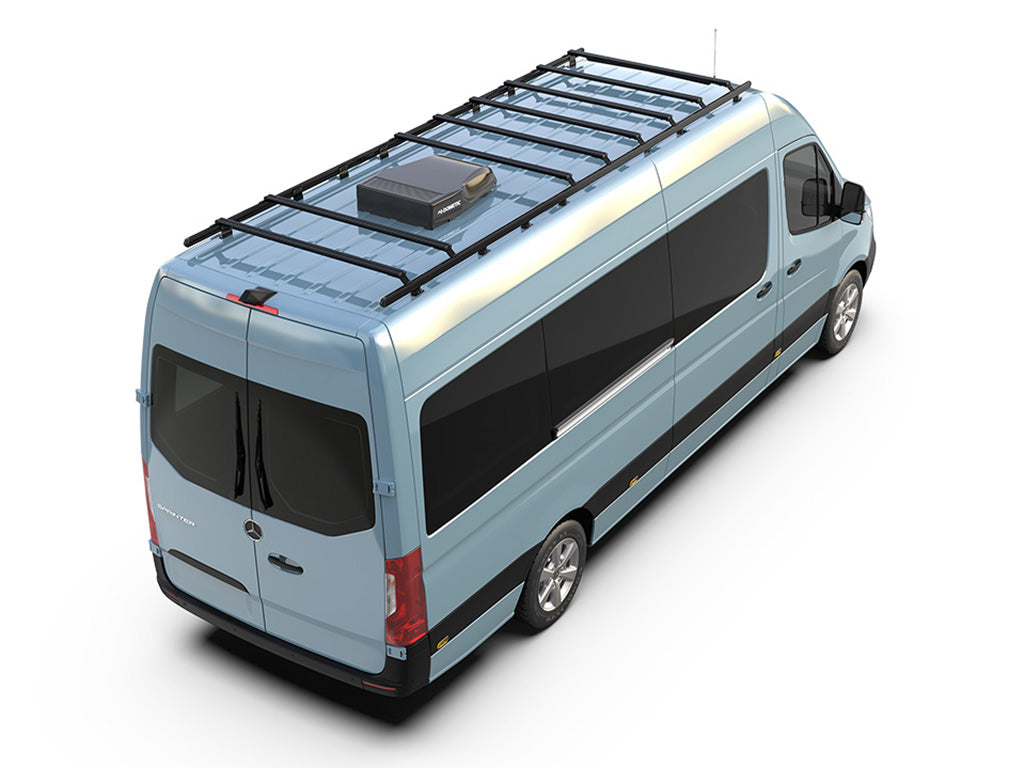

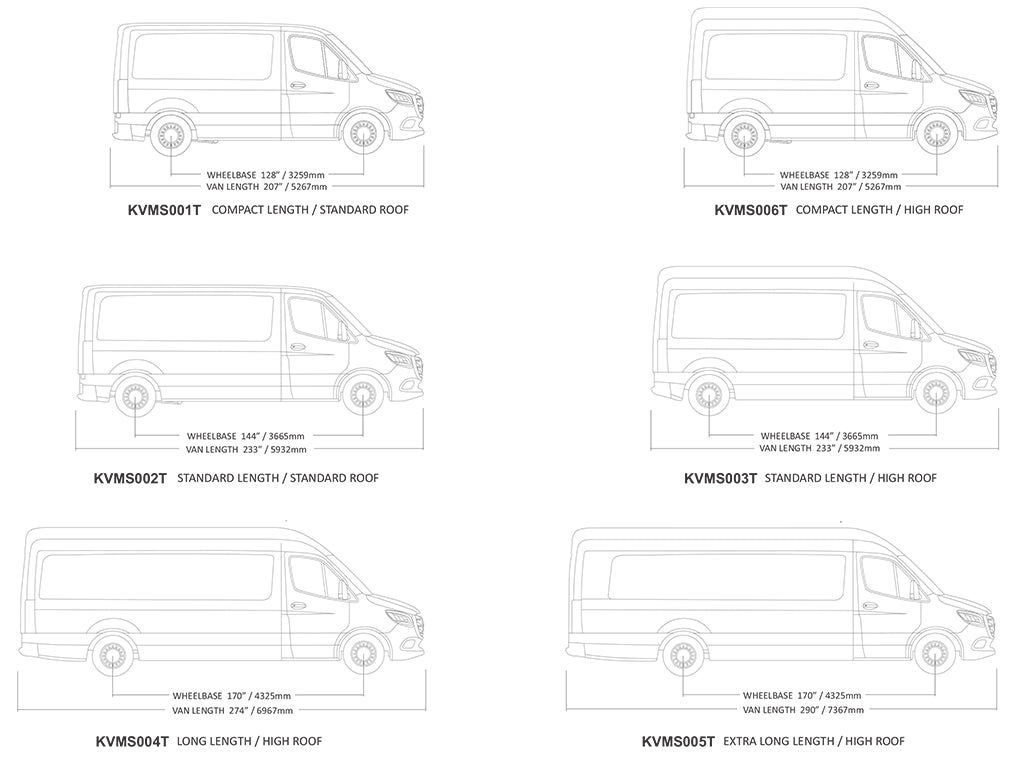

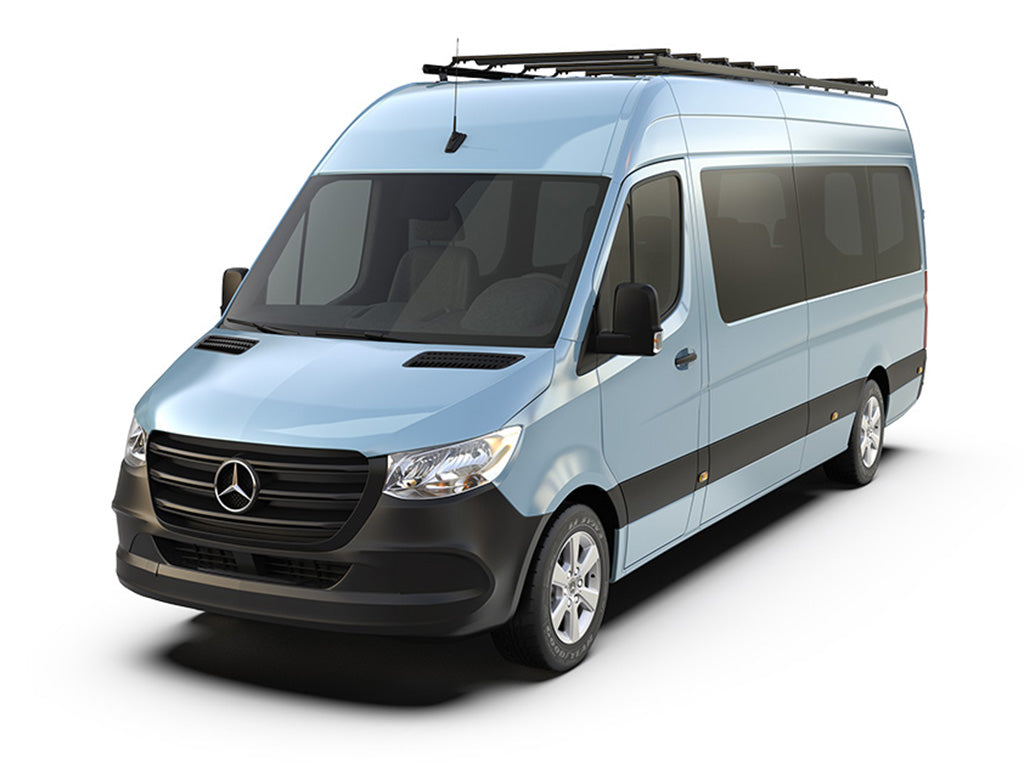

• • Compatible with Mercedes Benz Sprinter (L3H2/170" LWB) (2007 Current) high roof vans with a vehicle length of 6967mm / 274.3".
  • Load carrying area: 4130mm (162.6") x 1352mm (53.2").

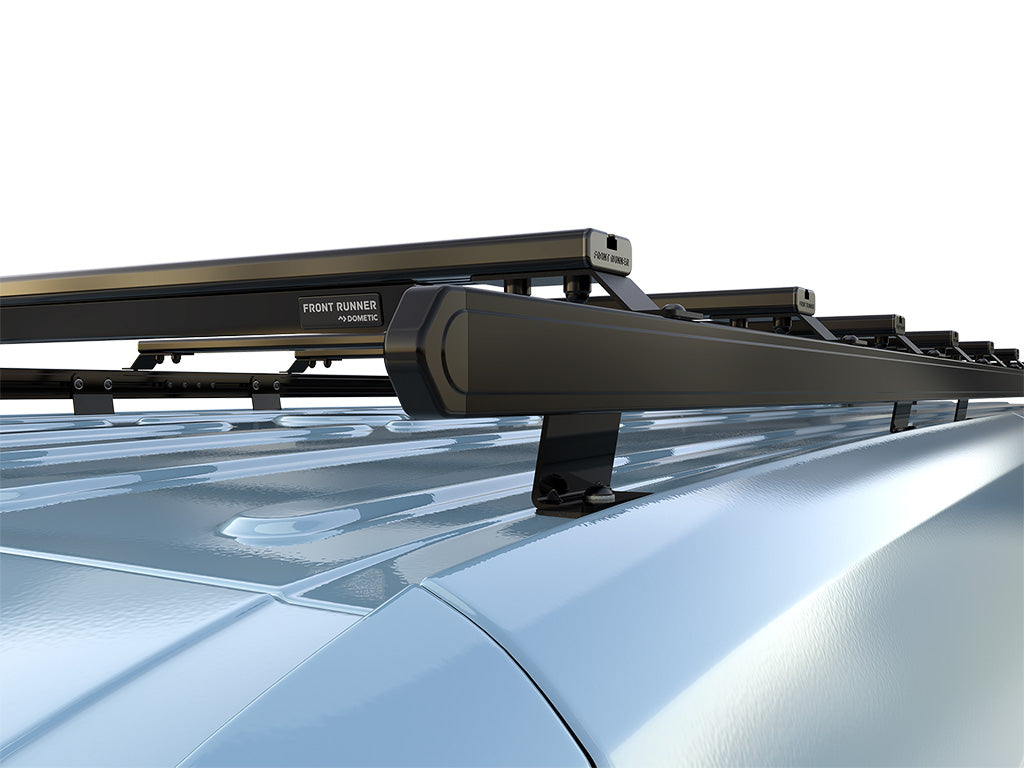

  • Fourteen (14) Mounting Feet secure into van's existing factory mounting points.
  • Included Slat Bracket can be inverted for a lower profile at 85mm (3.4") height, or left in standard configuration at 127mm (5").
  • Compatible with most Front Runner accessories.
  • Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
  • Fitment guide and all mounting hardware are included. No drilling or modification required.
  • All Front Runner racks are backed by a limited lifetime warranty.*

• KVMS004T - Mercedes Benz Sprinter (L3H2/170" LWB/High Roof) (2007-Current) Slimpro Van Rack Kit - by Front Runner

  Consisting of:
  7x FAVF004 - Mercedes Sprinter Van Rack Foot Set
  2x RRAC207 - Van Rack Joiner Kit
  2x RRAC208 - Van Rack Side Profile End Caps
  4x RRAC940 - Merc Bens Sprinter Slimpro Van Track T-Bolt Kit
  5x RRNS1255 - Narrow Slat / 1255mm (Pair)
  1x SPVT001 - Van Rack Side Profile / 1156mm
  1x SPVT002 - Van Rack Side Profile / 1358mm
  1x SPVT003 - Van Rack Side Profile / 1560mm
  1x WDST013 - Wind Deflector Van Rack 30mm Lip

  Material Used:
  Black epoxy powder - coated T6 aluminium
  High strength steel

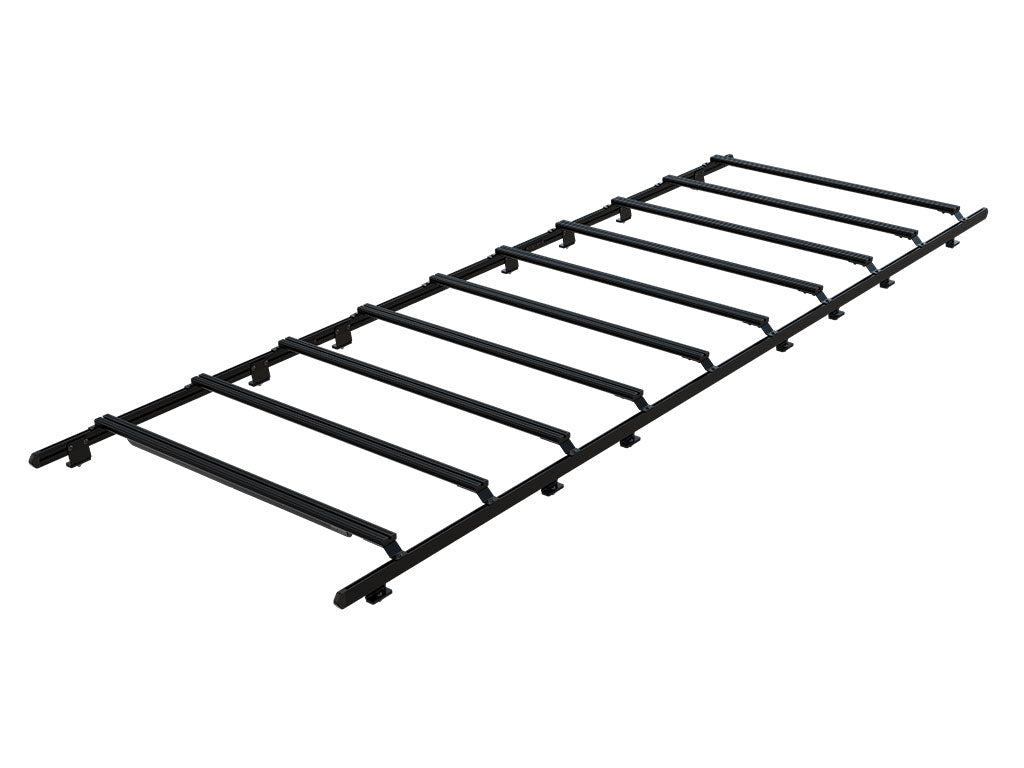

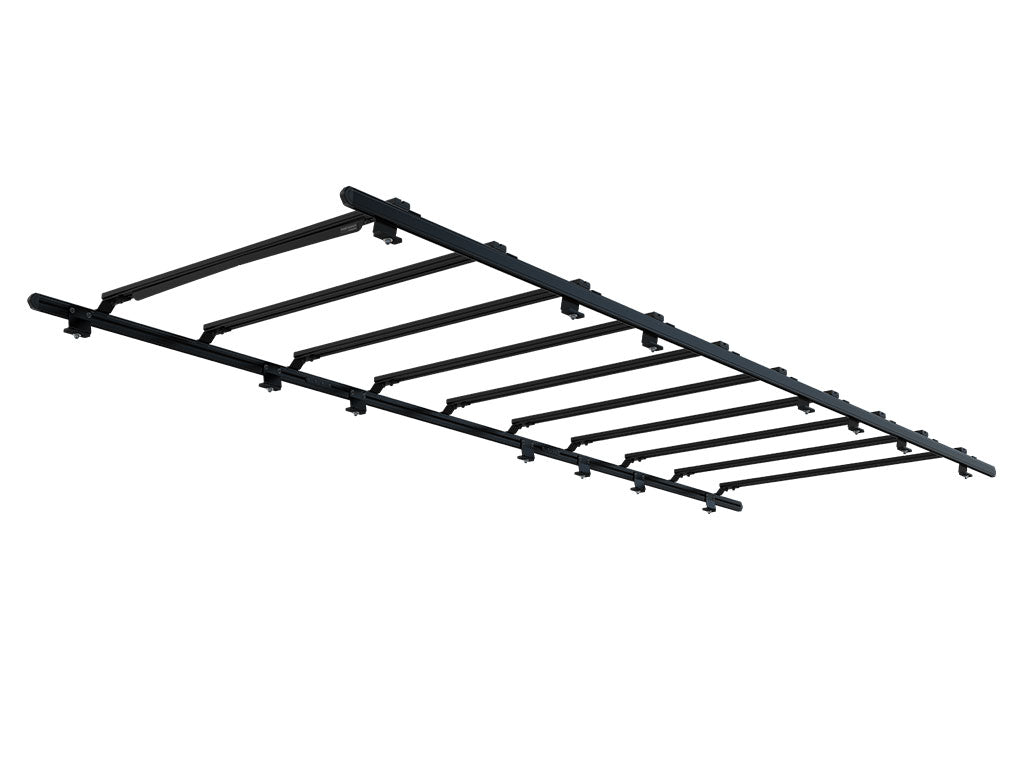

  Assembled Rack Kit Dimensions:
  4130mm (162.6") L x 1352mm (53.2") W x 143mm (5.6") H

  Approximate Installed Weight: 18.39kg (40.54lbs)

  Shipping Dimensions:
  Width: 440mm (17")
  Length: 1730mm (68")
  Height: 160mm (6")

  Shipping Weight:
  Weight: 47kg (103lbs)

• Installation Instructions for KVMS004T (EN)



  View / Download

  • Language: EN
  • Filename: F_KVMS004T.pdf
  • Filesize: 3.98 M

  *A PDF viewer is required to view the fitting instructions.
