Front Runner

KVRP003T

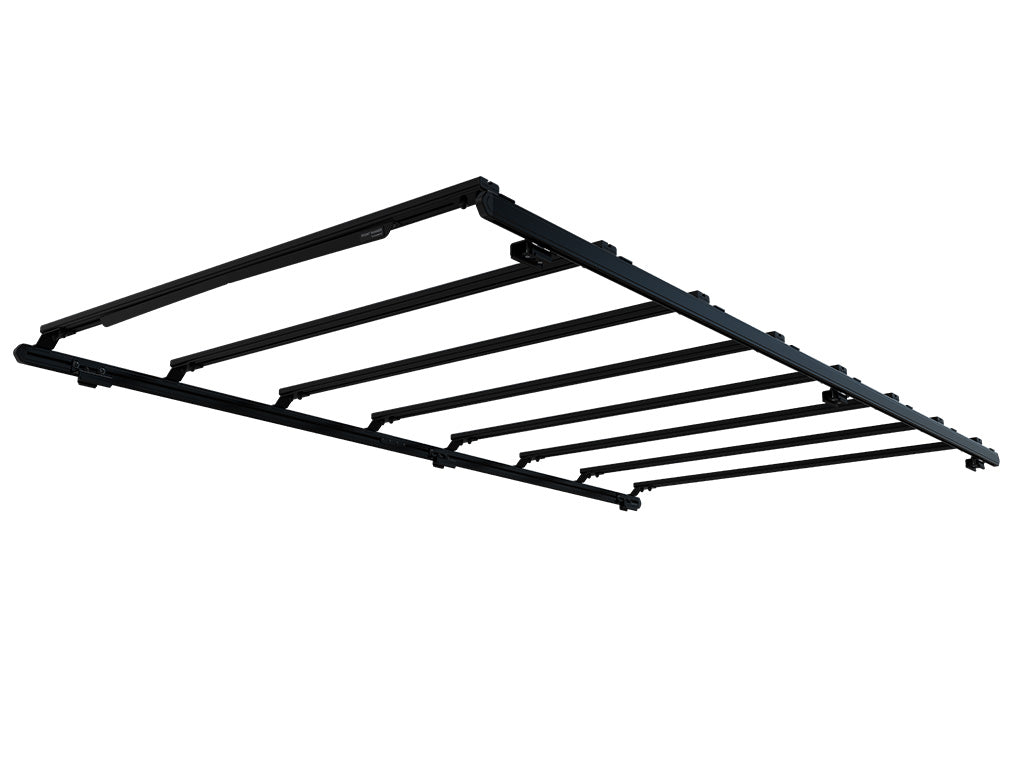

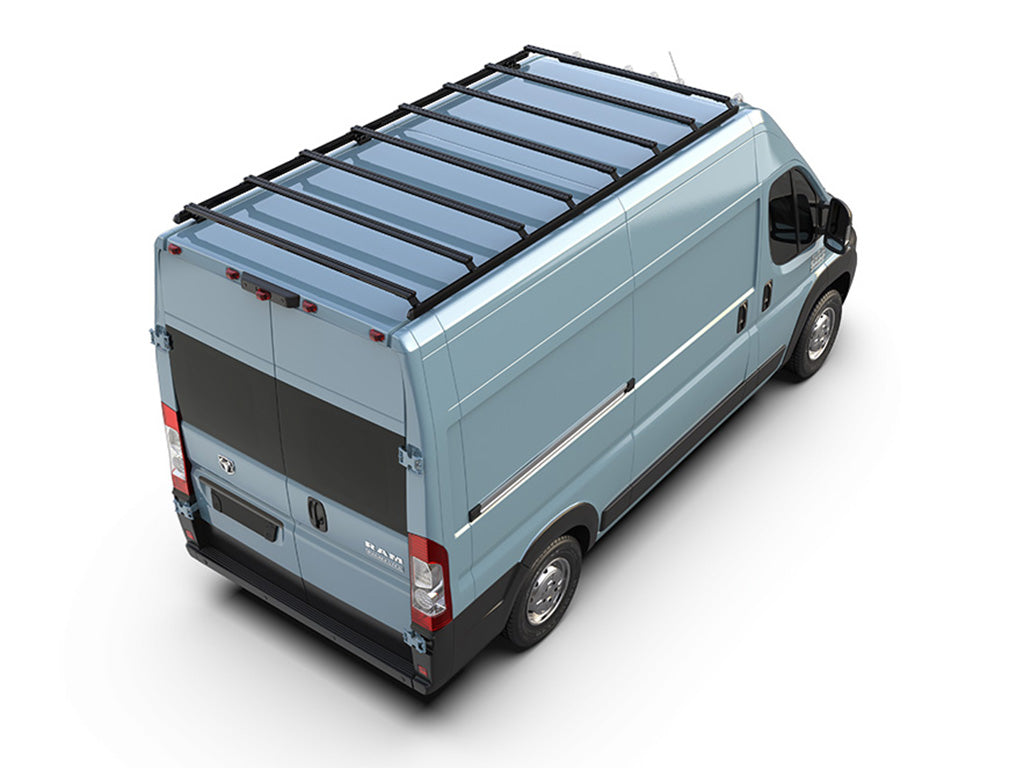

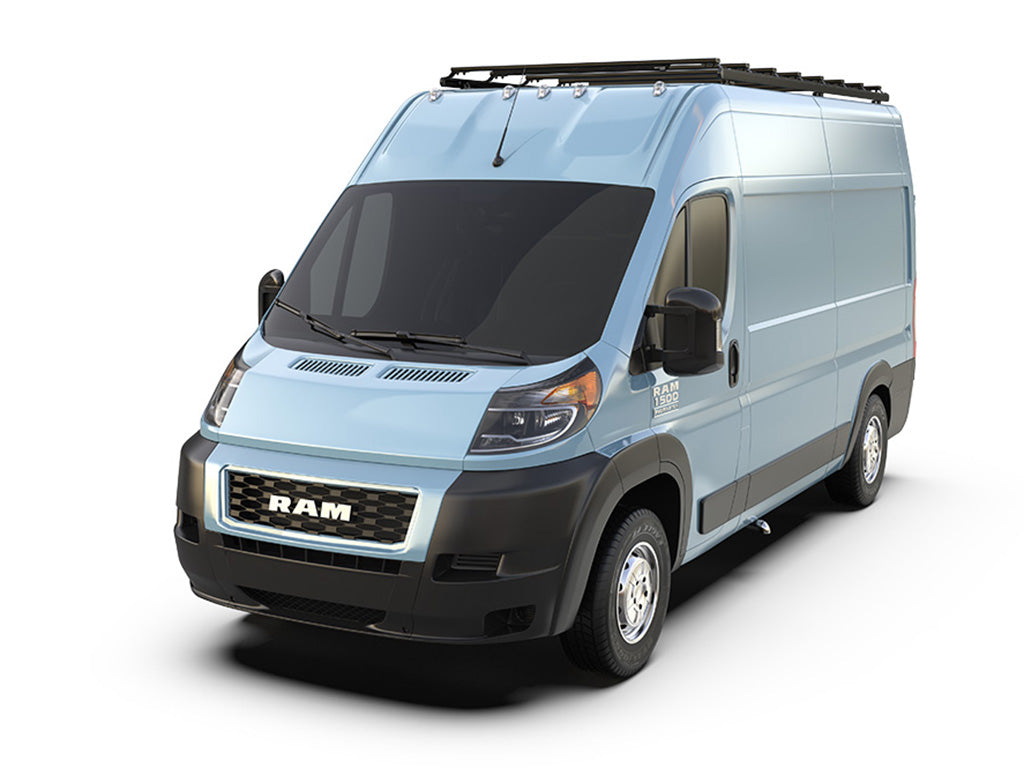

RAM Pro Master 1500 (136in WB/High Roof) (2014-Current) Slimpro Van Rack Kit

$1,741.00 $2,002.15 You Save 13% ($261.15)

• Description
• Specs
• Install
• Video

• • Compatible with RAM Pro Master 1500 (136" WB) (2014 Current)high roof vans with a vehicle length of 5427mm / 213.7".
  • Load carrying area: 2974mm (117.1") x 1565mm (61.6").

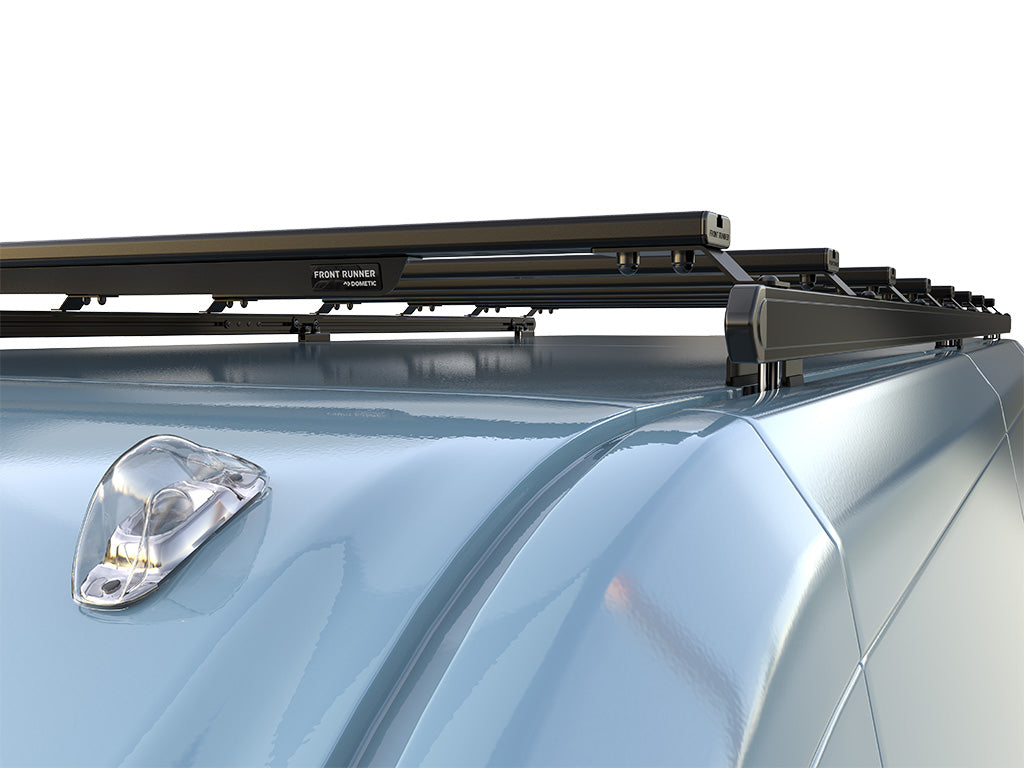

  • Six (6) Mounting Feet secure into van's existing factory mounting points.
  • Included Slat Bracket can be inverted for a lower profile at 85mm (3.4") height, or left in standard configuration at 127mm (5").
  • Compatible with most Front Runner accessories.
  • Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
  • Fitment guide and all mounting hardware are included. No drilling or modification required.
  • All Front Runner racks are backed by a limited lifetime warranty.*

• KVRP003T - RAM Pro Master 1500 (136" WB/High Roof) (2014-Current) Slimpro Van Rack Kit - by Front Runner




  Consisting of:
  3x FAVF002 - FPCR Foot Set - by Front Runner
  1x RRAC207 - Van Rack Joiner Kit
  2x RRAC208 - Van Rack Side Profile End Caps
  4x RRNS1475 - Narrow Slat / 1475mm (Pair)
  1x SPVT002 - Van Rack Side Profile / 1358mm
  1x SPVT003 - Van Rack Side Profile / 1560mm
  1x WDST013 - Wind Deflector Van Rack 30mm Lip




  Material Used:
  Black epoxy powder - coated T6 aluminium
  High strength steel

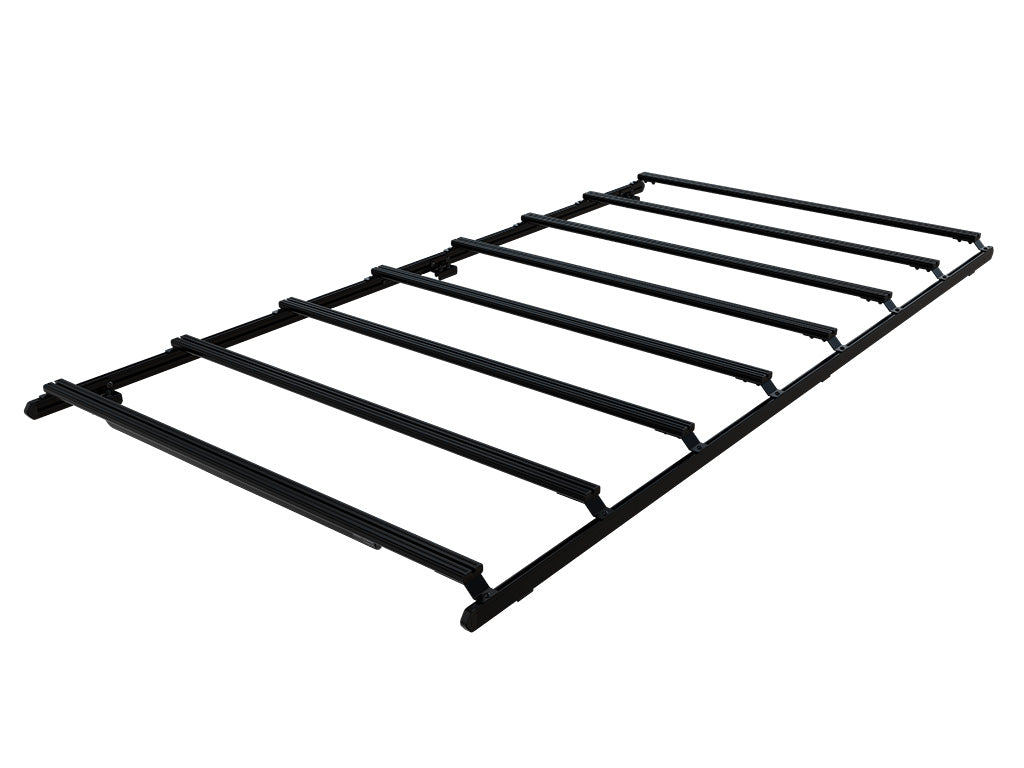

  Assembled Rack Kit Dimensions:
  2974mm (117.1") L x 1565mm (61.6") W x 127mm (5") H

  Approximate Installed Weight: 31.49kg (69.42lbs)




  RAM Pro Master Van Rack Kit heights are adjustable from 80mm (Z bracket inverted) to 130mm (Z bracket standard mounting) all measurements are taken from bottom of roof ditch to top of the rack slat.




  The slat T slots and side profiles take standard M8 hex bolts top and bottom.




  Shipping Dimensions:
  Width: 300mm (12")
  Length: 1805mm (71")
  Height: 195mm (8")

  Shipping Weight:
  Weight: 35.35kg (78lbs)

• Installation Instructions for KVRP003T (EN)



  View / Download

  • Language: EN
  • Filename: F_KVRP003T.pdf
  • Filesize: 2.43 M

  *A PDF viewer is required to view the fitting instructions.
