Front Runner Outfitters

RRAC103

Recovery Device AND Gear Holding Side Brackets

$174.00

• Description
• Specs
• Install
• Video

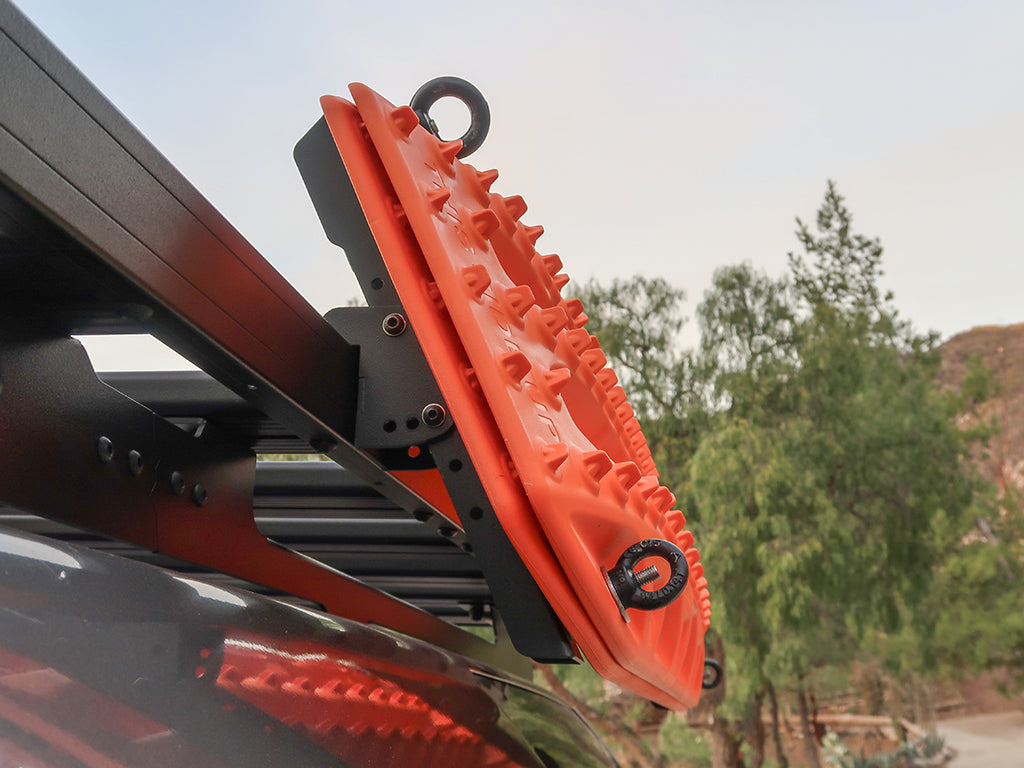

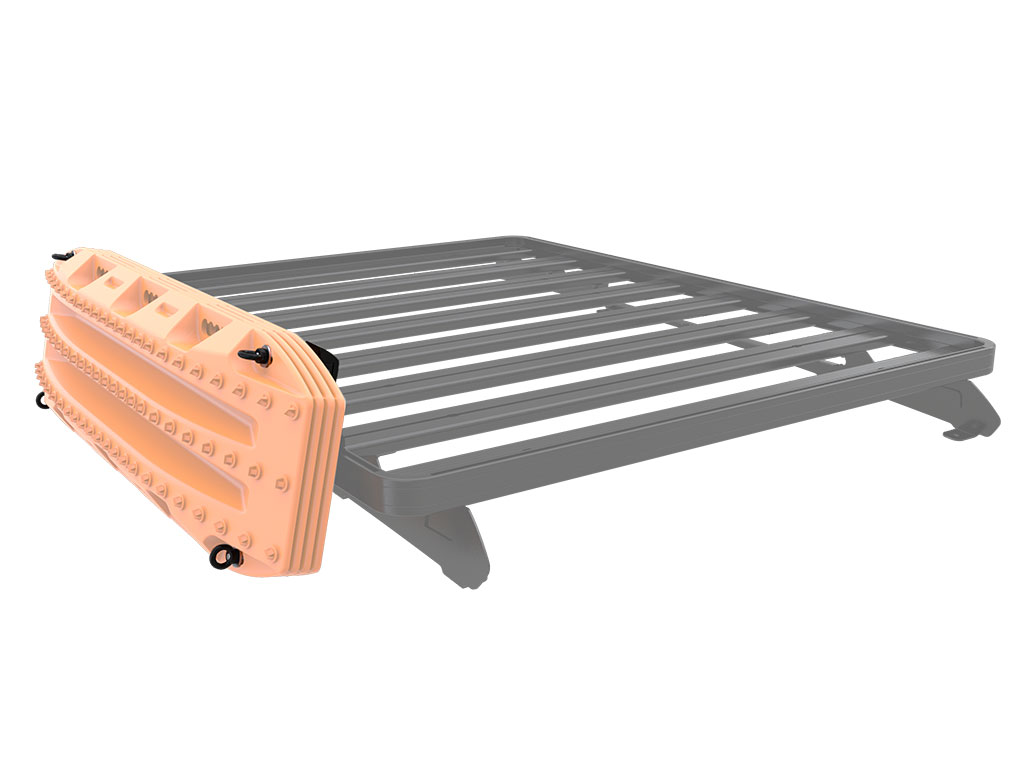

• • These off road tough brackets securely mount MAXTRAX, TRED Pro and other similar hole spacing recovery devices to the side profile of a Front Runner Slimline II Rack.
  • Also use for mounting the Pro Ski, Snowboard & Fishing Rod Carrier (sold separately).
  • Adjustable in height and angle to compliment various vehicle profiles.
  • Includes 2 types of bolts for holding either 1 or 2 pairs of MAXTRAX/TRED Pro.

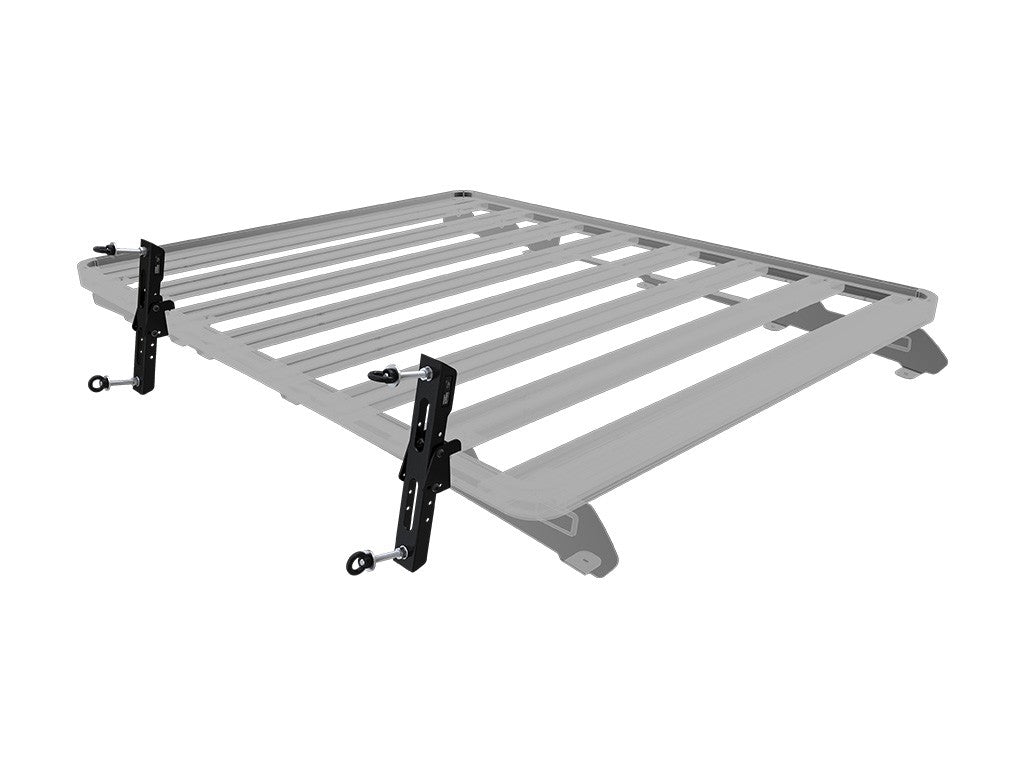

  • Built to mount to the side profiles of a Slimline II roof rack but are also compatible with the original Slimline rack.
  • Finished with the same durable, weather resistant black powder coating as the Slimline II Rack.
  • The included bolts can be substituted with the MAXTRAX Mounting Pin Set (sold separately) to lock MAXTRAX in place.

  Note: MAXTRAX Mounting Pin Set XTREME is required when mounting 2 pairs of MAXTRAX EXTREME.
  Note: This product is not compatible with Slimsport rack kit range.

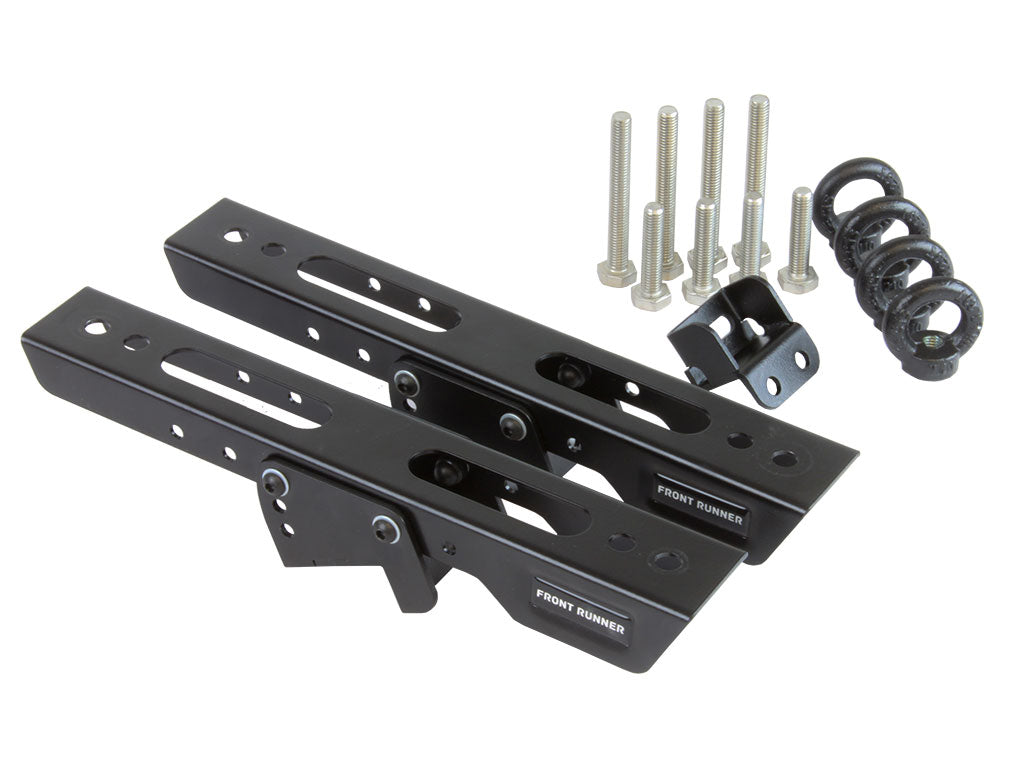

• Consists of:

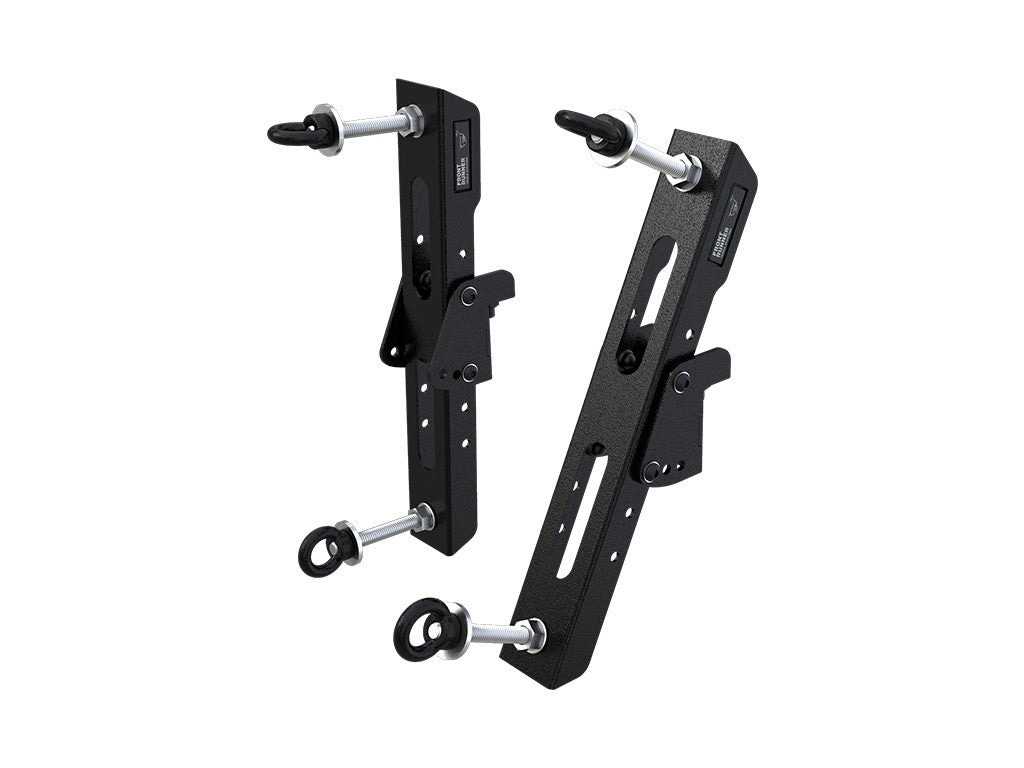

  2 x Adjustable Brackets
  Installation Hardware
  Fitting Instructions




  Materials used:
  Black powder coated high strength steel
  Stainless steel fasteners




  Product Dimensions:
  313mm (12.3") L x 65mm (2.6") W x 178mm (7") H (Per Single Bracket)




  Between Stud Mounting Dimensions:
  230mm Inner hole centers
  270mm Outer hole centers




  Weight:
  4.4kg (9.7lbs) (Per Pair)

• Installation Instructions for RRAC103 (EN)



  View / Download

  • Language: EN
  • Filename: F_RRAC103.pdf
  • Filesize: 1.07 M

  *A PDF viewer is required to view the fitting instructions.
